HRC216 K2 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1000001 - MAJA-1009999) FAN COVER (HRC216K2) (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

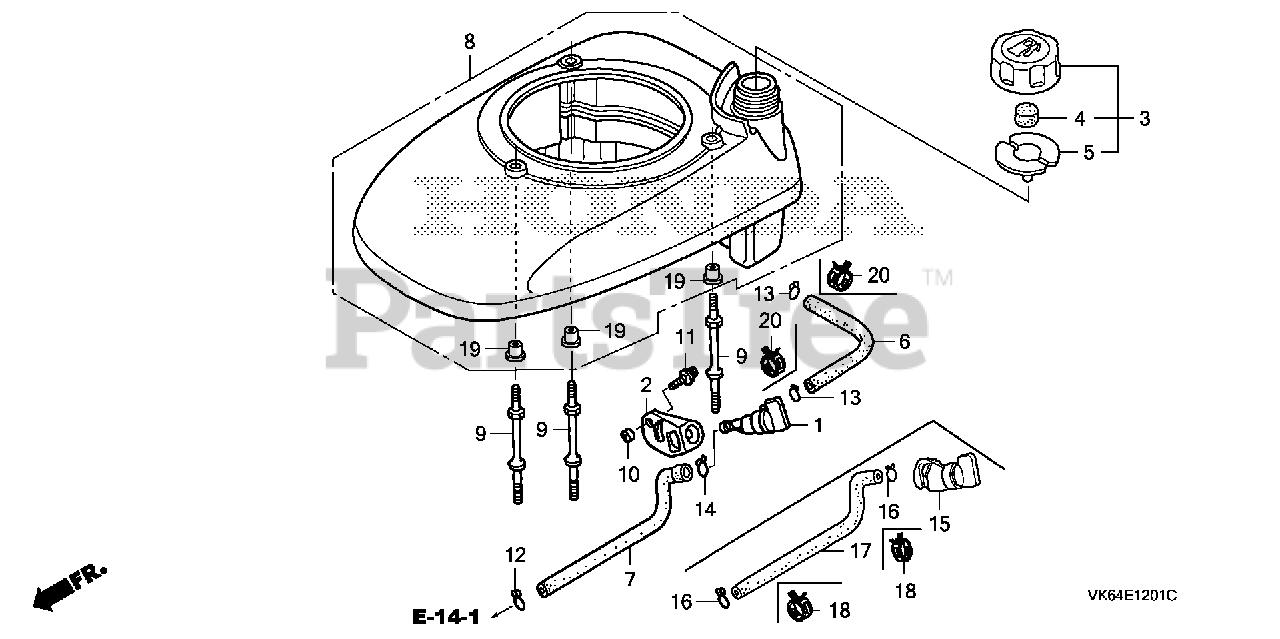

FAN COVER (HRC216K2) (PDA) Parts Diagram

  • Title

1

Honda 16950-ZG9-M03

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 7357379).
(Superseded to 04103-Z0L-000)

Note: Use up to Engine SN 1004399.

$47.99

$

Usually ships in 3-6 days

0

2

Honda 16956-ZG9-M00

SEE PART DETAILS - SUP; BRACKET, PETCOCK
(Superseded to 16956-ZM0-000)

Note: Use up to Engine SN 1004399.

$2.99

$

In Stock, only 1 left!

0

3

Honda 17620-ZL8-013

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 6673289).
(Superseded to 17620-ZL8-023)

$5.99

$

In Stock, Qty 16

0

4

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

$1.99

$

Usually ships in 3-6 days

0

5

Honda 17624-ZL8-013

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$2.99

$

In Stock, Qty 8

0

6

Honda 17701-Z0L-000

TUBE, FUEL TANK (Honda Code 6754279).

Note: Use up to Engine SN 1004399.

$3.99

$

In Stock, only 1 left!

0

6

Honda 91425-Z0L-801

TUBE, FUEL (5.3X150) (FKM)

Note: Use from Engine SN 1010186.

$

$

Not available

6

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

Note: Use from Engine SN 1004400 to 1010185.

$70.99

$

In Stock, only 1 left!

0

7

Honda 17702-ZM0-000

TUBE, FUEL (Honda Code 5580469).

Note: Use up to Engine SN 1004399.

$9.99

$

In Stock, only 2 left!

0

8

Honda 06196-Z0L-J00ZB

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED)

$171.99

$

Usually ships in 3-6 days

0

8

Honda 19610-Z0L-J00ZB

SEE PART DETAILS - SUP; COVER, FAN *R280* (POWER RED)
(Superseded to 06196-Z0L-J00ZB)

$171.99

$

Usually ships in 3-6 days

0

9

Honda 90043-ZL8-000

BOLT, STUD (Honda Code 5581004).

$4.49

$

In Stock, Qty 6

0

10

Honda 91501-Z0L-800

COLLAR, FUEL PETCOCK (Honda Code 6978399).

$1.99

$

In Stock, only 1 left!

0

11

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).

$1.49

$

In Stock, Qty 5

0

12

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1004399.

$2.49

$

In Stock, only 4 left!

0

13

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Engine SN 1010185.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9) (Honda Code 0053447).

Note: Use up to Engine SN 1004399.

$1.99

$

In Stock, only 2 left!

0

15

Honda 16950-ZM0-003

PETCOCK ASSY. (Honda Code 7425770).

Note: Use from Engine SN 1004400.

$9.49

$

In Stock, only 3 left!

0

16

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use from Engine SN 1004400 to 1010185.

$2.49

$

In Stock, only 4 left!

0

17

Honda 17702-ZM0-800

TUBE, FUEL (Honda Code 7425804).

Note: Use from Engine SN 1004400 to 1010185.

$9.49

$

In Stock, Qty 5

0

17

Honda 17702-Z0L-802

TUBE, FUEL (FKM)
(Superseded to 17702-Z8B-802)

Note: Use from Engine SN 1010186.

$21.99

$

In Stock, only 3 left!

0

18

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1010186.

$2.99

$

In Stock, Qty 8

0

19

Honda 19619-ZL8-300

COLLAR, FAN COVER (Honda Code 5580527). (N/A: SEE ASSEMBLY)

$1.49

$

In Stock, Qty 20+

0

20

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Engine SN 1010186.

$3.49

$

In Stock, Qty 12

0
