HRC216 K2 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1000001 - MAJA-1009999) CYLINDER (PDA) Parts Diagram
21" Walk-Behind Mower, Made in USA

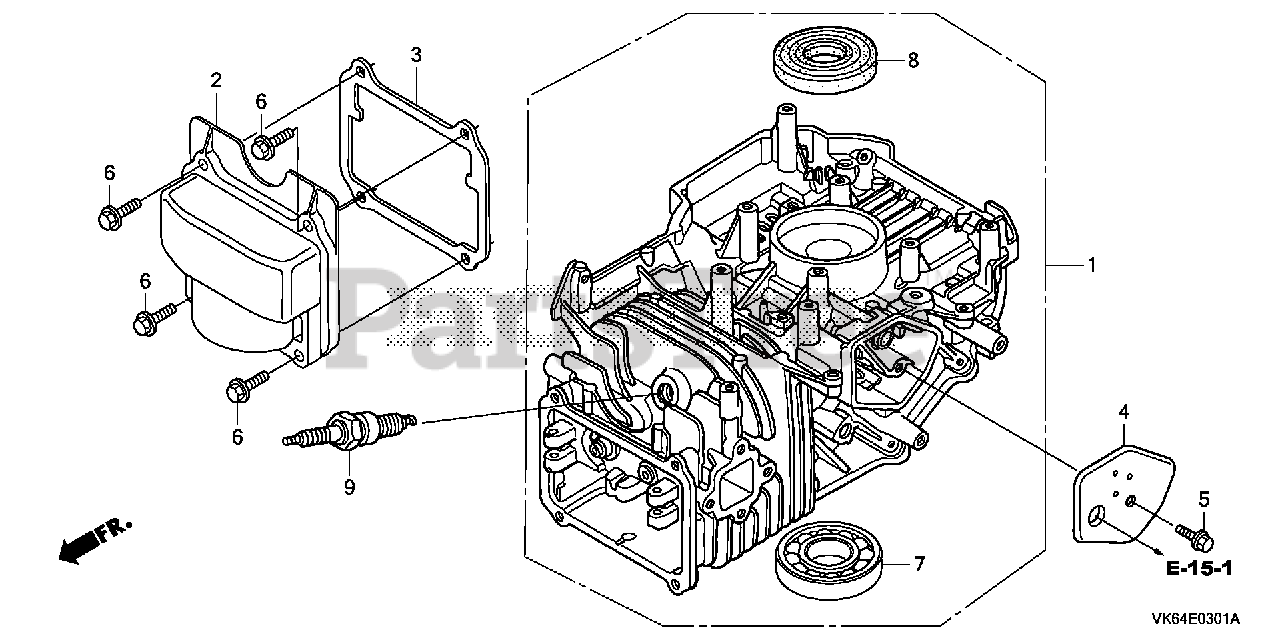

CYLINDER (PDA) Parts Diagram
Honda 12000-Z2A-0100
SEE PART DETAILS - PRI; CYLINDER ASSY.
$62.99
$
Usually ships in 3-6 days
Honda 12311-Z2A-000
COVER, CYLINDER HEAD
$24.99
$
In Stock, only 3 left!
Honda 12312-Z2A-000
GASKET, HEAD COVER
$7.49
$
In Stock, Qty 10
Honda 12355-ZL8-000
COVER, BREATHER (Honda Code 5580006). (BREATHER VALVE ASSY.)
$9.49
$
In Stock, Qty 5
Honda 90014-952-000
BOLT, FLANGE (6X14) (Honda Code 0803619).
$2.99
$
In Stock, only 3 left!
Honda 90121-952-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.
$2.99
$
In Stock, Qty 20+
Honda 91001-894-004
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (Honda Code 0821124).
$22.99
$
Usually ships in 3-6 days
Honda 91201-Z2A-003
OIL SEAL (25.4X74X6)
$18.99
$
Usually ships in 3-6 days
Honda 98079-56846
SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).
$3.49
$
In Stock, Qty 20+
