HRC216 K2 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1000001 - MAJA-1009999) CRANKSHAFT@PISTON (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

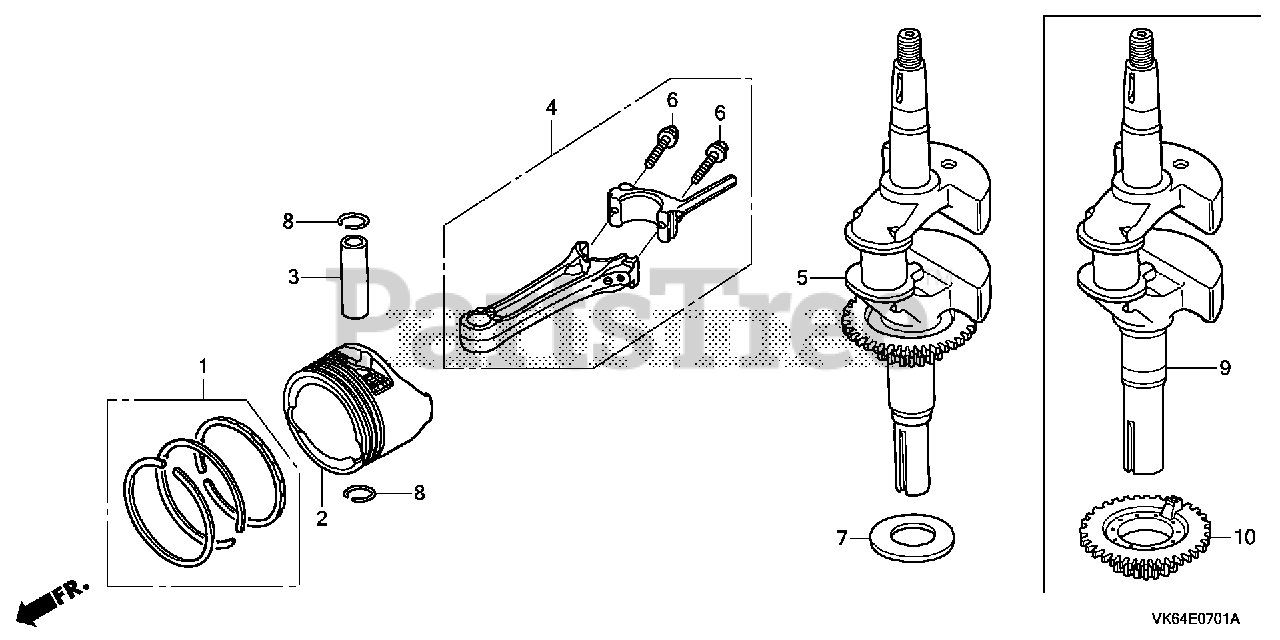

CRANKSHAFT@PISTON (PDA) Parts Diagram

  • Title

1

Honda 13010-Z2A-004

RING SET, PISTON (STD) (TEIKOKU)

Note: Use up to Engine SN 1010185.

$38.99

$

Usually ships in 3-6 days

0

1

Honda 13010-Z2A-014

RING SET, PISTON (STD) (TPR)

Note: Use from Engine SN 1010186.

$15.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z2A-000

PISTON (Honda Code 7595705).

Note: Use up to Engine SN 1010185.

$47.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z8A-900

PISTON

Note: Use from Engine SN 1010186.

$31.99

$

In Stock, only 2 left!

0

2

Honda 13101-Z8B-820

SEE PART DETAILS - PRI; PISTON
(Superseded to 13101-Z8A-900)

Note: Use from Engine SN 1010186.

$31.99

$

In Stock, only 2 left!

0

3

Honda 13111-ZE0-000

PIN, PISTON (Honda Code 1426576).

$7.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZL8-000

ROD ASSY., CONNECTING (Honda Code 5580022).

Note: Use up to Engine SN 1008481.

$61.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0J-000

ROD ASSY., CONNECTING
(Superseded to 13200-ZDS-000)

Note: Use from Engine SN 1008482.

$20.99

$

Usually ships in 3-6 days

0

5

Honda 06131-Z8B-W40

CRANKSHAFT KIT(N4

$94.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZM0-620

CRANKSHAFT
(Superseded to 06131-Z8B-W40)

$94.99

$

In Stock, only 1 left!

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

7

Honda 90402-ZL8-000

WASHER, THRUST (Honda Code 5581012).

$2.49

$

In Stock, only 1 left!

0

8

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, Qty 20+

0
