HRC216 K2 PDA (MAJA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAJA-1000001 - MAJA-1009999) CONTROL (PDA) Parts Diagram

21" Walk-Behind Mower, Made in USA

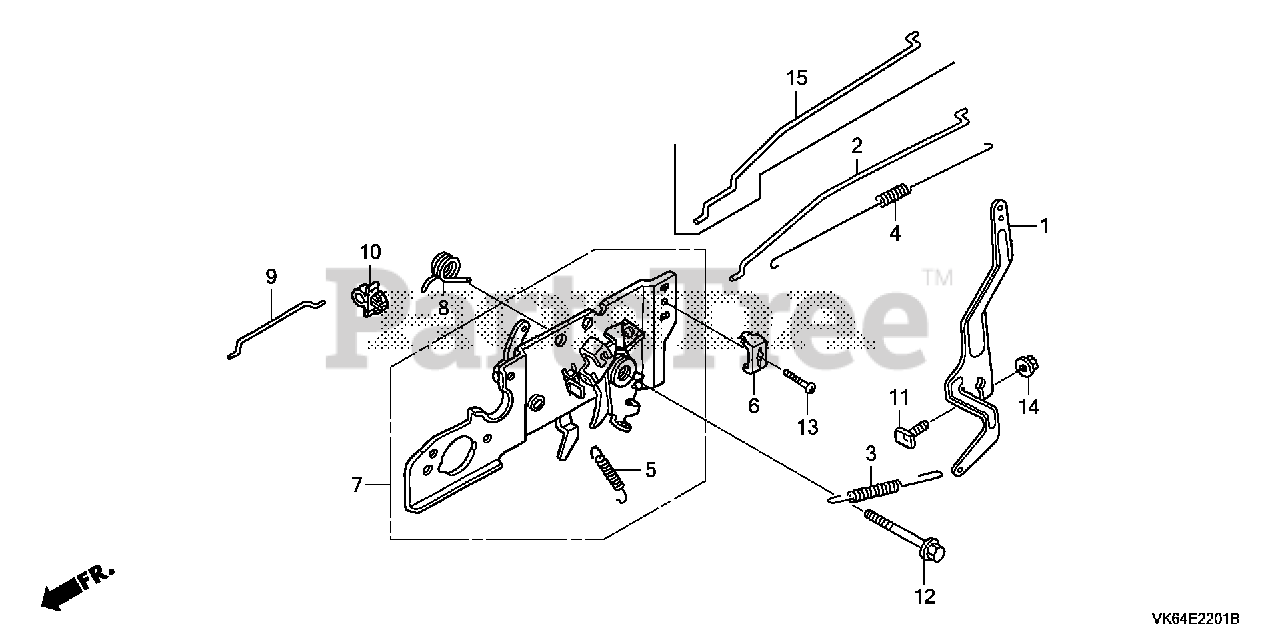

CONTROL (PDA) Parts Diagram

  • Title

1

Honda 16551-ZM0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

$7.49

$

In Stock, only 1 left!

0

2

Honda 16555-ZM0-000

ROD, GOVERNOR

$5.49

$

In Stock, only 1 left!

0

3

Honda 16561-Z0L-000

SPRING, GOVERNOR

$1.99

$

In Stock, Qty 6

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

$3.49

$

In Stock, Qty 9

0

5

Honda 16576-ZE7-300

SPRING, LEVER

$4.99

$

In Stock, only 1 left!

0

6

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 16580-ZM1-J02

SEE PART DETAILS - PRI; BASE, CONTROL

$30.99

$

Usually ships in 3-6 days

0

8

Honda 16593-ZM0-000

SPRING, CONTROL LEVER RETURN

$4.99

$

In Stock, only 2 left!

0

9

Honda 16674-ZM0-000

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

10

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

$8.49

$

In Stock, only 1 left!

0

11

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

12

Honda 90016-ZM0-000

BOLT, FLANGE (6X45) (CT200)

$1.99

$

In Stock, Qty 5

0

13

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 16555-Z0L-800

SEE PART DETAILS - SUP; ROD, GOVERNOR
(Superseded to 16555-Z0L-801)

$0.99

$

In Stock, only 2 left!

0

15

Honda 16555-Z0L-801

SEE PART DETAILS - PRI; ROD, GOVERNOR

$0.99

$

In Stock, only 2 left!

0
