HRC216 K2 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1000001 - MAKA-1049999) HANDLEBAR (HXA, HXC) Parts Diagram

21" Walk-Behind Mower, Made in USA

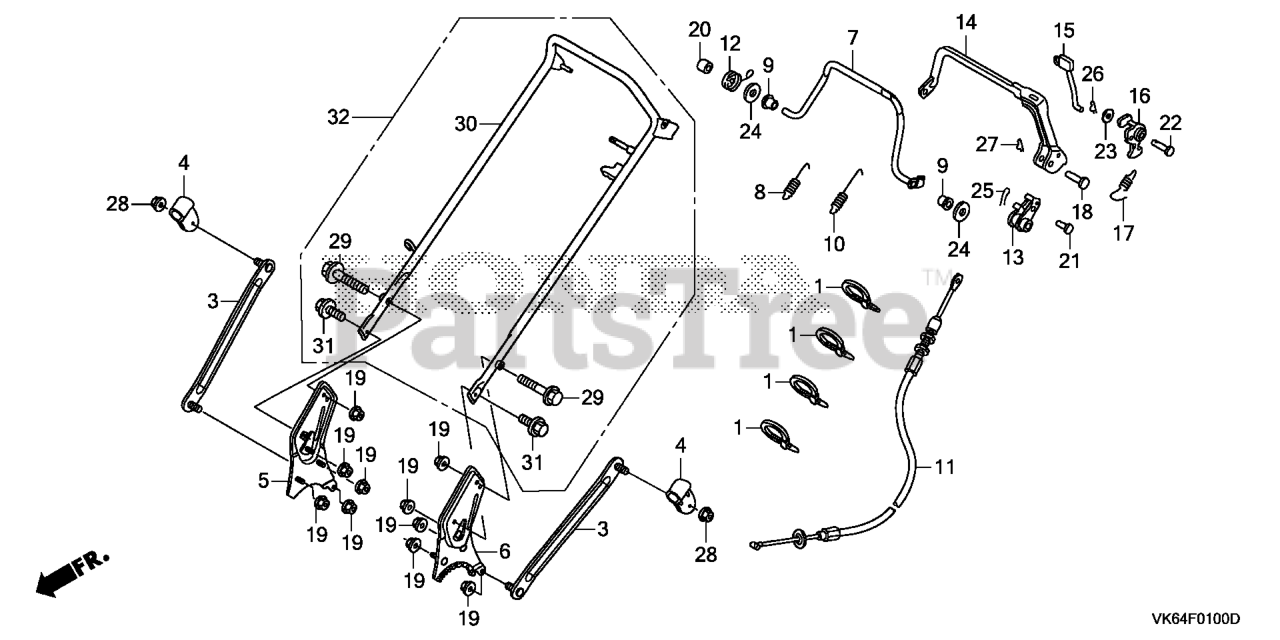

HANDLEBAR (HXA, HXC) Parts Diagram

  • Title

1

Honda 32901-VK6-000

TIE, CABLE

$1.49

$

Usually ships in 3-6 days

0

3

Honda 53118-VK6-000

PLATE, HANDLE SUPPORT

$19.99

$

In Stock, only 2 left!

0

4

Honda 53119-VK6-000

HANGER, HANDLE SUPPORT

$5.49

$

In Stock, only 2 left!

0

5

Honda 53130-VK6-000

STAY, R. HANDLE

$18.99

$

In Stock, only 2 left!

0

6

Honda 53135-VK6-000

STAY, L. HANDLE

$18.99

$

In Stock, only 2 left!

0

7

Honda 54410-VE1-R00

LEVER, CLUTCH

$

$

Not available

8

Honda 54411-VA3-J00

SPRING, CLUTCH

$6.99

$

Usually ships in 3-6 days

0

9

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, only 2 left!

0

10

Honda 54414-VA3-P00

SPRING, CLUTCH LEVER RETURN

$4.99

$

In Stock, only 1 left!

0

11

Honda 54530-VK6-003

CABLE, ROTO-STOP

$30.99

$

In Stock, only 1 left!

0

12

Honda 75118-VA3-J00

SPRING, R. STOP RETURN

$5.99

$

In Stock, only 4 left!

0

13

Honda 75128-VE1-R00

ARM, ROTO-STOP CABLE

$8.49

$

In Stock, only 1 left!

0

14

Honda 75161-VE0-L01

SEE PART DETAILS - PRI; LEVER, ROTO-STOP

$58.99

$

In Stock, only 1 left!

0

14

Honda 75161-VE0-305

SEE PART DETAILS - PRI; LEVER, ROTO-STOP (FOR U.S.A.)(COO)
(Superseded to 75161-VE0-L01)

$58.99

$

In Stock, only 1 left!

0

14

Honda 75161-VE0-L00

SEE PART DETAILS - SUP; LEVER, ROTO-STOP
(Superseded to 75161-VE0-305)

$58.99

$

In Stock, only 1 left!

0

15

Honda 75165-VE0-L00

ROD, RATCHET PUSH

$8.49

$

In Stock, only 1 left!

0

16

Honda 75166-VE1-R00

LEVER, LOCK

$8.99

$

In Stock, Qty 5

0

17

Honda 75168-VA4-000

SPRING, RATCHET RETURN

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90106-VA4-800

PIN, CLUTCH LEVER

$11.99

$

Usually ships in 3-6 days

0

19

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

20

Honda 90552-VA3-J00

COLLAR (8X11X13.5)

$3.99

$

In Stock, only 1 left!

0

21

Honda 90751-VK6-000

PIN, CABLE JOINT

$7.49

$

In Stock, only 1 left!

0

22

Honda 90753-VA3-J00

PIN, LOCK LEVER HINGE (6X30)

$4.99

$

In Stock, Qty 8

0

23

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 5

0

24

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

25

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

26

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 11

0

27

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

28

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

29

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 6

0

30

Honda 53110-VK6-020ZA

PIPE, HANDLE *NH105* (MAT BLACK)

Note: Use from Frame SN 1040173.

$332.99

$

Usually ships in 3-6 days

0

31

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use from Frame SN 1040173.

$2.49

$

In Stock, Qty 7

0

31

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

Note: Use up to Frame SN 1040172.

$1.99

$

In Stock, Qty 6

0

32

Honda 04531-VK6-315

SEE PART DETAILS - PRI; PIPE KIT, HANDLE

Note: Use up to Frame SN 1040172.

$193.99

$

Usually ships in 3-6 days

0
