HRC216 K2 HXA (MAKA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAKA-1000001 - MAKA-1049999) FAN COVER (HRC216K2) (HXA, HXC) Parts Diagram

21" Walk-Behind Mower, Made in USA

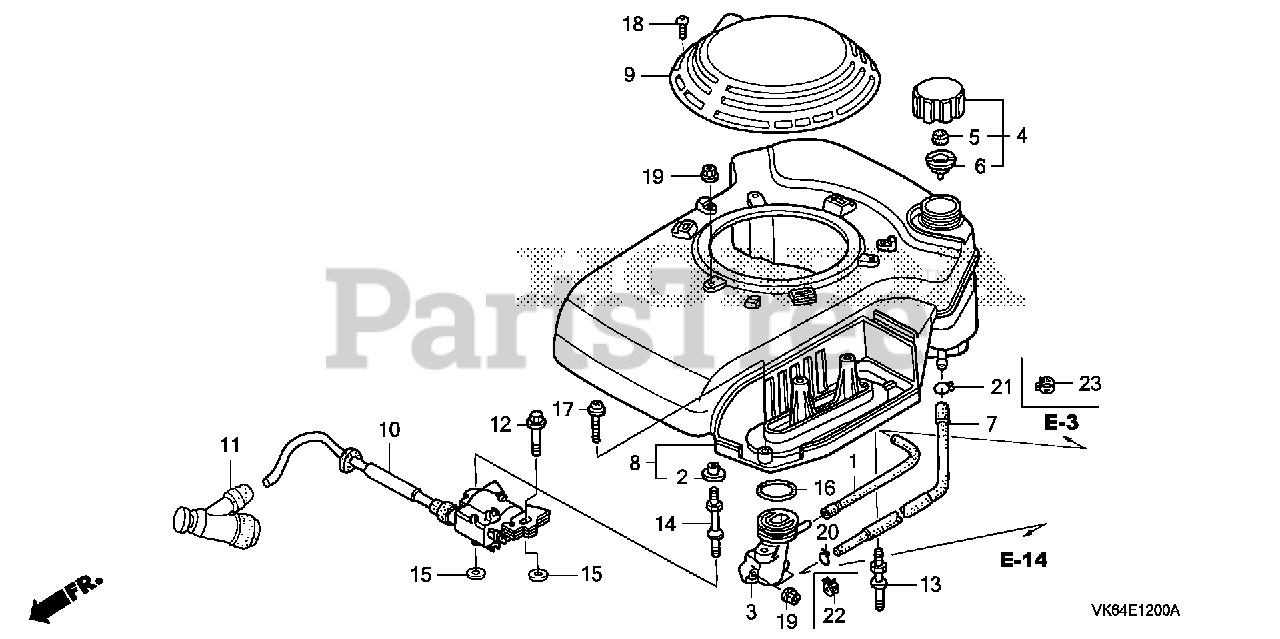

FAN COVER (HRC216K2) (HXA, HXC) Parts Diagram

  • Title

1

Honda 15721-ZE7-000

TUBE, BREATHER

$11.99

$

In Stock, only 2 left!

0

2

Honda 17216-PE2-003

COLLAR, AIR CLEANER (TOYO ROKI)

$8.99

$

Usually ships in 3-6 days

0

3

Honda 17410-ZE7-W00

ELBOW, AIR CLEANER

$32.99

$

In Stock, only 2 left!

0

4

Honda 17620-ZE7-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 2289833).
(Superseded to 17620-ZG9-000)

$12.99

$

In Stock, only 1 left!

0

4

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 3307378).

$12.99

$

In Stock, only 1 left!

0

5

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

6

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 2507689).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZE7-W00

TUBE ASSY., FUEL TANK

Note: Use up to Engine SN 1067338.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 17700-Z4R-W00

TUBE ASSY., FUEL TANK (FKM)

Note: Use from Engine SN 1067339.

$9.99

$

Usually ships in 3-6 days

0

8

Honda 19610-ZE7-W01ZC

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED)

$

$

Not available

9

Honda 19615-ZG9-801ZE

HOOD, FAN COVER *R280* (GRAINED FINISH) (POWER RED)

$41.99

$

Usually ships in 3-6 days

0

10

Honda 30500-ZE7-063

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$91.99

$

In Stock, only 1 left!

0

11

Honda 30700-ZE6-023

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3808649).

$24.99

$

Usually ships in 3-6 days

0

12

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, only 3 left!

0

13

Honda 90041-ZE7-W00

BOLT A, STUD

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90042-ZE7-W00

BOLT, STUD (IGNITION COIL)

$6.99

$

Usually ships in 3-6 days

0

15

Honda 90581-GB5-610

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 91301-ZG9-800

O-RING (33.3X3.5)

$

$

Not available

17

Honda 93891-06035-10

SCREW-WASHER (6X35)

$1.49

$

In Stock, Qty 6

0

18

Honda 93913-24580

SCREW, TAPPING (4X20)

$0.99

$

In Stock, Qty 7

0

19

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

20

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1067338.

$2.49

$

In Stock, only 4 left!

0

21

Honda 95002-50000

SEE PART DETAILS - PRI; CLIP, TUBE (C9) (Honda Code 0053447).

Note: Use up to Engine SN 1067338.

$1.99

$

In Stock, only 2 left!

0

22

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Engine SN 1067339.

$2.99

$

In Stock, Qty 8

0

23

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

Note: Use from Engine SN 1067339.

$3.49

$

In Stock, Qty 8

0
