HRC216 K1 HXAA (MZAN) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAN-6100001 - MZAN-7999999) THROTTLE LEVER (2) Parts Diagram

21" Walk-Behind Mower, Made in USA

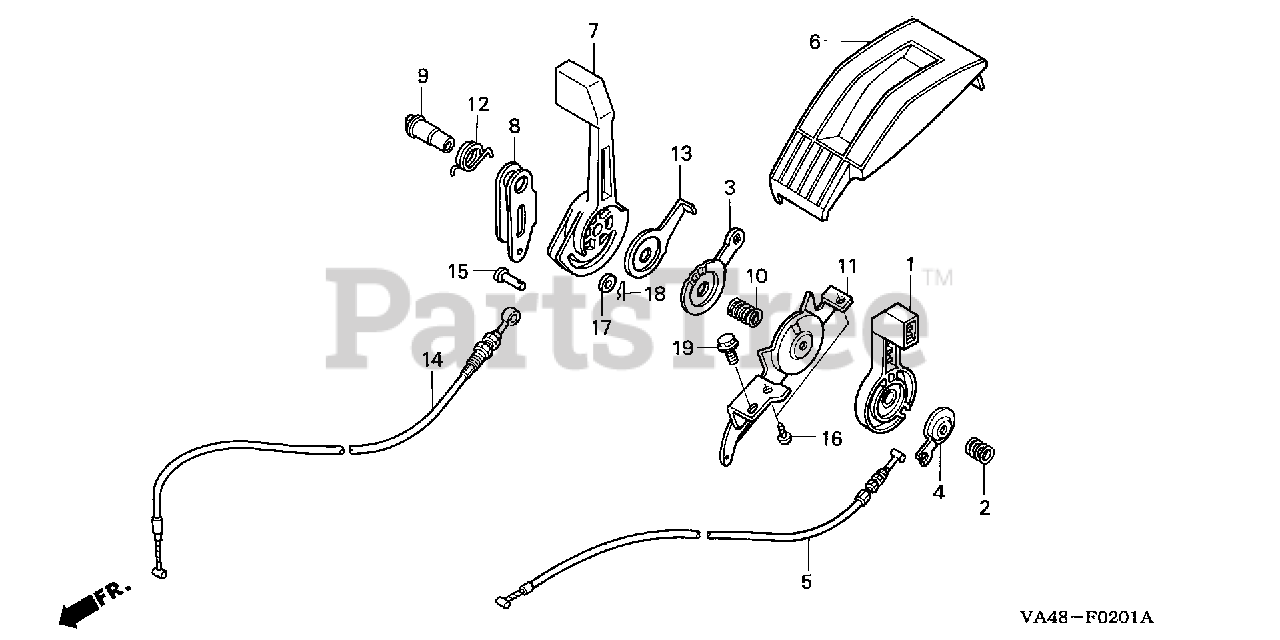

THROTTLE LEVER (2) Parts Diagram

  • Title

1

Honda 17851-VA3-D01

SEE PART DETAILS - PRI; LEVER, THROTTLE

$4.99

$

In Stock, Qty 12

0

2

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

3

Honda 17859-VA3-P00

SEAT, SPRING

$5.99

$

Usually ships in 3-6 days

0

4

Honda 17859-VA3-800

SEAT, SPRING

$5.99

$

In Stock, Qty 6

0

5

Honda 17910-VB5-A01

SEE PART DETAILS - PRI; CABLE, THROTTLE

$15.99

$

In Stock, Qty 5

0

6

Honda 54231-VA3-800

COVER, CONTROL

$32.99

$

Usually ships in 3-6 days

0

7

Honda 54311-VA3-P01

LEVER, CHANGE

$39.99

$

In Stock, only 1 left!

0

8

Honda 54312-VA3-P00

ARM, CHANGE LEVER

$11.99

$

Usually ships in 3-6 days

0

9

Honda 54313-VA3-P00

NUT, CHANGE LEVER

$6.99

$

Usually ships in 3-6 days

0

10

Honda 54314-VA3-P00

SPRING, CHANGE LEVER

$2.99

$

In Stock, Qty 9

0

11

Honda 54315-VA3-P00

PLATE, STOPPER

$33.99

$

Usually ships in 3-6 days

0

12

Honda 54318-VA3-P00

SPRING, ARM RETURN

$3.99

$

In Stock, only 1 left!

0

13

Honda 54319-VA3-P00

PLATE, THRUST

$13.99

$

Usually ships in 3-6 days

0

14

Honda 54520-VB5-P01

SEE PART DETAILS - PRI; CABLE, CHANGE

$24.99

$

In Stock, only 1 left!

0

15

Honda 90752-VA3-P01

SEE PART DETAILS - PRI; PIN (6X22)

$3.99

$

In Stock, Qty 12

0

16

Honda 93901-35210

SCREW, TAPPING (5X12)

$0.99

$

In Stock, Qty 6

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 20+

0

19

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0
