HRC216 HXA (MZAN) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAN-6000001 - MZAN-6099999) CONTROL (HRC216, HRC216K1) Parts Diagram

21" Walk-Behind Mower, Made in USA

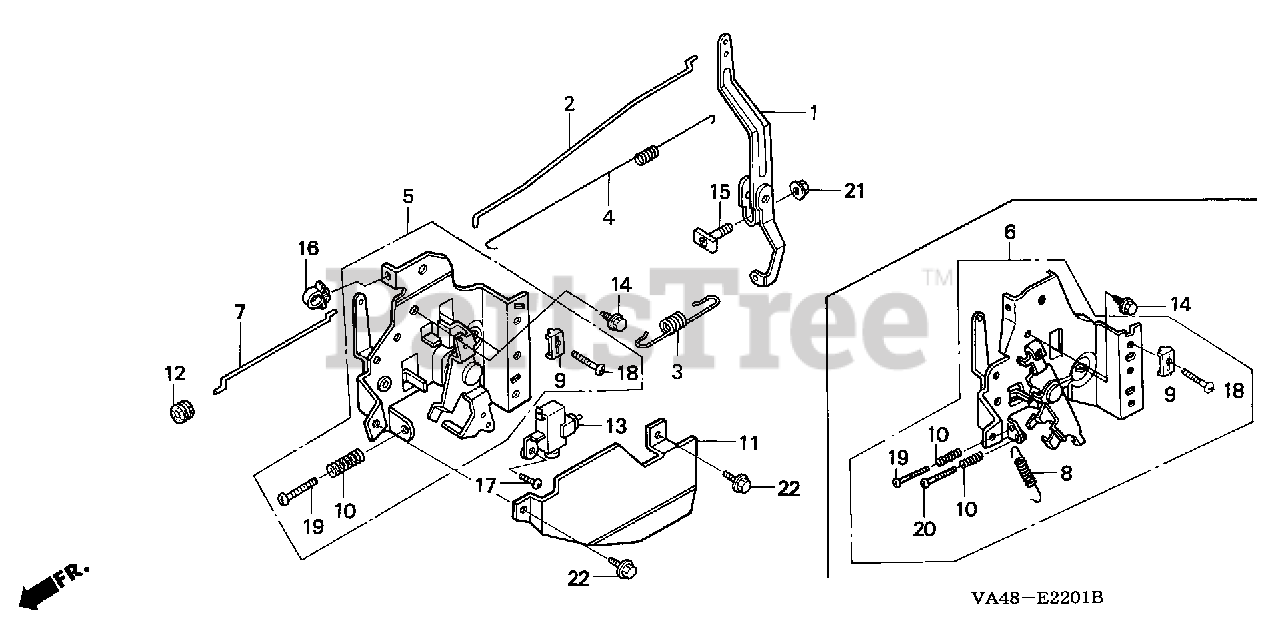

CONTROL (HRC216, HRC216K1) Parts Diagram

  • Title

1

Honda 16551-ZE7-000

ARM, GOVERNOR

$19.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE7-000

ROD, GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

3

Honda 16561-ZE7-020

SEE PART DETAILS - PRI; SPRING, GOVERNOR (STD)

$4.49

$

In Stock, only 2 left!

0

4

Honda 16562-ZE6-000

SPRING, THROTTLE RETURN (Honda Code 1452911).

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16570-ZE7-771

CONTROL ASSY.

Note: Use up to Engine SN 1270690.

$49.99

$

Usually ships in 3-6 days

0

5

Honda 16570-ZE7-772

SEE PART DETAILS - PRI; CONTROL

Note: Use up to Engine SN 1270690.

$49.99

$

In Stock, only 4 left!

0

6

Honda 16570-ZE7-772

SEE PART DETAILS - PRI; CONTROL

Note: Use from Engine SN 1270691.

$49.99

$

In Stock, only 4 left!

0

7

Honda 16573-ZE7-000

ROD, CHOKE

$2.99

$

Usually ships in 3-6 days

0

8

Honda 16576-ZE7-300

SPRING, LEVER

Note: Use from Engine SN 1270691.

$4.99

$

In Stock, Qty 10

0

9

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

Note: Use up to Engine SN 1270690.

$4.99

$

In Stock, Qty 7

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

Note: Use from Engine SN 1270691.

$4.99

$

In Stock, Qty 7

0

11

Honda 16585-ZE7-000

PROTECTOR, CONTROL

$15.99

$

Usually ships in 3-6 days

0

12

Honda 16613-890-000

GROMMET, CHOKE ROD (Honda Code 0755413).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 36100-ZE7-003

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36100-ZE7-013)

$20.99

$

In Stock, only 1 left!

0

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

15

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

16

Honda 90659-680-013

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

17

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

18

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

19

Honda 93500-05020-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X20) (Honda Code 0197731).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93500-05028-0A

SCREW, PAN (5X28) (Honda Code 0171819).

Note: Use from Engine SN 1270691.

$1.49

$

In Stock, Qty 5

0

21

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

22

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0
