HRC215 K1 SDA (MZAU) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAU-6100001 - MZAU-9999999) REAR WHEEL (HRA215, HRC215K1) Parts Diagram

21" Walk-Behind Mower, Made in USA

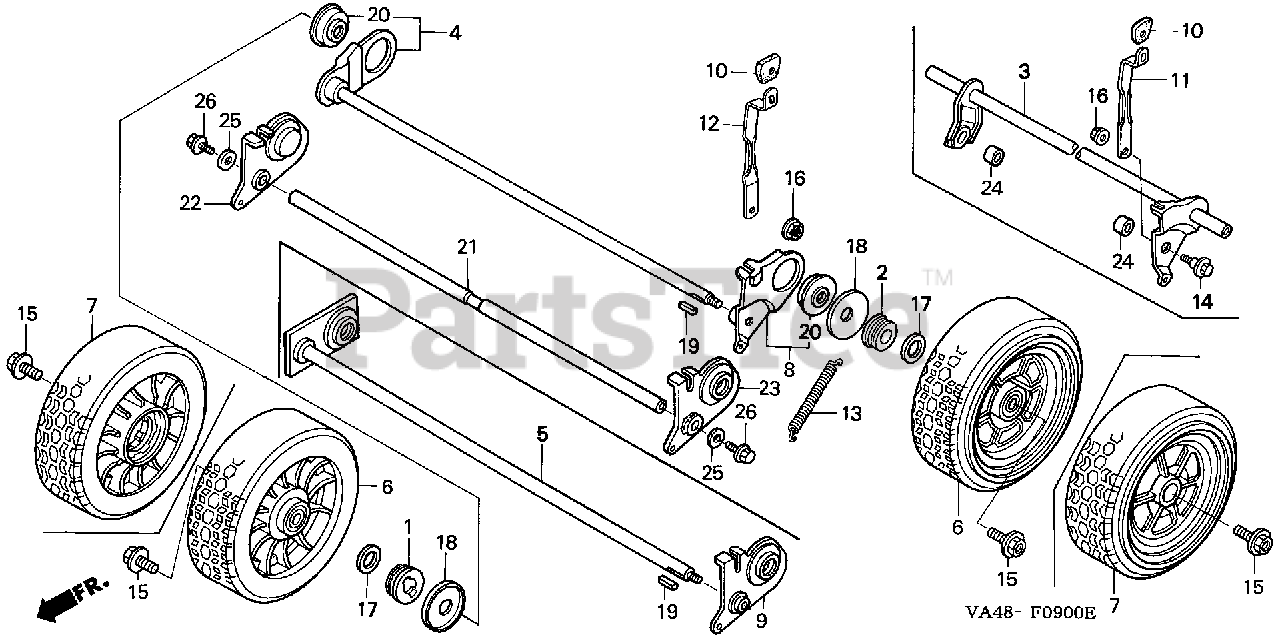

REAR WHEEL (HRA215, HRC215K1) Parts Diagram

  • Title

NI

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

Usually ships in 3-6 days

0

1

Honda 23510-VB5-803

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

$29.99

$

In Stock, only 4 left!

0

2

Honda 23520-VB5-803

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

$29.99

$

In Stock, only 3 left!

0

5

Honda 42650-VB5-D00

SHAFT, RR. AXLE

Note: Use up to Frame SN 6111761.

$49.99

$

Usually ships in 3-6 days

0

7

Honda 42810-VA3-J02

SEE PART DETAILS - PRI; WHEEL, PROPELLED (8") (NH166)

$30.99

$

In Stock, only 2 left!

0

9

Honda 42940-VB5-D00

ARM, RR. ADJUSTER

Note: Use up to Frame SN 6111761.

$63.99

$

Usually ships in 3-6 days

0

10

Honda 42952-VA4-000

GRIP, ADJUSTER

Note: Use up to Frame SN 6111761.

$4.99

$

In Stock, only 1 left!

0

10

Honda 42952-VG3-000

SEE PART DETAILS - PRI; GRIP, ADJUSTER
(Superseded to 42952-VG3-000ZA)

Note: Use from Frame SN 6111762.

$0.99

$

In Stock, Qty 20+

0

10

Honda 42952-VG3-000ZA

SEE PART DETAILS - PRI; GRIP, ADJUSTER *NH105* (MAT BLACK)

Note: Use from Frame SN 6111762.

$0.99

$

In Stock, Qty 20+

0

12

Honda 42961-VB5-A00

PLATE, RR. ADJUSTER

Note: Use up to Frame SN 6111761.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 42961-VB5-A00

PLATE, RR. ADJUSTER

Note: Use from Frame SN 6111762.

$4.99

$

Usually ships in 3-6 days

0

13

Honda 42992-VA4-000

SPRING, RR. BALANCER

Note: Use up to Frame SN 6111761.

$14.99

$

Usually ships in 3-6 days

0

15

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

16

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

Note: Use up to Frame SN 6111761.

$0.99

$

In Stock, Qty 20+

0

17

Honda 90551-VA4-800

WASHER (16MM)

$3.49

$

In Stock, Qty 5

0

18

Honda 90555-VA4-800

WASHER, WHEEL

$6.49

$

In Stock, only 3 left!

0

19

Honda 90746-VA4-000

KEY (4X4X11)

Note: Use up to Frame SN 6111761.

$

$

Not available

21

Honda 42651-VB5-800

SHAFT, RR. AXLE

Note: Use from Frame SN 6111762.

$

$

Not available

22

Honda 42930-VB5-C00

ARM, R. RR. ADJUSTER

Note: Use from Frame SN 6111762.

$30.99

$

Usually ships in 3-6 days

0

23

Honda 42940-VB5-C00

ARM, RR. ADJUSTER

Note: Use from Frame SN 6111762.

$30.99

$

Usually ships in 3-6 days

0

25

Honda 90505-SD9-000

WASHER, RR. ENGINE MOUNTING

Note: Use from Frame SN 6111762.

$9.99

$

In Stock, only 2 left!

0

26

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use from Frame SN 6111762.

$2.49

$

In Stock, Qty 7

0
