HRC215 K1 PDA (MZAU) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAU-6100001 - MZAU-9999999) HANDLEBAR (HRC215K1, HRC216K1) Parts Diagram

21" Walk-Behind Mower, Made in USA

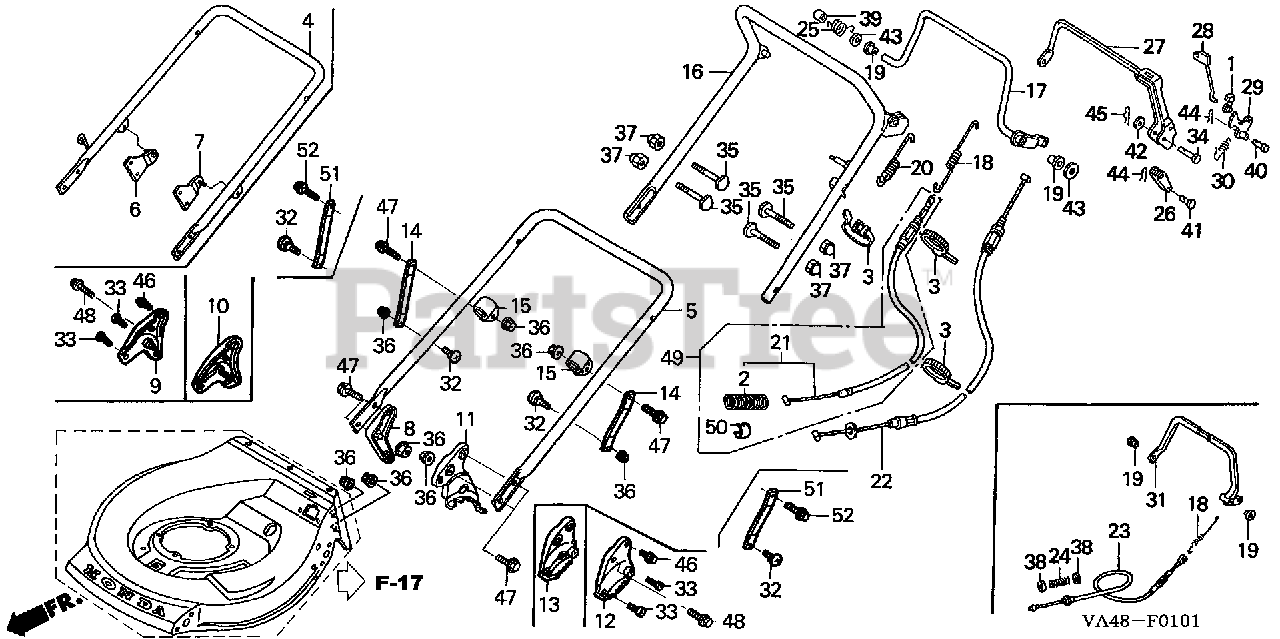

HANDLEBAR (HRC215K1, HRC216K1) Parts Diagram

  • Title

3

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

4

Honda 53110-VB5-D02ZA

PIPE, HANDLE (LOWER) *NH105* (MAT BLACK)

Note: Use up to Frame SN 6114947.

$70.99

$

Usually ships in 3-6 days

0

5

Honda 53110-VB5-D02ZA

PIPE, HANDLE (LOWER) *NH105* (MAT BLACK)

Note: Use from Frame SN 6114948.

$70.99

$

Usually ships in 3-6 days

0

6

Honda 53113-VB5-D00ZA

STAY, R. HANDLE SUPPORT *NH105* (MAT BLACK)

Note: Use up to Frame SN 6111761.

$21.99

$

Usually ships in 3-6 days

0

7

Honda 53114-VB5-D00ZA

STAY, L. HANDLE SUPPORT *NH105* (MAT BLACK)

Note: Use up to Frame SN 6111761.

$21.99

$

Usually ships in 3-6 days

0

8

Honda 53115-VA4-000ZD

STAY, R. HANDLE *NH190M* (VINTAGE GRAY METALLIC)

Note: Use up to Frame SN 6111761.

$47.99

$

Usually ships in 3-6 days

0

9

Honda 53115-VB5-C00

STAY, R. HANDLE

Note: Use from Frame SN 6111762.

$47.99

$

Usually ships in 3-6 days

0

11

Honda 53116-VA4-000ZD

STAY, L. HANDLE *NH190M* (VINTAGE GRAY METALLIC)

Note: Use up to Frame SN 6111761.

$

$

Not available

12

Honda 53116-VB5-C00

STAY, L. HANDLE

Note: Use from Frame SN 6111762.

$82.99

$

Usually ships in 3-6 days

0

14

Honda 53118-VB5-D00ZA

PLATE, HANDLE SUPPORT *NH105* (MAT BLACK)

Note: Use up to Frame SN 6117043.

$12.99

$

Usually ships in 3-6 days

0

15

Honda 53119-VB5-D00

HANGER, HANDLE SUPPORT

Note: Use from Frame SN 6116084.

$20.99

$

Usually ships in 3-6 days

0

16

Honda 53150-VB5-D00ZA

PIPE, HANDLE (UPPER) *NH105* (MAT BLACK)

$491.99

$

Usually ships in 3-6 days

0

18

Honda 54411-VA3-J00

SPRING, CLUTCH

$7.49

$

In Stock, only 2 left!

0

19

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 19

0

23

Honda 54530-VB5-D02

CABLE, BRAKE

$20.99

$

In Stock, only 1 left!

0

24

Honda 75113-VE2-D00

SPRING B, BRAKE

$0.99

$

Usually ships in 3-6 days

0

25

Honda 75118-VA3-J00

SPRING, R. STOP RETURN

$5.99

$

In Stock, Qty 12

0

31

Honda 75171-VB5-D01ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$88.99

$

Usually ships in 3-6 days

0

32

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

33

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

34

Honda 90106-VA4-000

PIN, CLUTCH LEVER

$10.99

$

Usually ships in 3-6 days

0

35

Honda 90109-VB5-800

SEE PART DETAILS - PRI; BOLT, HANDLE HOLDER (8X36)

$0.99

$

In Stock, only 4 left!

0

36

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

Note: Use up to Frame SN 6111761.

$0.99

$

In Stock, Qty 20+

0

36

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

Note: Use from Frame SN 6111762.

$0.99

$

In Stock, Qty 20+

0

37

Honda 90443-107-000

NUT, CAP (8MM)

$3.99

$

In Stock, Qty 7

0

38

Honda 90501-VE2-D00

WASHER, SPECIAL (6MM)

$4.99

$

Usually ships in 3-6 days

0

39

Honda 90552-VA3-J00

COLLAR (8X11X13.5)

$4.49

$

In Stock, Qty 18

0

43

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

45

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 9

0

46

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use from Frame SN 6111762.

$2.49

$

In Stock, Qty 20+

0

46

Honda 95701-08018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) (Honda Code 2563237).

Note: Use up to Frame SN 6111761.

$2.49

$

In Stock, Qty 6

0

47

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use up to Frame SN 6116083.

$2.49

$

In Stock, Qty 20+

0

47

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

Note: Use from Frame SN 6116084 to 6117043.

$2.49

$

In Stock, only 3 left!

0

48

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

Note: Use from Frame SN 6116084.

$2.99

$

Usually ships in 3-6 days

0

48

Honda 95701-08045-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 2533859).

Note: Use up to Frame SN 6116083.

$1.99

$

In Stock, Qty 20+

0

51

Honda 53118-VB5-D01ZA

PLATE, HANDLE SUPPORT *NH105* (MAT BLACK)

Note: Use from Frame SN 6117044.

$12.99

$

Usually ships in 3-6 days

0

52

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

Note: Use from Frame SN 6117044.

$2.49

$

In Stock, only 3 left!

0
