HRB217 TDA (MAEA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAEA-1000001 - MAEA-9999999) IGNITION COIL Parts Diagram

21" Walk-Behind Mower, Made in USA

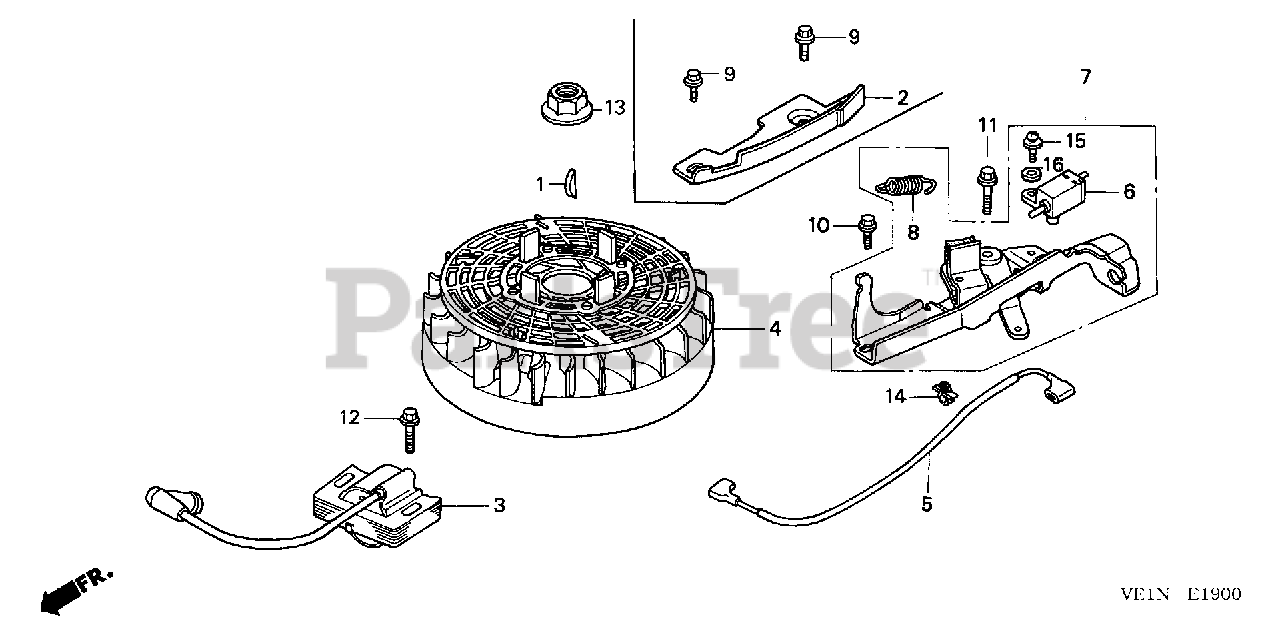

IGNITION COIL Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.99

$

In Stock, Qty 7

0

3

Honda 30500-Z0J-003

COIL ASSY., IGNITION (PHELON) (USE FOR F/W OF PHELON)
(Superseded to 30500-Z8B-903)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 31105-Z0Y-010

FLYWHEEL ASSY. (PHELON) (USE FOR IGN. COIL OF PHELON)

$28.99

$

Usually ships in 3-6 days

0

5

Honda 32195-Z0L-000

WIRE, STOP SWITCH

$6.49

$

Usually ships in 3-6 days

0

6

Honda 35120-ZM0-003

SWITCH ASSY., ENGINE STOP (N.C)

$12.99

$

In Stock, only 2 left!

0

7

Honda 75100-Z0L-900

SEE PART DETAILS - SUP; BRAKE ASSY.
(Superseded to 75100-Z0L-901)

$57.99

$

In Stock, Qty 5

0

7

Honda 75100-Z8B-900

SEE PART DETAILS - SUP; BRAKE ASSY.
(Superseded to 75100-Z0L-901)

$57.99

$

In Stock, Qty 5

0

8

Honda 75113-ZM0-000

SPRING, BRAKE LEVER

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 3 left!

0

11

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

In Stock, only 2 left!

0

12

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

13

Honda 90213-S3Y-000

NUT, FLANGE (14MM)

$6.49

$

In Stock, only 1 left!

0

14

Honda 90681-959-003

CLIP A, CABLE (3.8MM BLACK) (NIFCO)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 93892-04012-00

SCREW-WASHER (4X12)

$0.99

$

In Stock, Qty 8

0

16

Honda 94103-04000

WASHER, PLAIN (4MM)

$0.99

$

In Stock, Qty 7

0
