HRB217 HXA (MAEA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAEA-1000001 - MAEA-9999999) ROTARY BLADE (HXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

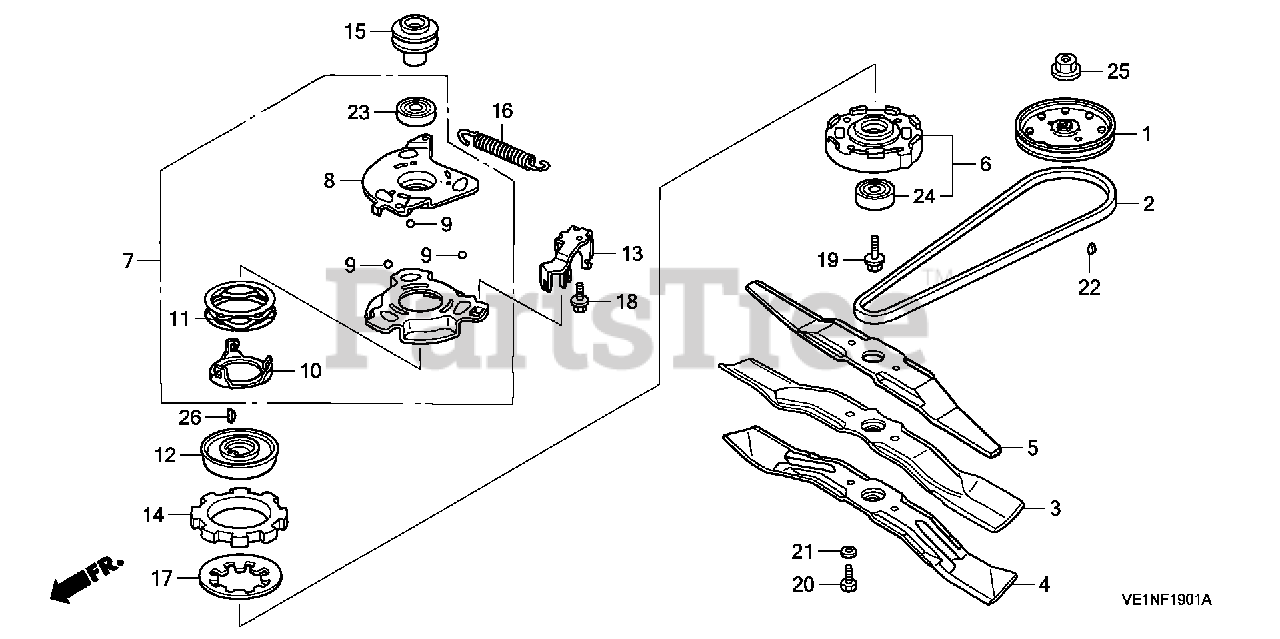

ROTARY BLADE (HXA) Parts Diagram

  • Title

1

Honda 22420-VE2-J00

PULLEY, DRIVEN

$

$

Not available

2

Honda 22431-VE1-R20

V-BELT (3L-36.9)

$10.99

$

In Stock, only 1 left!

0

3

Honda 72511-VE1-020

SEE PART DETAILS - PRI; BLADE, ROTARY (BAGGING)

$21.99

$

In Stock, only 4 left!

0

4

Honda 72511-VE2-000

SEE PART DETAILS - SUP; BLADE, ROTARY
(Superseded to 72511-VG4-K00)

Note: (Optional).

$21.99

$

In Stock, only 1 left!

0

4

Honda 72511-VG4-K00

SEE PART DETAILS - PRI; BLADE, ROTARY (PCD=88MM)

Note: (Optional).

$21.99

$

In Stock, only 1 left!

0

5

Honda 72531-VE2-020

SEE PART DETAILS - PRI; BLADE, ROTARY (UPPER) (PCD=88MM)

$20.99

$

In Stock, only 3 left!

0

6

Honda 72600-VE1-G00

HOLDER ASSY., BLADE

$36.99

$

In Stock, only 1 left!

0

7

Honda 75110-VE1-R00

SEE PART DETAILS - PRI; PLATE ASSY., BALL CONTROL

$83.99

$

Usually ships in 3-6 days

0

8

Honda 75111-VE1-G01

PLATE, BALL CONTROL

$8.49

$

In Stock, Qty 6

0

9

Honda 75117-VE1-G00

BALL, STEEL

$13.99

$

In Stock, Qty 13

0

10

Honda 75127-VE1-G00

PLATE, SPRING HOOK

$7.99

$

In Stock, only 1 left!

0

11

Honda 75132-VE1-G00

SPRING, BALL PLATE

$7.99

$

Usually ships in 3-6 days

0

12

Honda 75141-VE1-R00

DISK, DRIVE

$17.99

$

In Stock, only 3 left!

0

13

Honda 75143-VE1-G00

HOOK, RETURN SPRING

$42.99

$

Usually ships in 3-6 days

0

14

Honda 75150-VE1-R00

DISK, DRIVEN

$61.99

$

In Stock, only 1 left!

0

15

Honda 75162-VE1-G00

PULLEY, DRIVE

$53.99

$

Usually ships in 3-6 days

0

16

Honda 75182-VE1-G02

SEE PART DETAILS - SUP; SPRING, CLUTCH RETURN
(Superseded to 75185-VE1-G00)

$7.49

$

In Stock, only 1 left!

0

16

Honda 75185-VE1-G00

SEE PART DETAILS - PRI; SPRING ASSY., CLUTCH RETURN

$7.49

$

In Stock, only 1 left!

0

17

Honda 75183-VE1-G01

SPRING, CLUTCH

$28.99

$

In Stock, only 1 left!

0

18

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

19

Honda 90101-VE1-G00

BOLT, FLANGE (10X24)

$1.49

$

In Stock, Qty 7

0

20

Honda 90105-960-710

SEE PART DETAILS - PRI; BOLT, HEX. (10X20)

$1.99

$

In Stock, Qty 20+

0

21

Honda 90502-VG3-000

WASHER, SPRING (10MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 90751-VE2-M00

KEY, WOODRUFF

$0.99

$

In Stock, Qty 6

0

23

Honda 91051-VE1-G00

BEARING, RADIAL BALL (6006) (SST)

$30.99

$

In Stock, only 1 left!

0

24

Honda 91052-VE1-G00

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6204)
(Superseded to 91102-VA4-013)

$24.99

$

In Stock, only 2 left!

0

24

Honda 91102-VA4-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$24.99

$

In Stock, only 2 left!

0

25

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

26

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, Qty 6

0
