HRB217 HXA (MAEA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAEA-1000001 - MAEA-9999999) HANDLEBAR (HXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

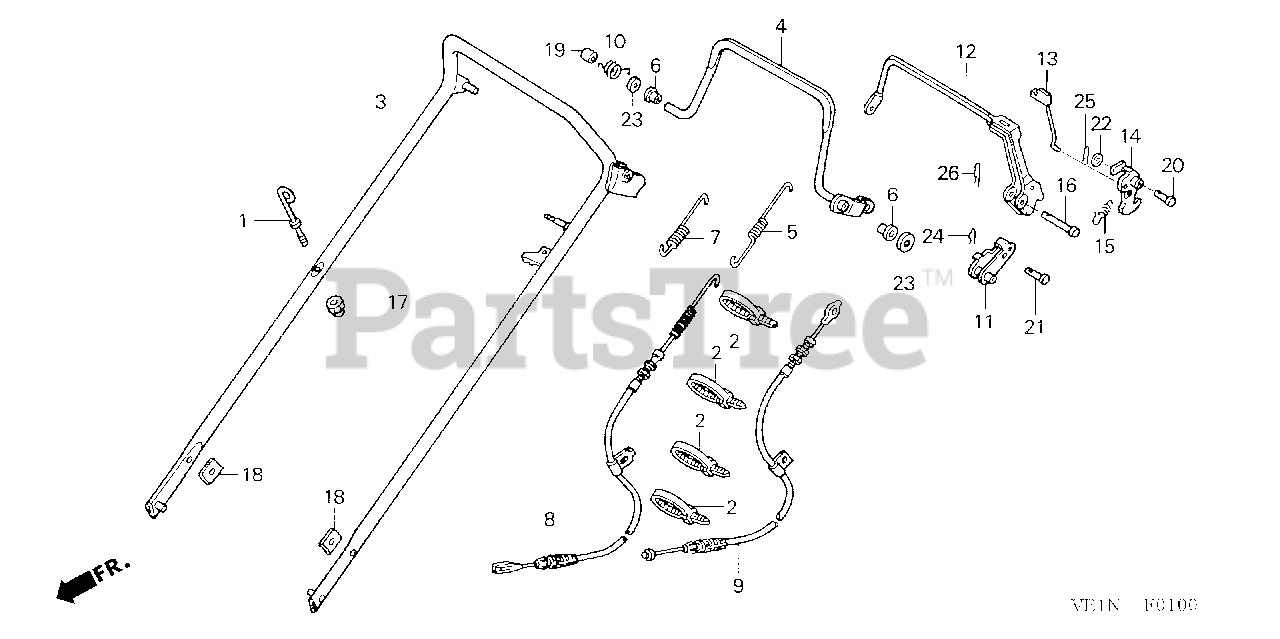

HANDLEBAR (HXA) Parts Diagram

  • Title
1

Honda 28475-VE1-R00

GUIDE, ROPE

$59.99

$

In Stock, only 1 left!

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

3

Honda 53110-VE1-R01ZA

PIPE, HANDLE *NH105* (MAT BLACK)

$157.99

$

In Stock, only 1 left!

0

4

Honda 54410-VE1-R00

LEVER, CLUTCH

$

$

Not available

5

Honda 54411-VB3-800

SPRING, CLUTCH

$5.49

$

In Stock, only 3 left!

0

6

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

7

Honda 54414-VA3-P00

SPRING, CLUTCH LEVER RETURN

$4.99

$

In Stock, Qty 10

0

9

Honda 54530-VE1-R00

CABLE, ROTO-STOP

$32.99

$

In Stock, only 1 left!

0

10

Honda 75118-VA3-J00

SPRING, R. STOP RETURN

$5.99

$

In Stock, Qty 12

0

11

Honda 75128-VE1-R00

ARM, ROTO-STOP CABLE

$8.49

$

In Stock, only 1 left!

0

12

Honda 75161-VE0-L00

SEE PART DETAILS - SUP; LEVER, ROTO-STOP
(Superseded to 75161-VE0-305)

$58.99

$

In Stock, only 1 left!

0

12

Honda 75161-VE0-L01

SEE PART DETAILS - PRI; LEVER, ROTO-STOP

$58.99

$

In Stock, only 1 left!

0

12

Honda 75161-VE0-305

SEE PART DETAILS - PRI; LEVER, ROTO-STOP (FOR U.S.A.)
(Superseded to 75161-VE0-L01)

$58.99

$

In Stock, only 1 left!

0

13

Honda 75165-VE0-L00

ROD, RATCHET PUSH

$8.49

$

In Stock, only 1 left!

0

14

Honda 75166-VE1-R00

LEVER, LOCK

$8.99

$

In Stock, only 4 left!

0

15

Honda 75168-VA4-000

SPRING, RATCHET RETURN

$4.49

$

In Stock, Qty 8

0

16

Honda 90106-VA4-800

PIN, CLUTCH LEVER

$11.99

$

Usually ships in 3-6 days

0

17

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 12

0

19

Honda 90552-VA3-J00

COLLAR (8X11X13.5)

$3.99

$

In Stock, Qty 19

0

20

Honda 90753-VA3-J00

PIN, LOCK LEVER HINGE (6X30)

$4.99

$

In Stock, Qty 7

0

21

Honda 90754-VA9-P40

PIN, CABLE JOINT

$7.49

$

In Stock, only 1 left!

0

22

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94201-16120

PIN, SPLIT (1.6X12)

$1.49

$

In Stock, only 4 left!

0

25

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 11

0

26

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0
