HRB216 TDAA (MAAA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAAA-1000001 - MAAA-9999999) PISTON + CONNECTING ROD Parts Diagram

21" Walk-Behind Mower, Made in USA

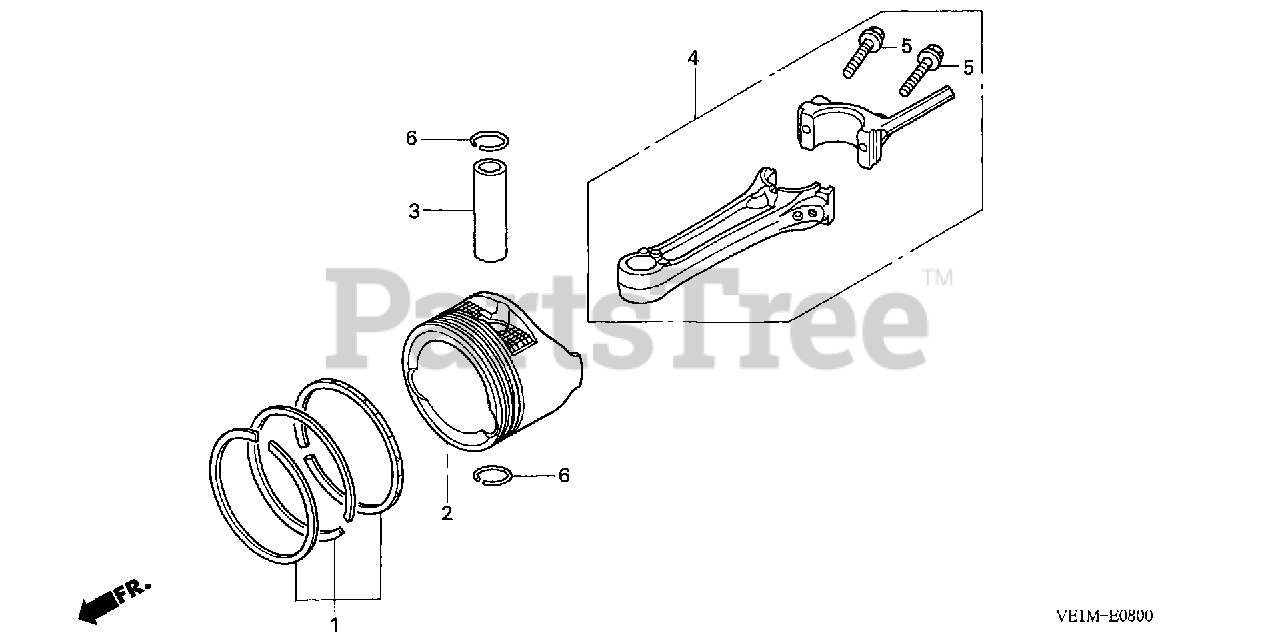

PISTON + CONNECTING ROD Parts Diagram

  • Title
1

Honda 13010-Z0L-003

SEE PART DETAILS - SUP; RING SET, PISTON (RIKEN)
(Superseded to 13010-ZL8-003)

$31.99

$

In Stock, only 2 left!

0

1

Honda 13010-Z0L-004

RING SET, PISTON (STD) (TEIKOKU)
(Superseded to 13010-ZL8-003)

$31.99

$

In Stock, only 2 left!

0

$46.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE0-000

PIN, PISTON

$7.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZL8-000

ROD ASSY., CONNECTING

$59.99

$

In Stock, only 3 left!

0

5

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

6

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, Qty 20+

0
