HRB216 TDAA (MAAA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAAA-1000001 - MAAA-9999999) HANDLEBAR (TDA, TDAA) Parts Diagram

21" Walk-Behind Mower, Made in USA

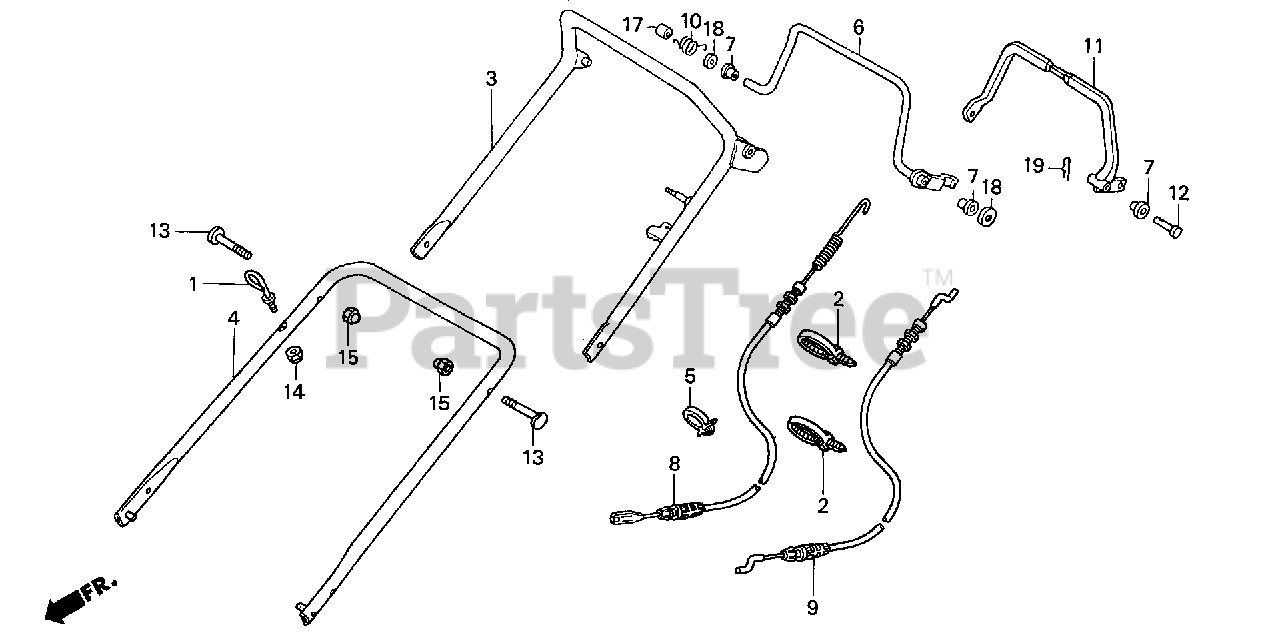

HANDLEBAR (TDA, TDAA) Parts Diagram

  • Title

1

Honda 28475-VE1-V00

GUIDE, ROPE

$1.99

$

Usually ships in 3-6 days

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 20+

0

3

Honda 53150-VA3-J00ZC

PIPE, HANDLE (UPPER) *NH105* (MAT BLACK)

$53.99

$

Usually ships in 3-6 days

0

4

Honda 53150-VE1-V01ZA

SEE PART DETAILS - PRI; HANDLE (LOWER) *NH105* (MAT BLACK)

$334.99

$

Usually ships in 3-6 days

0

5

Honda 53735-SE0-961

CLIP, POWER STEERING SUCTION TUBE

$14.99

$

Usually ships in 3-6 days

0

6

Honda 54410-VA3-J00

LEVER, CLUTCH

$43.99

$

In Stock, only 2 left!

0

7

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

8

Honda 54510-VE1-T01

SEE PART DETAILS - PRI; CABLE, CLUTCH

$25.99

$

In Stock, only 1 left!

0

9

Honda 54530-VE1-E00

CABLE, BRAKE

$18.99

$

Usually ships in 3-6 days

0

10

Honda 75118-VA3-J00

SPRING, R. STOP RETURN

$6.49

$

In Stock, Qty 20+

0

11

Honda 75190-VE1-E00ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$114.99

$

Usually ships in 3-6 days

0

12

Honda 90106-VA4-800

PIN, CLUTCH LEVER

$12.99

$

In Stock, Qty 8

0

13

Honda 90109-VB5-800

SEE PART DETAILS - PRI; BOLT, HANDLE HOLDER

$0.99

$

In Stock, only 4 left!

0

14

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 90443-107-000

NUT, CAP (8MM)

$3.99

$

In Stock, Qty 7

0

17

Honda 90552-VA3-J00

COLLAR (8X11X13.5)

$4.49

$

In Stock, Qty 17

0

18

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0
