HRB216 TDA (MAAA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAAA-1000001 - MAAA-9999999) ROTARY BLADE (TDA, TDAA) Parts Diagram
21" Walk-Behind Mower, Made in USA

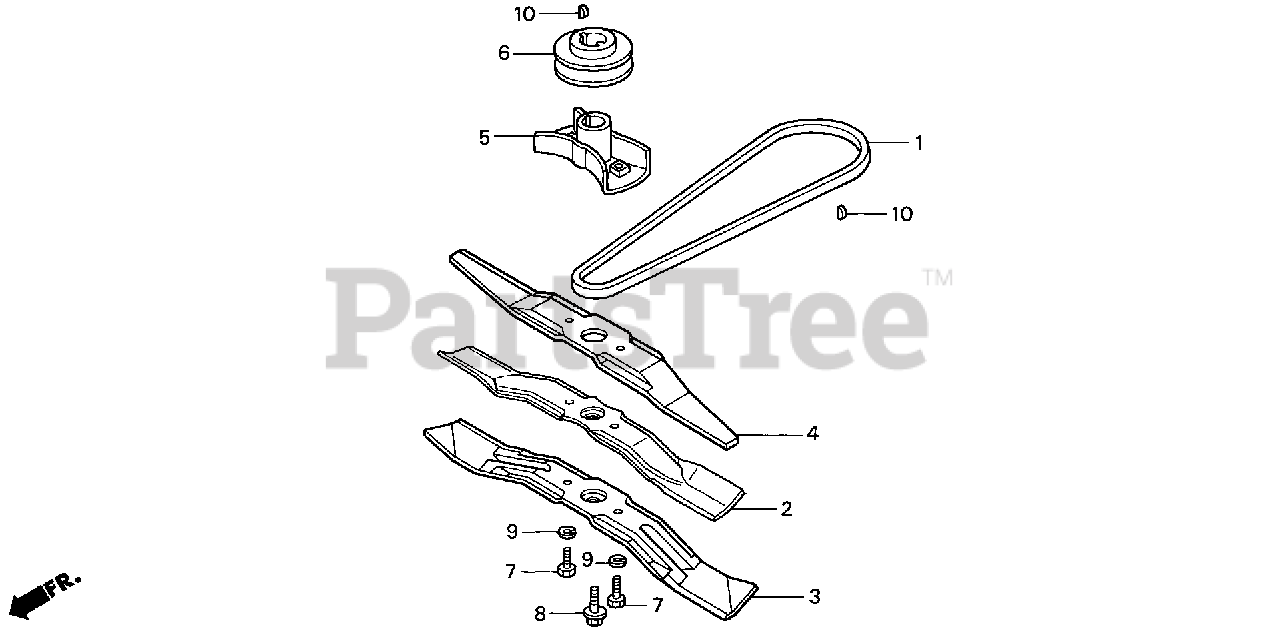

ROTARY BLADE (TDA, TDAA) Parts Diagram
Honda 22431-VE1-T00
V-BELT (3L-36.3)
$9.99
$
In Stock, Qty 5
Honda 72511-VE1-020
SEE PART DETAILS - PRI; BLADE, ROTARY
$21.99
$
In Stock, only 4 left!
$21.99
$
Usually ships in 3-6 days
Honda 72511-VG4-K00
SEE PART DETAILS - PRI; BLADE, ROTARY (PCD=88MM)
$21.99
$
Usually ships in 3-6 days
Honda 72531-VE2-020
SEE PART DETAILS - PRI; BLADE, ROTARY (UPPER) (PCD=88MM)
$20.99
$
In Stock, only 2 left!
$79.99
$
In Stock, only 3 left!
Honda 75162-VE1-E00
PULLEY, DRIVE
$21.99
$
Usually ships in 3-6 days
Honda 90105-960-710
SEE PART DETAILS - PRI; BOLT, HEX. (10X20)
$1.99
$
In Stock, Qty 20+
Honda 90109-VG3-000
BOLT, FLANGE (3/8-24X1")
$0.99
$
In Stock, Qty 7
Honda 90502-VG3-000
WASHER, SPRING (10MM)
$1.49
$
In Stock, Qty 20+
Honda 90751-VG3-000
KEY, WOODRUFF (3/16X5/8)
$0.99
$
In Stock, Qty 6
