HRB216 TDA (MAAA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAAA-1000001 - MAAA-9999999) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

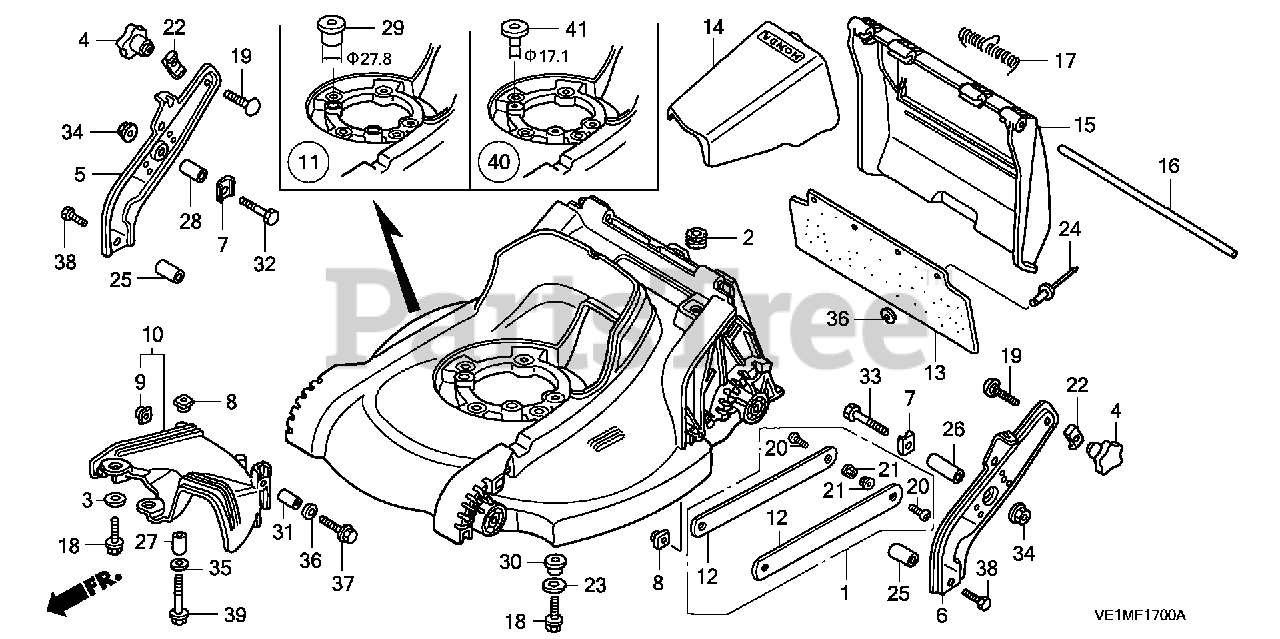

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 06761-VE2-000

GUARD KIT, HOUSING

$16.99

$

Usually ships in 3-6 days

0

2

Honda 50329-HA7-670

RUBBER, BATTERY BOX MOUNTING

$3.99

$

In Stock, only 1 left!

0

3

Honda 53101-GN5-900

PLATE, HANDLE SETTING

$5.49

$

In Stock, only 1 left!

0

4

Honda 53125-VA4-K10

SEE PART DETAILS - PRI; GRIP, HANDLE JOINT (UPPER)

$7.99

$

Usually ships in 3-6 days

0

5

Honda 53130-VE1-T00ZA

STAY, R. HANDLE *NH105* (MAT BLACK)

$25.99

$

Usually ships in 3-6 days

0

6

Honda 53135-VE1-T00ZA

STAY, L. HANDLE *NH105* (MAT BLACK)

$27.99

$

Usually ships in 3-6 days

0

7

Honda 53137-VE2-000

HOLDER, HANDLE STAY

$0.99

$

In Stock, only 1 left!

0

8

Honda 61304-165-013

NUT, HEADLIGHT SETTING

$5.49

$

In Stock, only 1 left!

0

9

Honda 61304-958-003

NUT, SPECIAL (6X7)

$4.49

$

In Stock, Qty 20+

0

10

Honda 76105-VE1-650ZC

GUIDE ASSY., SCROLL *NH105Z* (MAT BLACK)
(Superseded to 76105-VE1-650ZD)

$

$

Not available

11

Honda 76111-VE2-030ZB

HOUSING *NH462* (VINTAGE GRAY SOLID)

$307.99

$

Usually ships in 3-6 days

0

12

Honda 76115-VE2-000

GUARD, HOUSING

$

$

Currently unavailable

13

Honda 76118-VE2-000

SHIELD, RR.

$15.99

$

In Stock, only 2 left!

0

14

Honda 76266-VE2-000ZA

SEE PART DETAILS - PRI; STUFFING *NH105* (MAT BLACK)

$

$

Not available

15

Honda 76281-VE2-000

GUARD, DISCHARGE

$20.99

$

Usually ships in 3-6 days

0

16

Honda 76282-VE2-000

SHAFT, DISCHARGE GUARD

$3.49

$

Usually ships in 3-6 days

0

17

Honda 76314-VA3-E41

SEE PART DETAILS - PRI; SPRING, GUARD RETURN

$

$

Not available

18

Honda 90102-VE0-000

BOLT, ENGINE SETTING

$0.99

$

In Stock, Qty 11

0

19

Honda 90133-VE0-000

BOLT, PAN (8X35)

$0.99

$

In Stock, Qty 8

0

20

Honda 90135-VE2-000

SCREW, HOUSING GUARD

$

$

Currently unavailable

21

Honda 90304-VE2-000

NUT, FLANGE

$

$

Currently unavailable

22

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 10

0

23

Honda 90505-VE2-L00

WASHER, ENGINE MOUNTING

$0.99

$

In Stock, Qty 7

0

24

Honda 90841-MN8-300

RIVET (6MM)

$5.99

$

In Stock, only 1 left!

0

25

Honda 91551-VE2-000

COLLAR, STAY (LOWER)

$4.49

$

In Stock, only 1 left!

0

26

Honda 91552-VE2-000

COLLAR, L. STAY (UPPER)

$21.99

$

Usually ships in 3-6 days

0

27

Honda 91553-VE0-000

COLLAR, HANDLE

$11.99

$

Usually ships in 3-6 days

0

28

Honda 91553-VE2-000

COLLAR, R. STAY (UPPER)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 91555-VE1-E00

COLLAR A, BED

$175.99

$

Usually ships in 3-6 days

0

30

Honda 91556-VE1-E00

COLLAR B, BED

$3.99

$

In Stock, only 1 left!

0

31

Honda 91558-VE2-000

COLLAR, SCROLL

$0.99

$

Usually ships in 3-6 days

0

32

Honda 92101-08040-0A

BOLT, HEX. (8X40)

$2.49

$

In Stock, only 1 left!

0

33

Honda 92101-08055-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X55)

$1.99

$

Usually ships in 3-6 days

0

34

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

35

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

36

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 19

0

37

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 4 left!

0

38

Honda 95701-08022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X22)

$2.99

$

In Stock, Qty 7

0

39

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, Qty 14

0

40

Honda 76111-VE2-040ZB

HOUSING, CUTTER *NH462* (VINTAGE GRAY SOLID)

$

$

Not available

41

Honda 91557-VE1-E00

COLLAR C, BED

$60.99

$

Usually ships in 3-6 days

0
