HRB216 HXA (MAAA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAAA-1000001 - MAAA-9999999) TRANSMISSION (HXA, HXAA) Parts Diagram

21" Walk-Behind Mower, Made in USA

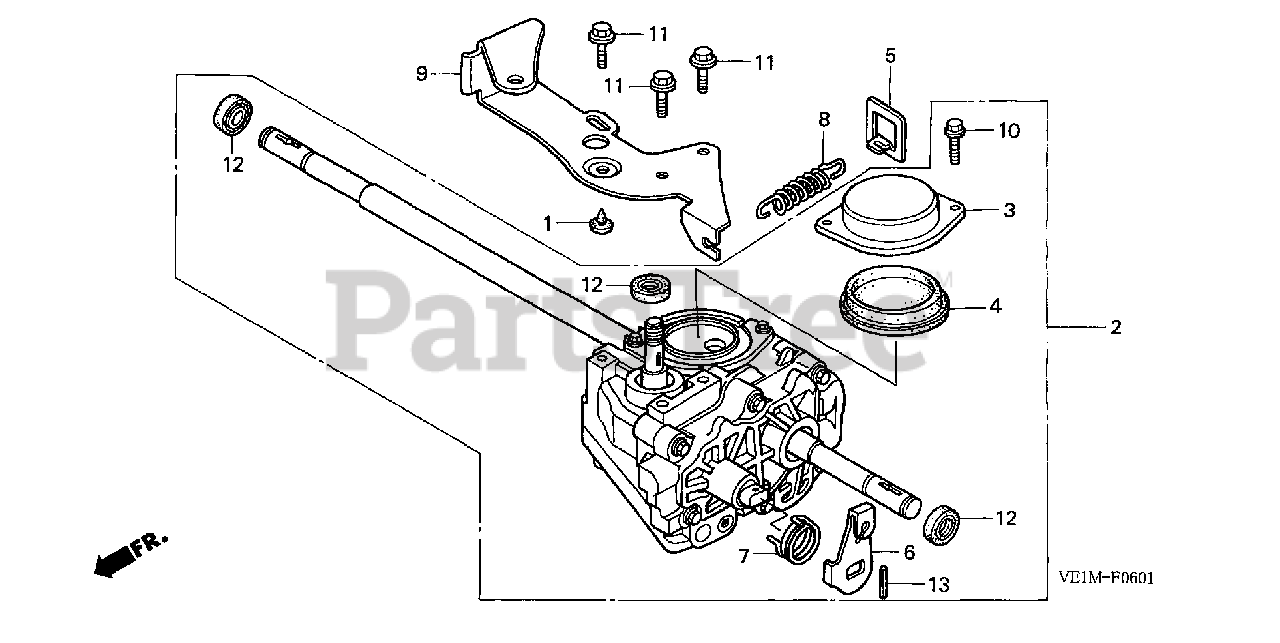

TRANSMISSION (HXA, HXAA) Parts Diagram

  • Title

1

Honda 17502-GAA-000

RUBBER, TANK STOPPER

$5.49

$

Usually ships in 3-6 days

0

2

Honda 20011-VE5-710

SEE PART DETAILS - PRI; TRANSMISSION ASSY.

$418.99

$

Usually ships in 3-6 days

0

3

Honda 21230-VE5-000

SEE PART DETAILS - SUP; CAP, OIL

$

$

Not available

4

Honda 21235-VE5-000

SEE PART DETAILS - SUP; GASKET, OIL CAP
(Superseded to 21235-VE5-A00)

$6.99

$

In Stock, only 1 left!

0

4

Honda 21235-VE5-010

SEE PART DETAILS - SUP; GASKET, OIL CAP

$

$

Currently unavailable

5

Honda 21557-VE2-800

PLATE, TENSION SPRING

$20.99

$

In Stock, only 1 left!

0

6

Honda 22533-VE5-010

SEE PART DETAILS - SUP; ARM, CONTROL
(Superseded to 22533-VE5-A00)

$2.99

$

Usually ships in 3-6 days

0

7

Honda 24134-VE5-010

SEE PART DETAILS - SUP; SPRING, CONTROL ARM RETURN
(Superseded to 24134-VE5-A00)

$1.49

$

In Stock, Qty 20+

0

8

Honda 24468-VE2-800

SPRING, WHEEL TENSION

$16.99

$

Usually ships in 3-6 days

0

9

Honda 51125-VE2-J00

HOLDER, WIRE

$

$

Not available

10

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

11

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 91204-KE8-003

OIL SEAL (13X22X5) (ARAI)

$4.49

$

In Stock, only 1 left!

0

13

Honda 94305-40252

PIN, SPRING (4X25)

$2.99

$

In Stock, Qty 8

0
