HRB215 SXA (MZBA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBA-6000001 - MZBA-6099999) ROTARY BLADE Parts Diagram

21" Walk-Behind Mower, Made in USA

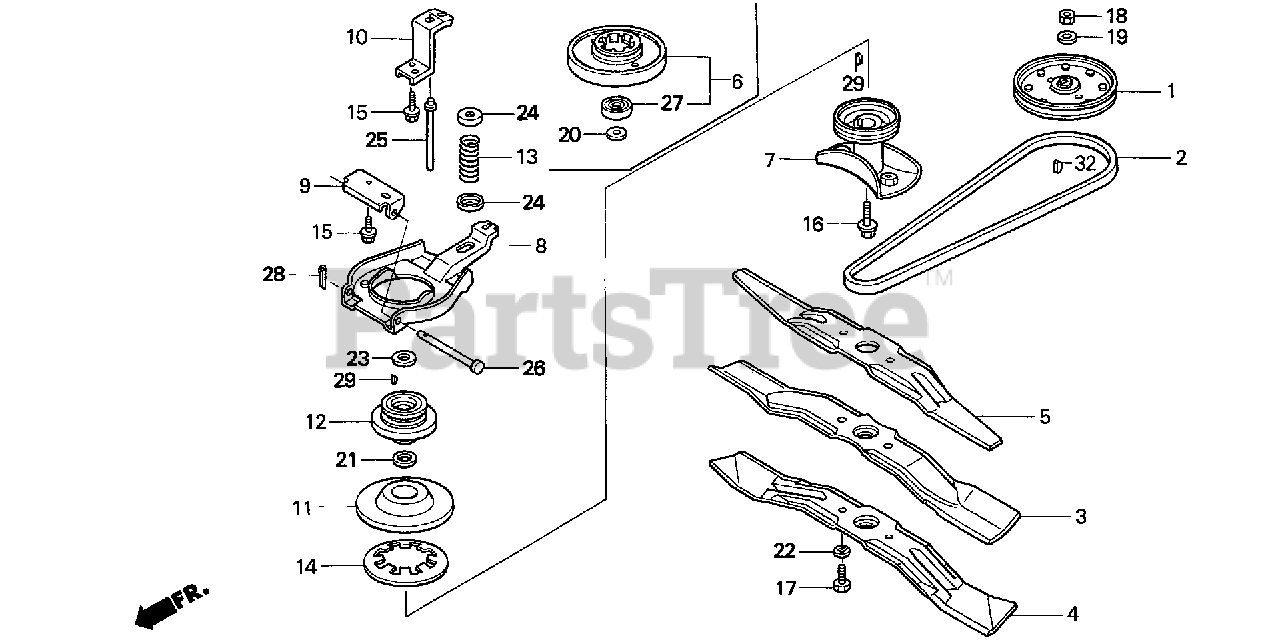

ROTARY BLADE Parts Diagram

  • Title

1

Honda 22420-VF0-000

SEE PART DETAILS - PRI; PULLEY, DRIVEN

$17.99

$

In Stock, Qty 7

0

2

Honda 22431-VE2-801

V-BELT (M-38)

$16.99

$

In Stock, only 1 left!

0

3

Honda 72511-VE1-010

SEE PART DETAILS - SUP; BLADE, ROTARY (BAGGING)
(Superseded to 72511-VE1-020)

$21.99

$

In Stock, only 4 left!

0

3

Honda 72511-VE1-020

SEE PART DETAILS - PRI; BLADE, ROTARY

$21.99

$

In Stock, only 4 left!

0

4

Honda 72511-VG4-K00

SEE PART DETAILS - PRI; BLADE, ROTARY (PCD=88MM)

Note: (Optional).

$21.99

$

In Stock, only 1 left!

0

5

Honda 72531-VE2-010

SEE PART DETAILS - SUP; BLADE, ROTARY (UPPER)
(Superseded to 72531-VE2-020)

Note: (Optional).

$20.99

$

In Stock, only 2 left!

0

5

Honda 72531-VE2-020

SEE PART DETAILS - PRI; BLADE, ROTARY (UPPER) (PCD=88MM)

Note: (Optional).

$20.99

$

In Stock, only 2 left!

0

6

Honda 72600-VE0-000

HOLDER ASSY., BLADE

$65.99

$

Usually ships in 3-6 days

0

8

Honda 75130-VE0-010

SEE PART DETAILS - SUP; ARM, BRAKE
(Superseded to 75130-VE0-020)

$173.99

$

Usually ships in 3-6 days

0

8

Honda 75130-VE0-020

SEE PART DETAILS - PRI; ARM, BRAKE (91MM)

$173.99

$

Usually ships in 3-6 days

0

9

Honda 75148-VE0-000

HINGE, CLUTCH ARM

$2.49

$

In Stock, only 2 left!

0

10

Honda 75149-VE0-000

HOLDER, CLUTCH RETURN SPRING

$5.99

$

Usually ships in 3-6 days

0

11

Honda 75151-VE0-000

DISK, DRIVEN

$64.99

$

Usually ships in 3-6 days

0

12

Honda 06751-VE1-305

SEE PART DETAILS - PRI; PULLEY KIT

$332.99

$

Usually ships in 3-6 days

0

12

Honda 06751-VE2-L00

SEE PART DETAILS - SUP; DRIVE PULLEY KIT
(Superseded to 06751-VE1-305)

$332.99

$

Usually ships in 3-6 days

0

13

Honda 75182-VE0-000

SPRING, CLUTCH RETURN

$3.49

$

Usually ships in 3-6 days

0

14

Honda 75183-VE0-000

SPRING, CLUTCH

$137.99

$

In Stock, only 1 left!

0

15

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

16

Honda 90105-VA3-J01

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

$1.99

$

In Stock, Qty 20+

0

17

Honda 90105-960-710

SEE PART DETAILS - PRI; BOLT, HEX. (10X20)

$2.49

$

In Stock, Qty 20+

0

18

Honda 90301-VE2-800

NUT, U (10MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 90409-952-000

WASHER (10MM)

$3.49

$

In Stock, only 2 left!

0

21

Honda 90453-KZ4-000

WASHER, THRUST (20X30X1.5)

$5.99

$

Usually ships in 3-6 days

0

22

Honda 90481-430-000

WASHER, SPRING (10MM)

$8.99

$

In Stock, only 1 left!

0

23

Honda 90501-952-010

SEE PART DETAILS - PRI; WASHER, THRUST

$5.49

$

In Stock, only 1 left!

0

24

Honda 90557-461-000

WASHER, SPECIAL (10MM)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90701-VE0-000

PIN, SPRING GUIDE

$44.99

$

Usually ships in 3-6 days

0

26

Honda 90756-735-000

PIN, HOOD HINGE

$9.49

$

Usually ships in 3-6 days

0

27

Honda 91102-VA4-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$25.99

$

In Stock, only 4 left!

0

28

Honda 94201-20150

PIN, SPLIT (2.0X15)

$1.49

$

In Stock, only 2 left!

0

29

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, only 4 left!

0

32

Honda 90751-VE2-M00

KEY, WOODRUFF

$0.99

$

In Stock, Qty 6

0
