HRB215 SXA (MZBA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBA-6000001 - MZBA-6099999) HANDLEBAR (PDA, PXA, SDA, SXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

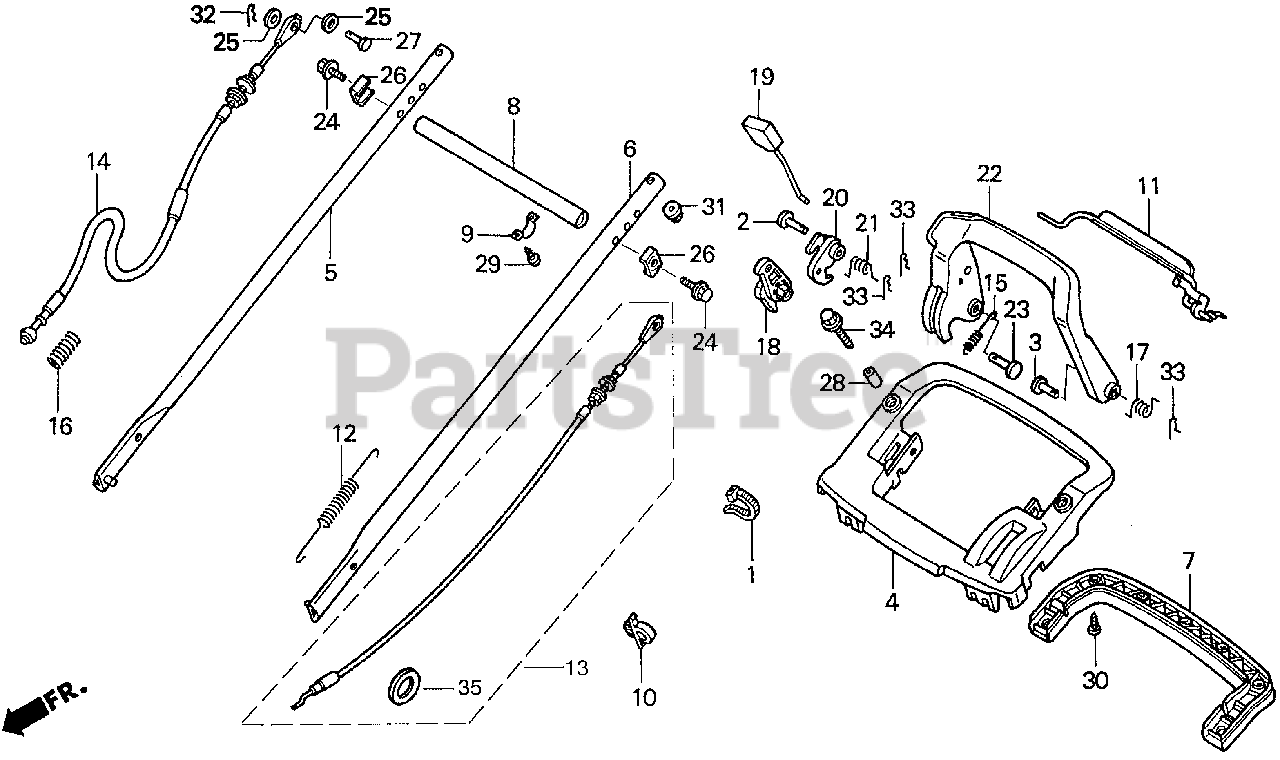

HANDLEBAR (PDA, PXA, SDA, SXA) Parts Diagram

  • Title

1

Honda 32901-VB5-800

TIE, CABLE

$3.49

$

In Stock, only 2 left!

0

2

Honda 50603-KB4-000

PIN, STEP BAR JOINT

$6.49

$

Usually ships in 3-6 days

0

3

Honda 50603-MC4-000

PIN, STEP BAR JOINT

$6.49

$

Usually ships in 3-6 days

0

4

Honda 53110-VE0-000

HANDLE (UPPER)

$

$

Not available

5

Honda 53150-VE0-000ZA

HANDLE *NH246* (LOOSY GRAY) (NOT AVAILABLE)

$

$

Not available

6

Honda 53150-VE0-000ZA

HANDLE *NH246* (LOOSY GRAY) (NOT AVAILABLE)

$

$

Not available

7

Honda 53165-VE0-000

GRIP, HANDLE

$14.99

$

Usually ships in 3-6 days

0

8

Honda 53168-VE0-000ZA

PIPE, HANDLE CONNECTING *NH246* (LOOSY GRAY)

$27.99

$

Usually ships in 3-6 days

0

9

Honda 53169-VE0-000

PLATE, HANDLE CONNECTING

$0.99

$

Usually ships in 3-6 days

0

10

Honda 53735-SE0-961

CLIP, POWER STEERING SUCTION TUBE

$14.99

$

Usually ships in 3-6 days

0

11

Honda 54410-VE0-801

LEVER, CLUTCH

$27.99

$

Usually ships in 3-6 days

0

12

Honda 54411-VE2-800

SPRING, CLUTCH LEVER

$29.99

$

Usually ships in 3-6 days

0

13

Honda 54510-VE2-305

SEE PART DETAILS - PRI; CABLE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

14

Honda 54530-VE0-003

CABLE, ROTO-STOP CLUTCH

$31.99

$

In Stock, only 1 left!

0

17

Honda 75118-VE0-000

SPRING, R. STOP RETURN

$89.99

$

In Stock, only 1 left!

0

18

Honda 75128-VE0-000

ARM, ROTO-STOP CABLE

$24.99

$

Usually ships in 3-6 days

0

19

Honda 75165-VE0-000

ROD, RATCHET PUSH

$

$

Not available

20

Honda 75166-VE0-000

LEVER, LOCK

$1.99

$

Usually ships in 3-6 days

0

21

Honda 75168-VE0-000

SPRING, RATCHET PIN

$0.99

$

In Stock, Qty 9

0

22

Honda 75191-VE0-000

LEVER, ROTO-STOP

$

$

Not available

23

Honda 77226-750-003

PIN, SEAT BASE (8MM)

$6.49

$

Usually ships in 3-6 days

0

24

Honda 90101-VE0-000

BOLT, HANDLE JOINT

$0.99

$

In Stock, Qty 8

0

26

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 10

0

27

Honda 90754-VA3-J00

PIN, CABLE JOINT (6X17)

$4.49

$

Usually ships in 3-6 days

0

28

Honda 91553-VE0-000

COLLAR, HANDLE

$11.99

$

Usually ships in 3-6 days

0

29

Honda 93911-24120

SCREW, TAPPING (4X10) (PO)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 93913-24320

SCREW, TAPPING (4X12)

$1.49

$

In Stock, only 4 left!

0

31

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

32

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

33

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

34

Honda 95701-08045-00

BOLT, FLANGE (8X45)

$1.99

$

In Stock, Qty 20+

0

35

Honda 90407-952-300

WASHER, SPECIAL (6MM)

$3.99

$

In Stock, only 2 left!

0
