HRB215 PXA (MZBA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBA-6000001 - MZBA-6099999) REAR WHEEL (PDA, PXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

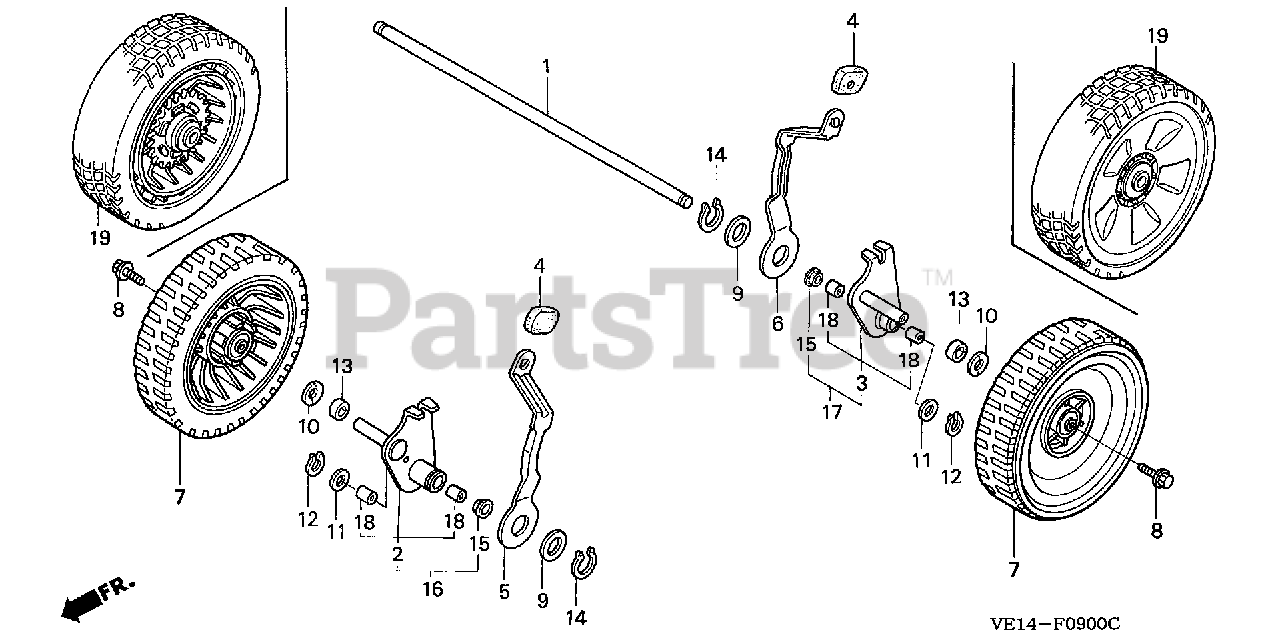

REAR WHEEL (PDA, PXA) Parts Diagram

  • Title

1

Honda 23371-VE2-000

SHAFT, WHEEL

$7.49

$

Usually ships in 3-6 days

0

2

Honda 42930-VE2-030

ARM, R. RR. ADJUSTING

$25.99

$

In Stock, Qty 7

0

3

Honda 42940-VE2-030

ARM, L. RR. ADJUSTING

$21.99

$

Usually ships in 3-6 days

0

4

Honda 42952-VA4-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 1 left!

0

5

Honda 42961-VE2-000

PLATE, R. RR. ADJUSTER

$11.99

$

Usually ships in 3-6 days

0

6

Honda 42966-VE2-000

PLATE, L. RR. ADJUSTER

$11.99

$

In Stock, only 1 left!

0

7

Honda 44710-VE0-000

WHEEL, FR. (PART DESCRIPTION SAYS "FR." BUT IT IS ALSO USED FOR REAR)

$53.99

$

Usually ships in 3-6 days

0

8

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

9

Honda 90403-952-770

WASHER, PLAIN (22MM)

$2.99

$

In Stock, only 3 left!

0

10

Honda 90455-VA2-000

WASHER, WHEEL

$4.49

$

In Stock, Qty 20+

0

11

Honda 90502-VE2-800

WASHER, THRUST (13MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 90651-VE2-800

CIRCLIP (OUTER) (12.7MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 91556-VE2-000

COLLAR, WHEEL

$7.99

$

Usually ships in 3-6 days

0

14

Honda 94511-22000

CIRCLIP (OUTER) (22MM)

$1.99

$

In Stock, Qty 20+

0
