HRB215 K4 HXA/A (MZBA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBA-6427367 - MZBA-9999999) TRANSMISSION (HXA) Parts Diagram

21" Walk-Behind Mower, Made in USA

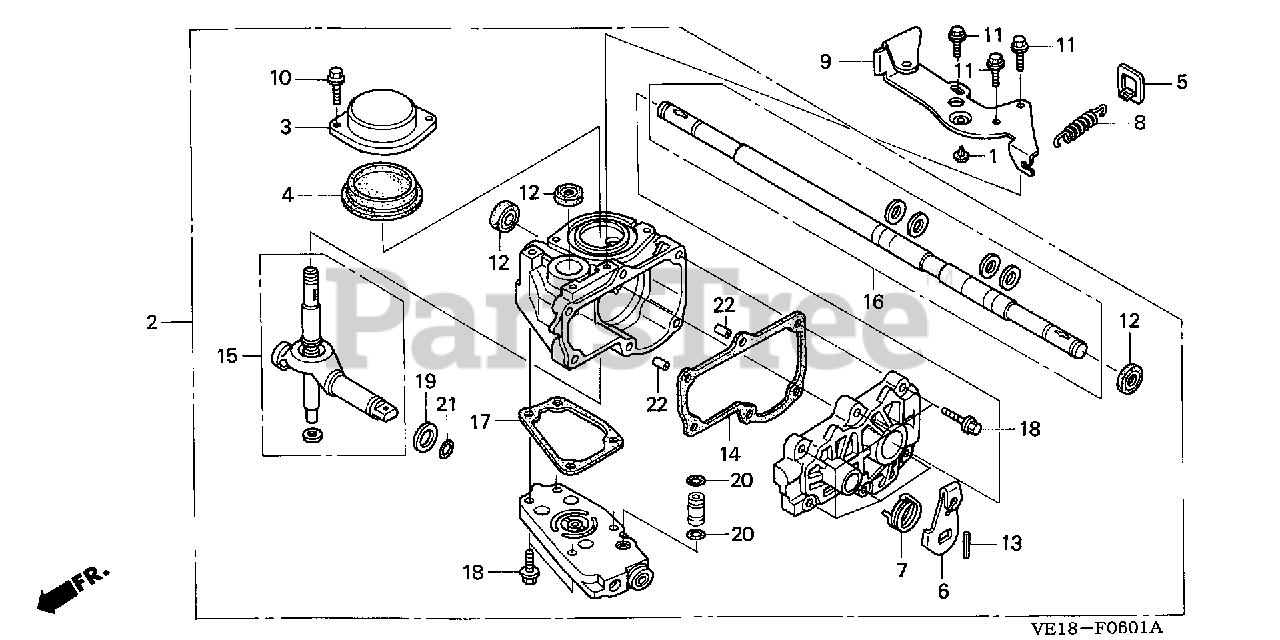

TRANSMISSION (HXA) Parts Diagram

  • Title
1

Honda 17502-GAA-000

RUBBER, TANK STOPPER

$5.49

$

Usually ships in 3-6 days

0

2

Honda 20001-VE5-A20

SEE PART DETAILS - PRI; TRANSMISSION ASSY.
(Superseded to 20001-VE5-A21)

$418.99

$

Usually ships in 3-6 days

0

2

Honda 20011-VE5-711

SEE PART DETAILS - SUP; TRANSMISSION ASSY.
(Superseded to 20001-VE5-A21)

$418.99

$

Usually ships in 3-6 days

0

3

Honda 21230-VE5-A00

SEE PART DETAILS - PRI; CAP, OIL

$8.49

$

Usually ships in 3-6 days

0

3

Honda 21230-VE5-000

SEE PART DETAILS - SUP; CAP, OIL

$

$

Not available

4

Honda 21235-VE5-A00

SEE PART DETAILS - PRI; GASKET, OIL CAP

$6.99

$

In Stock, only 1 left!

0

4

Honda 21235-VE5-000

SEE PART DETAILS - SUP; GASKET, OIL CAP
(Superseded to 21235-VE5-A00)

$6.99

$

In Stock, only 1 left!

0

5

Honda 21557-VE2-800

PLATE, TENSION SPRING

$20.99

$

In Stock, only 1 left!

0

6

Honda 22533-VE5-010

SEE PART DETAILS - SUP; ARM, CONTROL
(Superseded to 22533-VE5-A00)

$2.99

$

Usually ships in 3-6 days

0

7

Honda 24134-VE5-A00

SEE PART DETAILS - PRI; SPRING, CONTROL ARM RETURN

$1.49

$

In Stock, Qty 20+

0

8

Honda 24468-VE2-800

SPRING, WHEEL TENSION

$16.99

$

Usually ships in 3-6 days

0

9

Honda 51125-VE2-J00

HOLDER, WIRE

$

$

Not available

10

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

11

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 91204-KE8-003

OIL SEAL (13X22X5) (ARAI)

$4.49

$

In Stock, only 1 left!

0

13

Honda 94305-40252

PIN, SPRING (4X25)

$2.99

$

In Stock, Qty 8

0

14

Honda 21115-VE5-000

GASKET, TRANSMISSION CASE

$11.99

$

Usually ships in 3-6 days

0

15

Honda 25010-VE5-000

SHAFT SET, PUMP (NA USE ALT:20011-VE5-711)

$

$

Currently unavailable

16

Honda 25013-VE5-710

SHAFT SET, MOTOR (NA USE ALT:20011-VE5-711)

$

$

Currently unavailable

17

Honda 25513-VE5-000

GASKET, DISTRIBUTOR

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90123-VA4-800

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90453-235-000

WASHER, THRUST (16MM)

$2.49

$

In Stock, only 4 left!

0

20

Honda 91351-VE5-000

O-RING (7.3X1.9) (NA USE ALT:20011-VE5-711)

$

$

Currently unavailable

21

Honda 91352-VE5-000

O-RING (11.8X2.6) (NA USE ALT:20011-VE5-711)

$

$

Currently unavailable

22

Honda 94301-08100

PIN, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0
