HRB215 K4 HXA/A (MZBA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBA-6427367 - MZBA-9999999) GRASS BAG Parts Diagram

21" Walk-Behind Mower, Made in USA

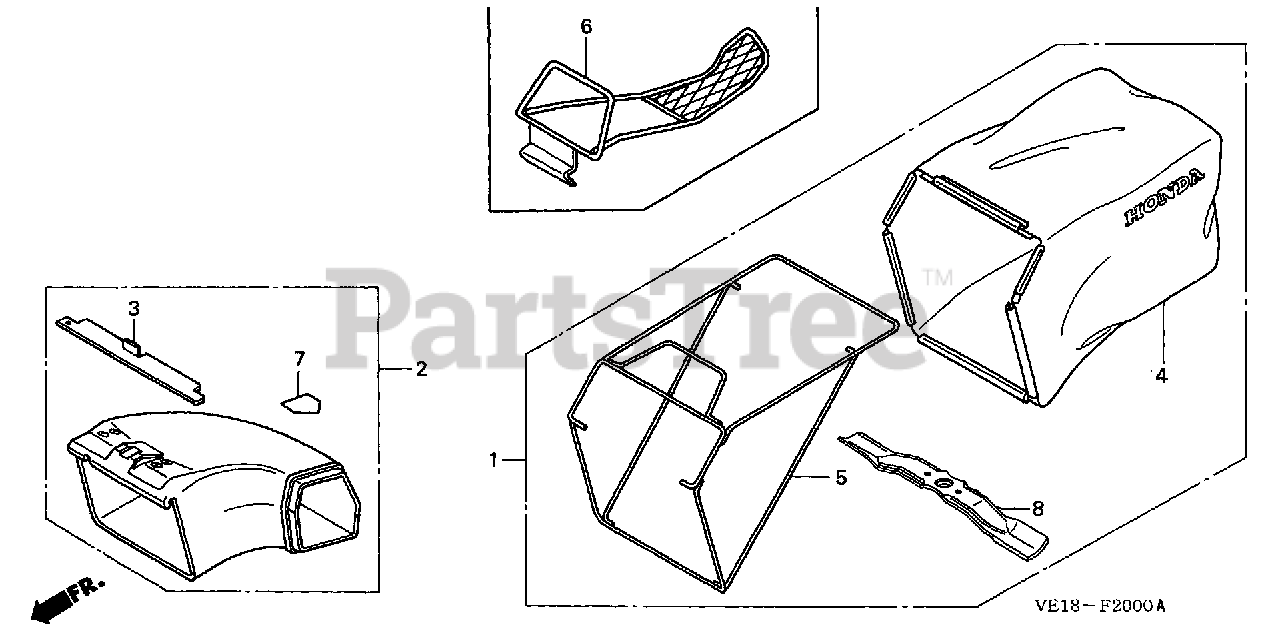

GRASS BAG Parts Diagram

  • Title

2

Honda 06814-VE2-030

SEE PART DETAILS - PRI; CHUTE KIT, SIDE DISCHARGE

Note: (Optional).

$74.99

$

In Stock, only 2 left!

0

3

Honda 81212-VB5-003

BRACKET, MOUNTING (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

4

Honda 81320-VE1-T00

FABRIC, GRASS BAG
(Superseded to 81320-VE1-T10)

$120.99

$

In Stock, only 2 left!

0

5

Honda 81330-VE1-T00

FRAME, BAG

$246.99

$

In Stock, only 1 left!

0

6

Honda 81510-VE2-000

SEE PART DETAILS - PRI; SHREDDER, LEAF

Note: (Optional).

$44.99

$

Usually ships in 3-6 days

0

7

Honda 87103-952-010

SEE PART DETAILS - SUP; LABEL B, HOUSING CAUTION (ENGLISH)
(Superseded to 87104-VA2-000)

Note: (Optional).

$1.99

$

In Stock, only 4 left!

0

7

Honda 87104-VA2-000

SEE PART DETAILS - PRI; CAUTION C, HOUSING

Note: (Optional).

$1.99

$

In Stock, only 4 left!

0
