HRB215 K4 HXA/A (MZBA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBA-6427367 - MZBA-9999999) CONTROL Parts Diagram

21" Walk-Behind Mower, Made in USA

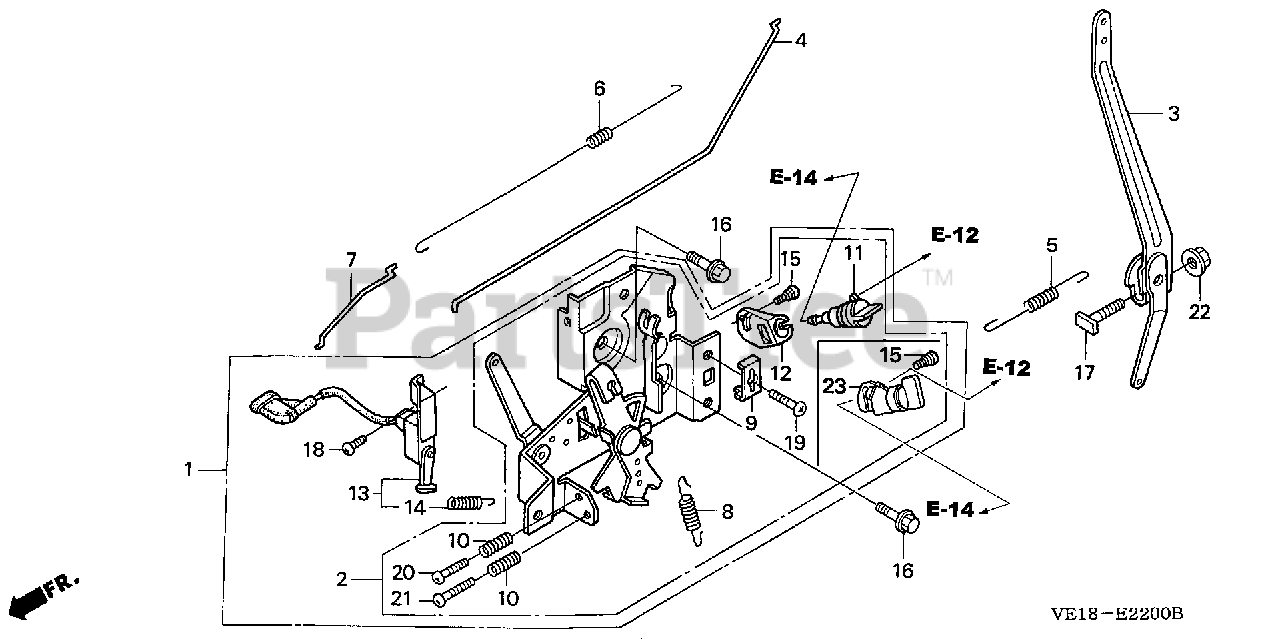

CONTROL Parts Diagram

  • Title

1

Honda 16500-ZG9-M11

CONTROL ASSY.
(Superseded to 04102-ZG9-M10)

Note: Use up to Engine SN 7761237.

$208.99

$

Usually ships in 3-6 days

0

1

Honda 16500-ZG9-M12

CONTROL ASSY. (NOT AVAILABLE)

Note: Use from Engine SN 7761238.

$

$

Currently unavailable

3

Honda 16551-ZE6-000

ARM, GOVERNOR

$

$

Not available

4

Honda 16555-ZE6-000

ROD, GOVERNOR

$

$

Not available

5

Honda 16561-ZE6-010

SPRING, GOVERNOR

$4.99

$

In Stock, only 1 left!

0

6

Honda 16562-ZE6-000

SPRING, THROTTLE RETURN

$5.49

$

Usually ships in 3-6 days

0

7

Honda 16573-ZE6-010

ROD, CHOKE

$3.49

$

In Stock, only 1 left!

0

8

Honda 16574-ZG9-M00

SPRING, LEVER

$

$

Not available

9

Honda 16576-891-000

HOLDER, CABLE

$5.49

$

In Stock, only 1 left!

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

11

Honda 04103-Z0L-000

SEE PART DETAILS - PRI; PETCOCK ASSY.

Note: Use up to Engine SN 7761237.

$48.99

$

In Stock, only 1 left!

0

11

Honda 16950-ZG9-M03

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 04103-Z0L-000)

Note: Use up to Engine SN 7761237.

$48.99

$

In Stock, only 1 left!

0

12

Honda 16956-ZG9-M00

SEE PART DETAILS - SUP; BRACKET, PETCOCK
(Superseded to 16956-ZM0-000)

Note: Use up to Engine SN 7761237.

$3.49

$

In Stock, only 1 left!

0

12

Honda 16956-ZM0-000

SEE PART DETAILS - PRI; BRACKET, PETCOCK

Note: Use up to Engine SN 7761237.

$3.49

$

In Stock, only 1 left!

0

13

Honda 36100-ZE6-003

SWITCH ASSY., ENGINE STOP

$24.99

$

In Stock, only 1 left!

0

14

Honda 36120-ZE6-010

SPRING, SWITCH CONTROL

$3.99

$

In Stock, only 2 left!

0

15

Honda 90006-ZG9-M00

SCREW, SHOULDER (5X12)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

17

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

18

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

19

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

20

Honda 93500-05020-0A

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-05025-0A

SCREW, PAN (5X25)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 16950-ZM0-003

PETCOCK ASSY.

Note: Use from Engine SN 7761238.

$9.99

$

In Stock, Qty 12

0
