HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) THROTTLE LEVER Parts Diagram

21" Walk-Behind Mower, Made in USA

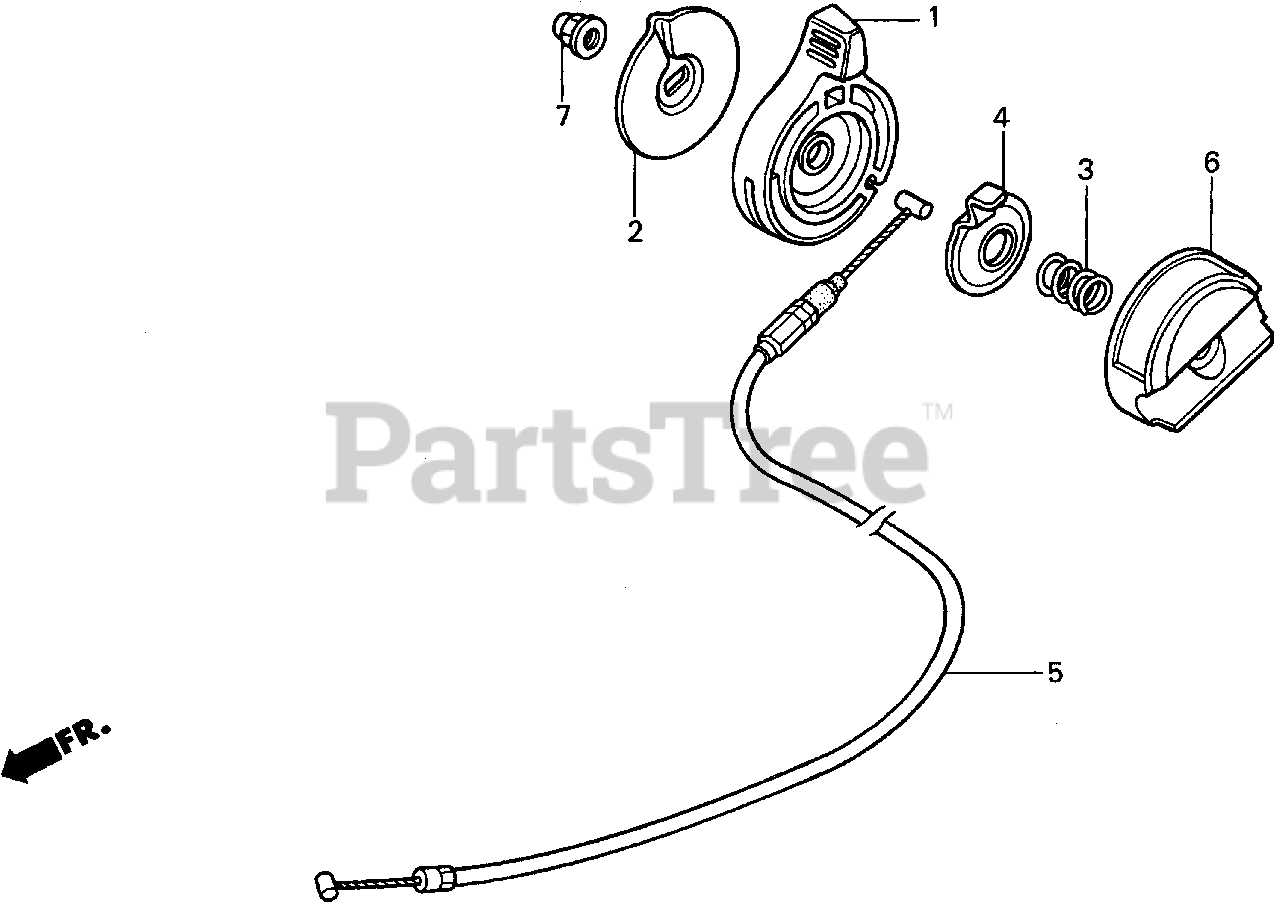

THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17851-VA4-000

LEVER, THROTTLE

$11.99

$

Usually ships in 3-6 days

0

2

Honda 17857-VA4-000

PLATE, THROTTLE LEVER

$7.49

$

Usually ships in 3-6 days

0

3

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

4

Honda 17859-VA4-000

SEAT, SPRING

$5.99

$

Usually ships in 3-6 days

0

5

Honda 17910-VA4-800

SEE PART DETAILS - SUP; CABLE, THROTTLE
(Superseded to 17910-VB5-A01)

$15.99

$

In Stock, Qty 5

0

6

Honda 54231-VB5-800

COVER, CONTROL

$9.49

$

Usually ships in 3-6 days

0

7

Honda 90201-415-000

NUT, CAP (6MM) (Honda Code 0670729).

Note: Use up to Frame SN 3026626.

$2.99

$

Usually ships in 3-6 days

0

7

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use from Frame SN 3026627.

$0.99

$

In Stock, Qty 20+

0

7

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
