HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) ROTARY BLADE Parts Diagram

21" Walk-Behind Mower, Made in USA

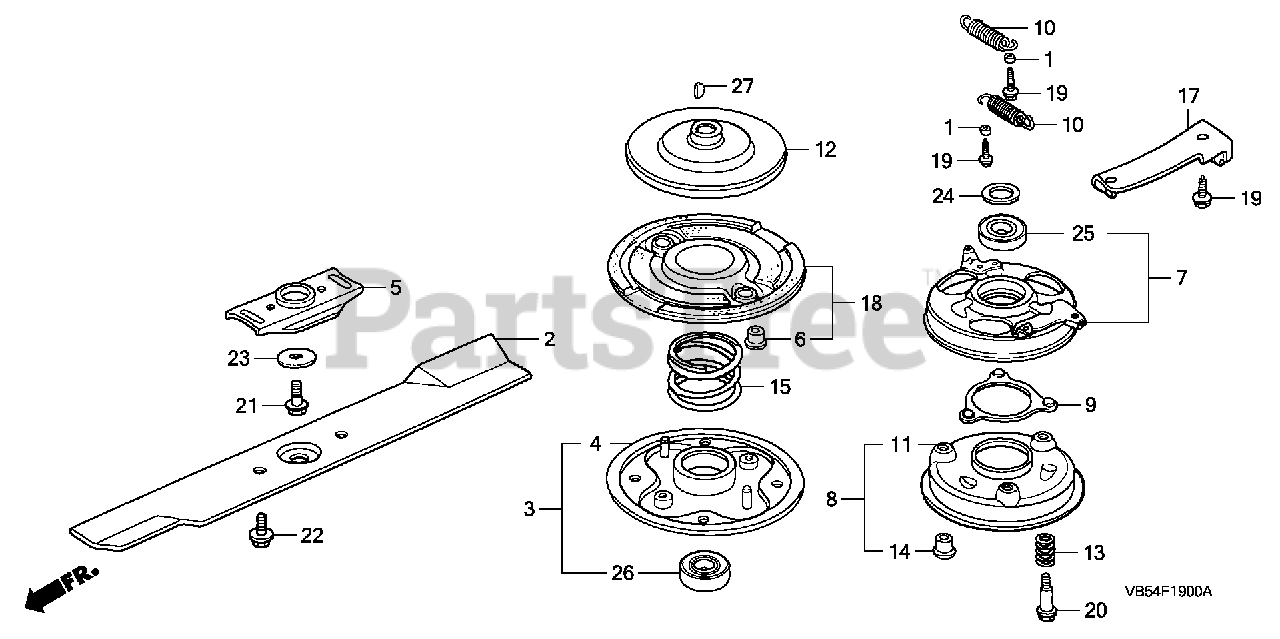

ROTARY BLADE Parts Diagram

  • Title

1

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

2

Honda M2100-576-91938

SEE PART DETAILS - SUP; BLADE, ROTARY
(Superseded to 72511-VA2-690)

$23.99

$

In Stock, Qty 10

0

2

Honda 72511-VA2-010

BLADE, ROTARY
(Superseded to 72511-VA2-690)

Note: Use from Frame SN 3015149.

$23.99

$

In Stock, Qty 10

0

2

Honda 72511-VA2-690

SEE PART DETAILS - PRI; BLADE, ROTARY (21")

$23.99

$

In Stock, Qty 10

0

2

Honda 72511-VA4-000

SEE PART DETAILS - SUP; BLADE, ROTARY
(Superseded to 72511-VA2-690)

$23.99

$

In Stock, Qty 10

0

2

Honda 72511-960-000

SEE PART DETAILS - SUP; BLADE, ROTARY
(Superseded to 72511-VA2-690)

$23.99

$

In Stock, Qty 10

0

2

Honda 72511-960-004

SEE PART DETAILS - SUP; BLADE, ROTARY
(Superseded to 72511-VA2-690)

$23.99

$

In Stock, Qty 10

0

2

Honda 72511-960-020

SEE PART DETAILS - SUP; BLADE, ROTARY
(Superseded to 72511-VA2-690)

$23.99

$

In Stock, Qty 10

0

3

Honda 72600-VA4-010

HOLDER ASSY., BLADE

$103.99

$

In Stock, Qty 6

0

4

Honda 72610-VA4-000

HOLDER, BLADE

$45.99

$

In Stock, Qty 5

0

5

Honda 72612-VA4-000

HOLDER, BLADE

$86.99

$

Usually ships in 3-6 days

0

6

Honda 72613-VA4-000

BUSH, BLADE HOLDER

$4.99

$

In Stock, Qty 20+

0

7

Honda 75090-VA4-000

SEE PART DETAILS - SUP; PLATE ASSY., BALL CONTROL
(Superseded to 04101-VA4-000)

$

$

Not available

7

Honda 75090-VA4-020

SEE PART DETAILS - SUP; PLATE ASSY., BALL CONTROL
(Superseded to 75090-VA4-030)

$111.99

$

Usually ships in 3-6 days

0

8

Honda 75100-VA4-010

BRAKE

$101.99

$

Usually ships in 3-6 days

0

9

Honda 75110-VA4-000

RETAINER, BALL

$7.99

$

In Stock, Qty 9

0

10

Honda 75113-VB3-800

SPRING, CLUTCH RETURN (63.4MM)

$

$

Not available

11

Honda 75120-VA4-010

DISK, BRAKE

$93.99

$

Usually ships in 3-6 days

0

12

Honda 75130-VA4-000

DISK, DRIVE

$155.99

$

In Stock, only 2 left!

0

13

Honda 75132-VA4-000

SPRING, BRAKE HOLDER

$4.49

$

In Stock, Qty 10

0

14

Honda 75133-VA4-000

BUSH, BRAKE HOLDER

$4.99

$

In Stock, only 3 left!

0

15

Honda 75135-VB3-800

SPRING, CLUTCH (38.7MM) (NOT AVAILABLE)

$

$

Not available

16

Honda 75140-VA4-010

PLATE, BALL CONTROL
(Superseded to 75140-VA4-020)

$88.99

$

Usually ships in 3-6 days

0

16

Honda 75140-VA4-020

SEE PART DETAILS - PRI; PLATE, BALL CONTROL

$88.99

$

Usually ships in 3-6 days

0

17

Honda 75142-VB3-803

SEE PART DETAILS - PRI; PLATE, CABLE HOOK

$14.99

$

Usually ships in 3-6 days

0

18

Honda 75150-VK6-000

SEE PART DETAILS - PRI; DISK, DRIVEN

$106.99

$

In Stock, Qty 8

0

19

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, Qty 12

0

20

Honda 90021-VA4-000

BOLT, SPECIAL (6MM)

$6.49

$

In Stock, Qty 13

0

21

Honda 90105-VA3-J01

SEE PART DETAILS - PRI; BOLT, HEX. (10X25)

$2.49

$

In Stock, Qty 20+

0

22

Honda 90105-960-710

SEE PART DETAILS - PRI; BOLT, HEX. (10X20)

$2.49

$

In Stock, Qty 20+

0

23

Honda 90401-880-000

WASHER (10X30X3.5T)

$11.99

$

In Stock, Qty 13

0

24

Honda 90501-952-010

SEE PART DETAILS - PRI; WASHER, THRUST (22X32X3)

$5.99

$

In Stock, Qty 11

0

25

Honda 91103-VA4-003

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22UU)

$19.99

$

In Stock, only 3 left!

0

26

Honda 91102-VA4-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$26.99

$

In Stock, Qty 12

0

27

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, only 4 left!

0
