HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) LABELS Parts Diagram

21" Walk-Behind Mower, Made in USA

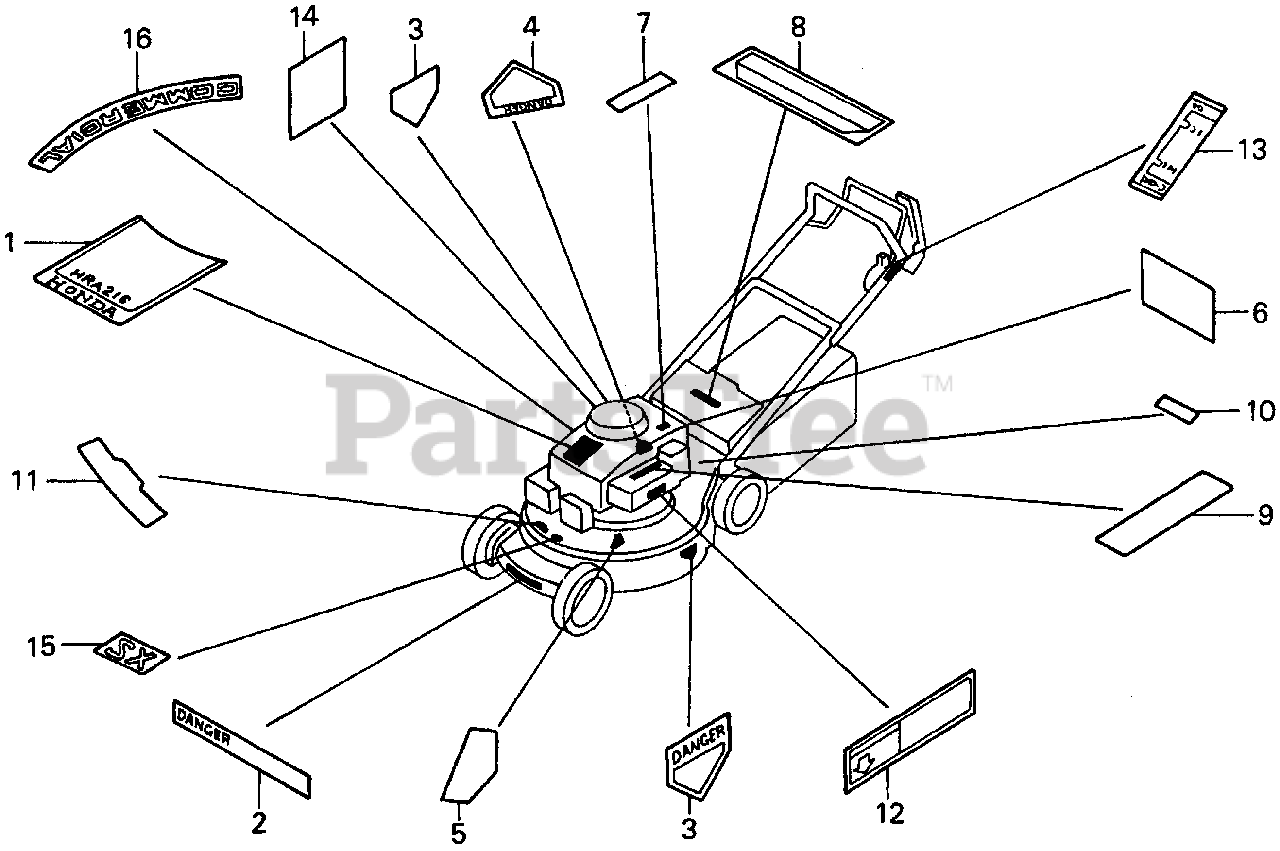

LABELS Parts Diagram

  • Title

1

Honda 87101-VB5-800

EMBLEM, TOP

$

$

Not available

2

Honda 87102-VA3-000

SEE PART DETAILS - PRI; LABEL A, HOUSING CAUTION (ENGLISH)

Note: Use from Frame SN 3021574.

$

$

Not available

2

Honda 87102-VA3-000

SEE PART DETAILS - PRI; LABEL A, HOUSING CAUTION (ENGLISH)

$

$

Not available

2

Honda 87102-VB3-800

LABEL A, HOUSING CAUTION (ENGLISH)

Note: Use up to Frame SN 3021573.

$

$

Currently unavailable

2

Honda 87102-VB3-800

LABEL A, HOUSING CAUTION (ENGLISH)

$

$

Currently unavailable

3

Honda 87103-VB3-800

CAUTION B, HOUSING

Note: Use up to Frame SN 3020433.

$1.99

$

Usually ships in 3-6 days

0

3

Honda 87104-VA2-000

SEE PART DETAILS - PRI; LABEL C, HOUSING CAUTION

Note: Use from Frame SN 3020434.

$1.99

$

In Stock, only 4 left!

0

3

Honda 87104-VA2-000

SEE PART DETAILS - PRI; LABEL C, HOUSING CAUTION

$1.99

$

In Stock, only 4 left!

0

4

Honda 87103-959-620

SEE PART DETAILS - SUP; LABEL B, HOUSING CAUTION
(Superseded to 87104-VA2-000)

Note: Use up to Frame SN 3021573.

$1.99

$

In Stock, only 4 left!

0

4

Honda 87103-959-620

SEE PART DETAILS - SUP; LABEL B, HOUSING CAUTION
(Superseded to 87104-VA2-000)

$1.99

$

In Stock, only 4 left!

0

4

Honda 87104-VA2-000

SEE PART DETAILS - PRI; LABEL C, HOUSING CAUTION

Note: Use from Frame SN 3021574.

$1.99

$

In Stock, only 4 left!

0

4

Honda 87104-VA2-000

SEE PART DETAILS - PRI; LABEL C, HOUSING CAUTION

$1.99

$

In Stock, only 4 left!

0

5

Honda 87104-VB3-800

LABEL, STEP POSITION (ENGLISH)

$

$

Not available

6

Honda 87105-VB3-800

CAUTION, OPERATOR (ENGLISH)

$

$

Not available

6

Honda 87105-VB3-K30

CAUTION, OPERATOR (ENGLISH) (NOT AVAILABLE)

$

$

Not available

7

Honda 87106-960-000

LABEL, FUEL CAUTION (ENGLISH)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 87107-VA4-000

LABEL, DISCHARGE GUARD CAUTION (ENGLISH) (NOT AVAILABLE)

$

$

Not available

9

Honda 87154-VA4-000

MARK, EASY START (ENGLISH)

$

$

Not available

10

Honda 87502-VA4-800

LABEL, CHANGE INDICATION

$4.99

$

Usually ships in 3-6 days

0

11

Honda 87509-VB3-800

LABEL, PLUG CAUTION

$

$

Not available

12

Honda 87524-ZE7-000

LABEL, AIR CLEANER CAUTION (H)

$

$

Not available

13

Honda 87532-VA4-000

MARK, THROTTLE (ENGLISH)

$2.99

$

In Stock, only 1 left!

0

14

Honda 87594-VA4-010

MARK, OIL CAUTION (Honda Code 2274041).

$5.49

$

Usually ships in 3-6 days

0

15

Honda 87601-960-770

MARK, TYPE (SX)

$

$

Not available

16

Honda 87602-VB5-800

MARK, COMMERCIAL

$18.99

$

Usually ships in 3-6 days

0
