HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) FRONT WHEELS Parts Diagram

21" Walk-Behind Mower, Made in USA

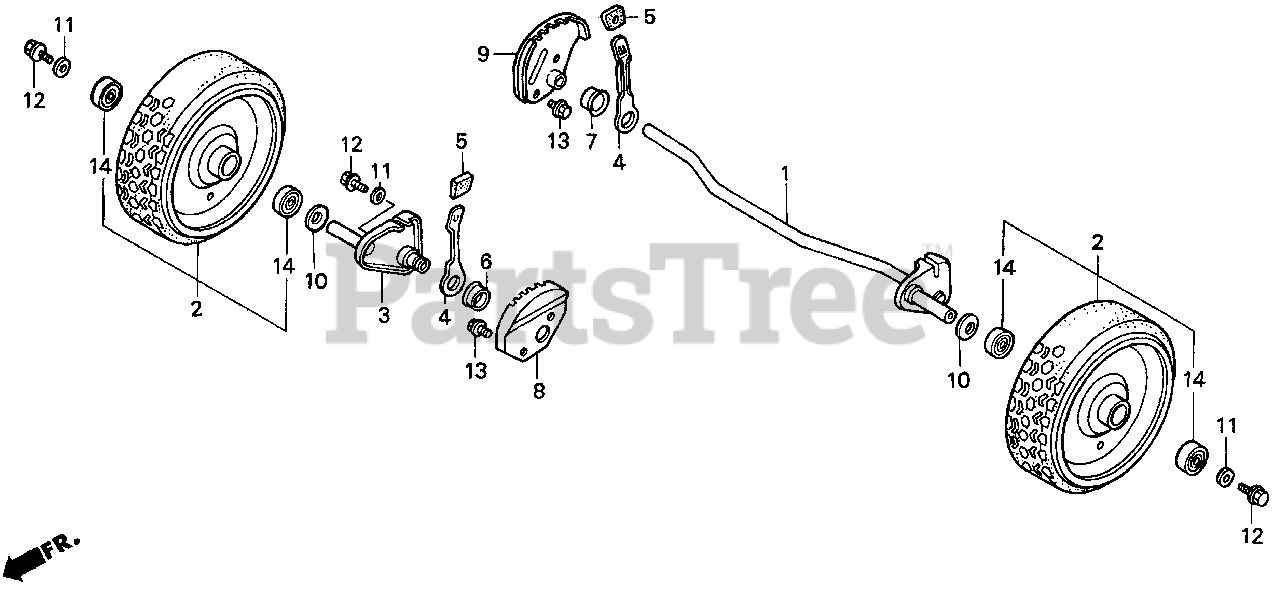

FRONT WHEELS Parts Diagram

  • Title

NI

Honda 42861-VB5-J00

TIRE (9")

$

$

Not available

NI

Honda 42861-VB5-J00

TIRE (9")

$

$

Not available

NI

Honda 42861-VB5-800

TIRE (9")

$44.99

$

Usually ships in 3-6 days

0

1

Honda 42610-VB5-800

SHAFT, FR. AXLE

$100.99

$

Usually ships in 3-6 days

0

2

Honda 42710-VB5-802

SEE PART DETAILS - SUP; WHEEL (9")
(Superseded to 42710-VB5-803)

$76.99

$

Usually ships in 3-6 days

0

2

Honda 42710-VB5-803

SEE PART DETAILS - PRI; WHEEL (9")

$76.99

$

Usually ships in 3-6 days

0

3

Honda 42910-VB5-801

ARM, R. FR. ADJUSTER

$

$

Not available

4

Honda 42951-VB5-800

PLATE, FR. ADJUSTER

$16.99

$

In Stock, Qty 12

0

5

Honda 42952-VA4-000

GRIP, ADJUSTER

$5.99

$

In Stock, only 1 left!

0

6

Honda 42955-VB5-801

SEE PART DETAILS - PRI; DUST SEAL, R.

$4.99

$

In Stock, Qty 20+

0

7

Honda 42956-VB5-801

DUST SEAL, L.

$6.99

$

In Stock, Qty 8

0

8

Honda 42981-VB5-801

PANEL, R. FR. ADJUSTER (NOT AVAILABLE)

$

$

Not available

9

Honda 42982-VB5-800

PANEL, L. FR. ADJUSTER (NOT AVAILABLE)

$17.99

$

Usually ships in 3-6 days

0

10

Honda 90455-VA2-000

WASHER, WHEEL

Note: Use from Frame SN 3000787.

$4.99

$

In Stock, Qty 20+

0

10

Honda 90455-VA2-000

WASHER, WHEEL

$4.99

$

In Stock, Qty 20+

0

11

Honda 90505-SD9-000

WASHER, RR. ENGINE MOUNTING

$10.99

$

In Stock, only 2 left!

0

12

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 13

0

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

14

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$17.99

$

In Stock, Qty 20+

0
