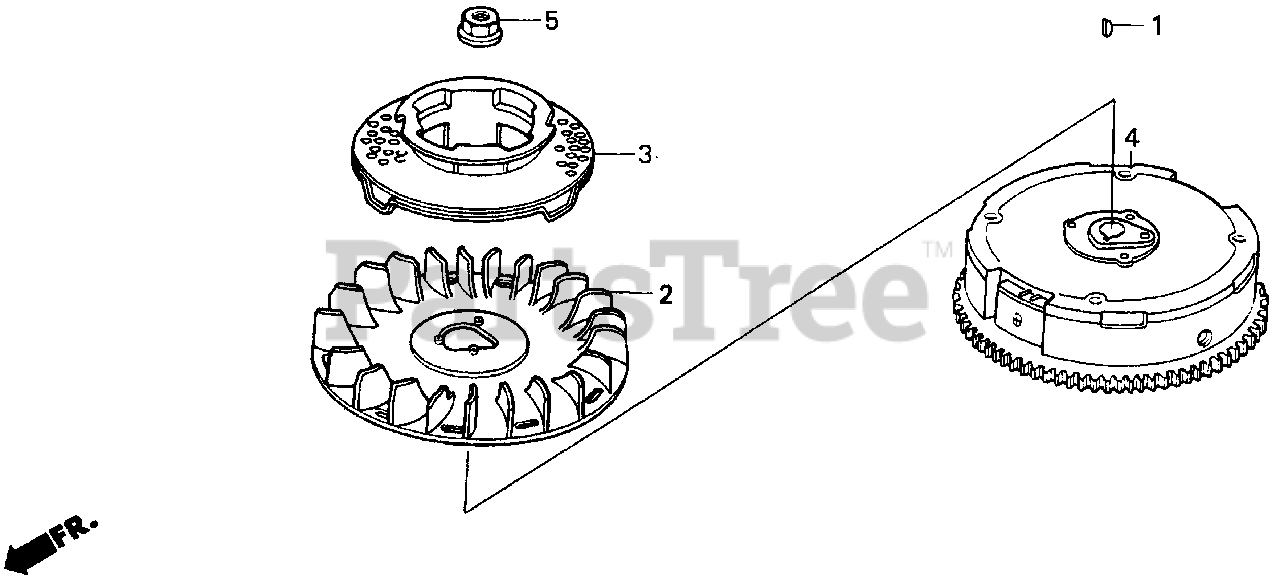

HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) FLYWHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

FLYWHEEL Parts Diagram

  • Title
1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$4.99

$

In Stock, Qty 7

0

2

Honda 19511-ZE1-000

FAN, COOLING (Honda Code 1428051).

$30.99

$

Usually ships in 3-6 days

0

3

Honda 28451-ZE7-003

PULLEY, STARTER

$

$

Not available

4

Honda 31100-ZE7-000

FLYWHEEL (STD)
(Superseded to 31100-ZE7-010)

$149.99

$

Usually ships in 3-6 days

0

5

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0
