HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) FAN COVER Parts Diagram

21" Walk-Behind Mower, Made in USA

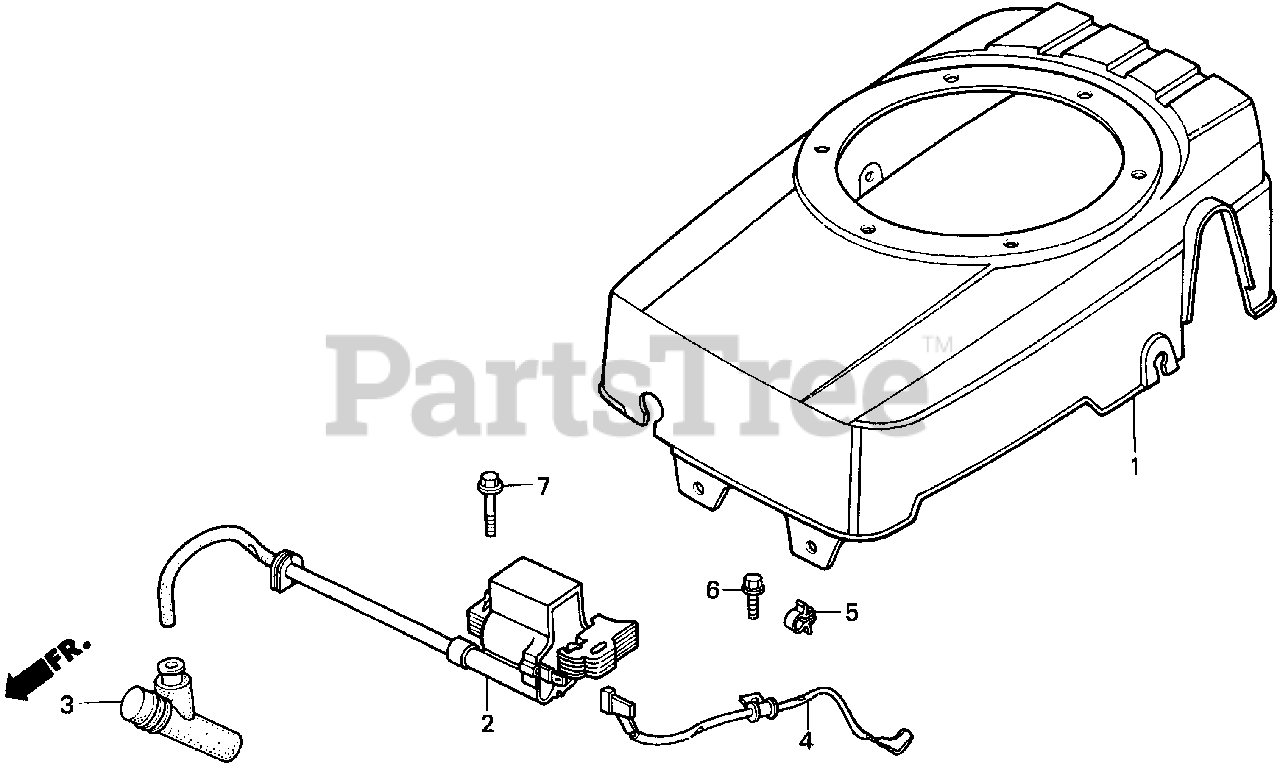

FAN COVER Parts Diagram

  • Title
1

Honda 19610-ZE7-505

COVER, FAN

Note: Use from Engine SN 1179926.

$119.99

$

Usually ships in 3-6 days

0

1

Honda 19610-ZE7-770

COVER, FAN

Note: Use up to Engine SN 1179925.

$

$

Not available

2

Honda 30500-ZE7-003

COIL ASSY., IGNITION (NOT AVAILABLE)

Note: Use up to Engine SN 1179925.

$

$

Not available

2

Honda 30500-ZE7-063

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

Note: Use from Engine SN 1179926.

$91.99

$

In Stock, only 1 left!

0

3

Honda 30700-ZE6-773

SEE PART DETAILS - PRI; TERMINAL ASSY., IGNITION

$25.99

$

Usually ships in 3-6 days

0

3

Honda 30700-ZE8-003

CAP ASSY., NOISE SUPPRESSOR (Honda Code 2106466).

$26.99

$

Usually ships in 3-6 days

0

4

Honda 36101-ZE7-000

SEE PART DETAILS - SUP; WIRE, STOP SWITCH

$

$

Currently unavailable

5

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.49

$

In Stock, only 1 left!

0

6

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0
