HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-5000001 - MACR-6000000) CRANKSHAFT Parts Diagram

21" Walk-Behind Mower, Made in USA

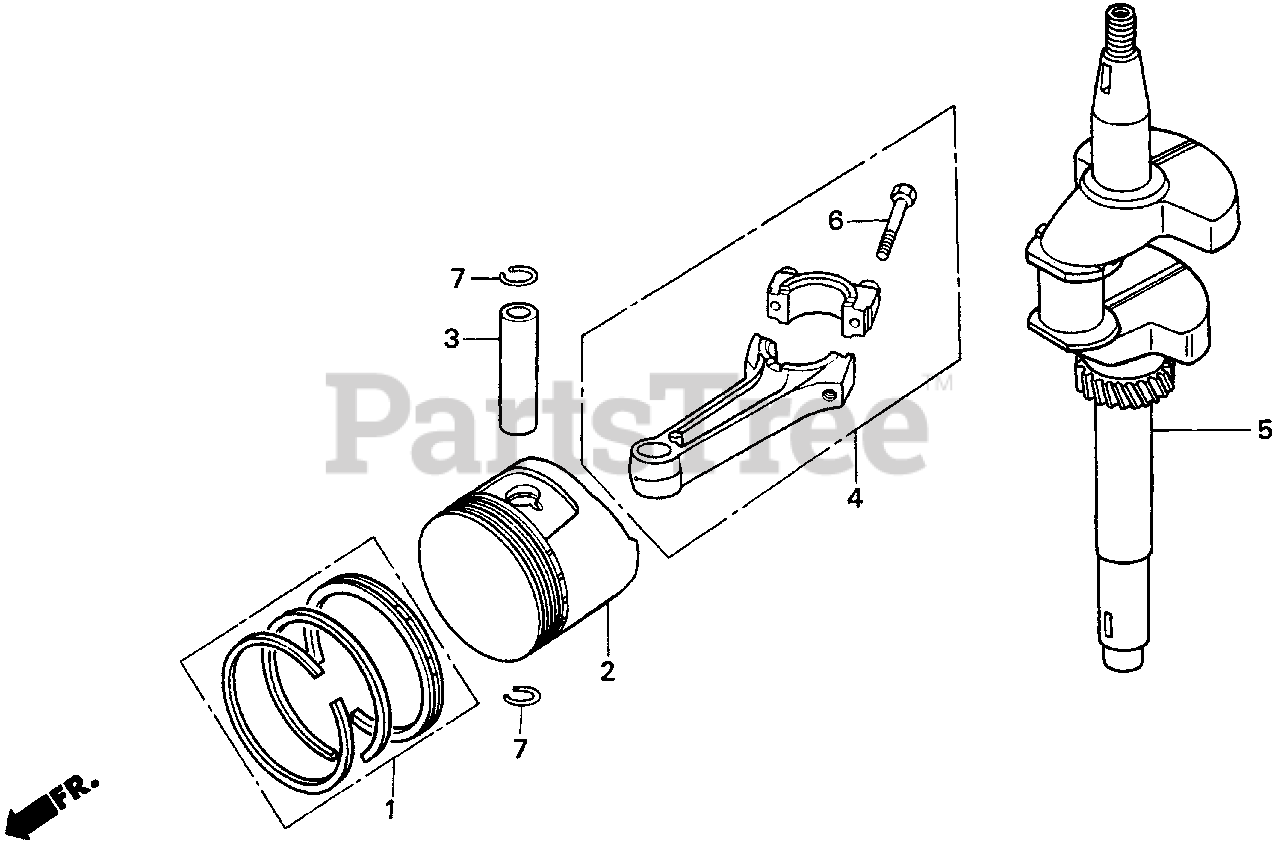

CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZF1-013

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (TEIKOKU)
(Superseded to 13010-ZF1-023)

Note: Use up to Engine SN 1149118.

$33.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZF1-014

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NIPPON)
(Superseded to 13010-ZF1-023)

Note: Use up to Engine SN 1149118.

$33.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

$33.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZF1-013

SEE PART DETAILS - SUP; RING SET, PISTON (0.25) (TEIKOKU)
(Superseded to 13011-ZF1-023)

Note: (Optional).Use up to Engine SN 1149118.

$46.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE) (0.25) (TEIKOKU) Use up to Engine SN 4733210.

Note: (Optional).

$46.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZF1-013

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) (TEIKOKU)
(Superseded to 13012-ZF1-023)

Note: (Optional).Use up to Engine SN 1149118.

$

$

Not available

1

Honda 13012-ZF1-014

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) (NIPPON)
(Superseded to 13012-ZF1-023)

Note: (Optional).Use up to Engine SN 1149118.

$

$

Not available

1

Honda 13012-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (OVER SIZE) (0.50) (TEIKOKU) Use up to Engine SN 4733210.

Note: (Optional).

$

$

Not available

1

Honda 13012-ZF1-024

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (NIPPON)
(Superseded to 13012-ZF1-023)

Note: (Optional).

$

$

Not available

1

Honda 13013-ZF1-013

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (TEIKOKU)
(Superseded to 13013-ZF1-024)

Note: (Optional).Use up to Engine SN 1149118.

$

$

Not available

1

Honda 13013-ZF1-014

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (NIPPON)
(Superseded to 13013-ZF1-024)

Note: (Optional).Use up to Engine SN 1149118.

$

$

Not available

1

Honda 13013-ZF1-023

SEE PART DETAILS - SUP; RING SET, PISTON (OVER SIZE) (0.75) (TEIKOKU) Use up to Engine SN 4733210.
(Superseded to 13013-ZF1-024)

Note: (Optional).

$

$

Not available

1

Honda 13013-ZF1-024

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE)

Note: (Optional).Use from Engine SN 1149119.

$

$

Not available

2

Honda 13101-ZE7-000

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-ZE7-020)

Note: Use up to Engine SN 1149118.

$

$

Not available

2

Honda 13101-ZE7-010

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-ZE7-020)

Note: Use from Engine SN 1149119.

$

$

Not available

2

Honda 13102-ZE7-020

SEE PART DETAILS - PRI; PISTON (0.25)

Note: (Optional).

$47.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE7-010

SEE PART DETAILS - SUP; PISTON (OS 0.50)

Note: (Optional).

$50.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE7-020

SEE PART DETAILS - PRI; PISTON (0.75)

Note: (Optional).

$47.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE1-000

PIN, PISTON (Honda Code 1426584).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE7-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z1V-600)

$130.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE7-305

ROD ASSY., CONNECTING (0.25 LOWER SIZE) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

4

Honda 13200-Z1V-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z1V-600)

$130.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZE7-770

CRANKSHAFT
(Superseded to 13310-ZE7-771)

$272.99

$

In Stock, only 3 left!

0

5

Honda 13310-ZE7-771

CRANKSHAFT

$272.99

$

In Stock, only 3 left!

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

7

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.49

$

In Stock, Qty 20+

0
