HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-3000001 - MACR-5000000) REAR WHEELS Parts Diagram

21" Walk-Behind Mower, Made in Japan

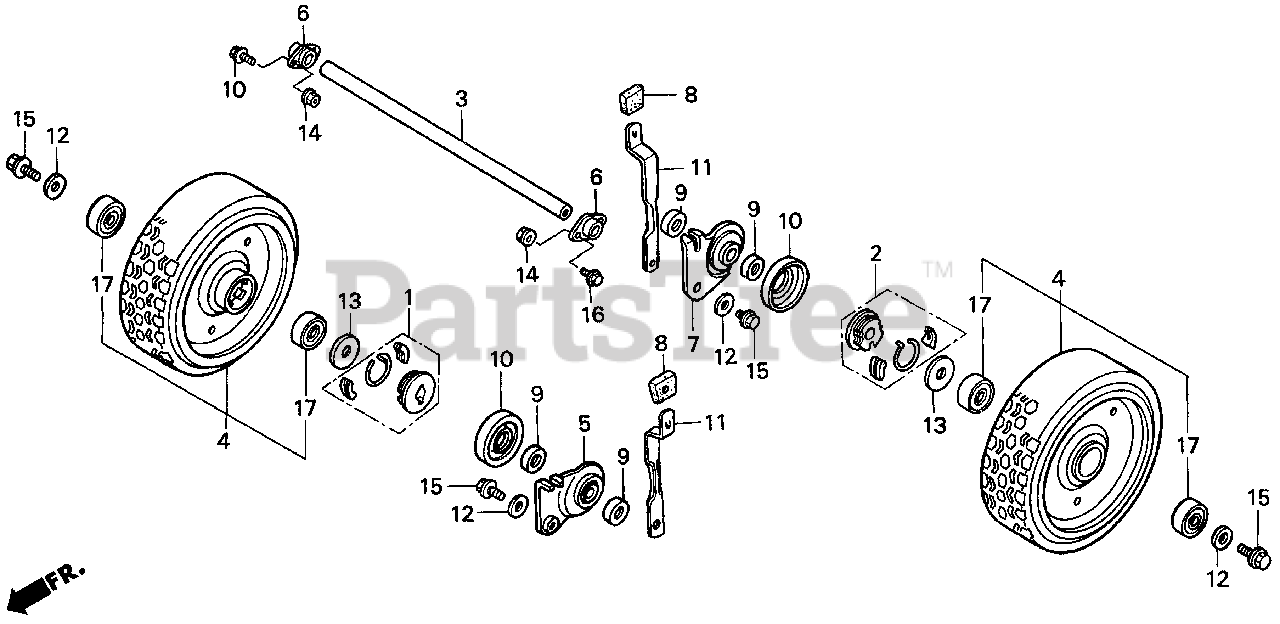

REAR WHEELS Parts Diagram

  • Title
NI

$

$

Not available

NI

Honda 42861-VB5-800

TIRE (9")

Note: Use up to Frame SN 3028890.

$44.99

$

Usually ships in 3-6 days

0

1

Honda 23510-VB5-801

SEE PART DETAILS - SUP; HOLDER, R. RATCHET
(Superseded to 23510-VB5-803)

Note: Use up to Frame SN 3003656.

$29.99

$

In Stock, only 4 left!

0

1

Honda 23510-VB5-803

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

$29.99

$

In Stock, only 4 left!

0

2

Honda 23520-VB5-801

SEE PART DETAILS - SUP; HOLDER, L. RATCHET
(Superseded to 23520-VB5-803)

Note: Use up to Frame SN 3003656.

$29.99

$

In Stock, only 3 left!

0

2

Honda 23520-VB5-803

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

$29.99

$

In Stock, only 3 left!

0

3

Honda 42651-VB5-800

SHAFT, RR. AXLE

$

$

Not available

4

Honda 42810-VB5-802

SEE PART DETAILS - SUP; WHEEL, PROPELLED
(Superseded to 42810-VB5-803)

$101.99

$

Usually ships in 3-6 days

0

4

Honda 42810-VB5-803

SEE PART DETAILS - PRI; WHEEL, PROPELLED

$101.99

$

Usually ships in 3-6 days

0

5

Honda 42930-VB5-801

ARM, R. RR. ADJUSTER

Note: Use up to Frame SN 3003656.

$

$

Currently unavailable

5

Honda 42930-VB5-802

ARM, R. RR. ADJUSTER (NOT AVAILABLE)

Note: Use from Frame SN 3003657.

$

$

Not available

6

Honda 42936-VB5-800

HOLDER, RR. AXLE

$

$

Not available

7

Honda 42940-VB5-801

ARM, RR. ADJUSTER

Note: Use up to Frame SN 3003656.

$

$

Currently unavailable

7

Honda 42940-VB5-802

ARM, RR. ADJUSTER (NOT AVAILABLE)

Note: Use from Frame SN 3003657.

$

$

Not available

8

Honda 42952-VA4-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 1 left!

0

9

Honda 42957-VB5-802

COLLAR, DUST SEAL

Note: Use up to Frame SN 3003656.

$5.99

$

Usually ships in 3-6 days

0

9

Honda 42957-VB5-802

COLLAR, DUST SEAL

Note: Use from Frame SN 3003657.

$5.99

$

Usually ships in 3-6 days

0

10

Honda 42958-VB5-800

SEE PART DETAILS - SUP; CAP, DUST PROTECTOR
(Superseded to 42958-VB5-811)

Note: Use up to Frame SN 3019863.

$7.49

$

Usually ships in 3-6 days

0

10

Honda 42958-VB5-811

SEE PART DETAILS - PRI; CAP, DUST PROTECTOR

$7.49

$

Usually ships in 3-6 days

0

11

Honda 42961-VB5-800

PLATE, RR. ADJUSTER
(Superseded to 42961-VB5-802)

$

$

Not available

11

Honda 42961-VB5-802

PLATE, RR. ADJUSTER

$

$

Not available

12

Honda 90505-SD9-000

WASHER, RR. ENGINE MOUNTING

$9.99

$

In Stock, only 2 left!

0

13

Honda 90551-VA4-800

WASHER (16MM)

$3.49

$

In Stock, Qty 5

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

17

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$16.99

$

In Stock, Qty 11

0
