HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-3000001 - MACR-5000000) JOINT Parts Diagram

21" Walk-Behind Mower, Made in Japan

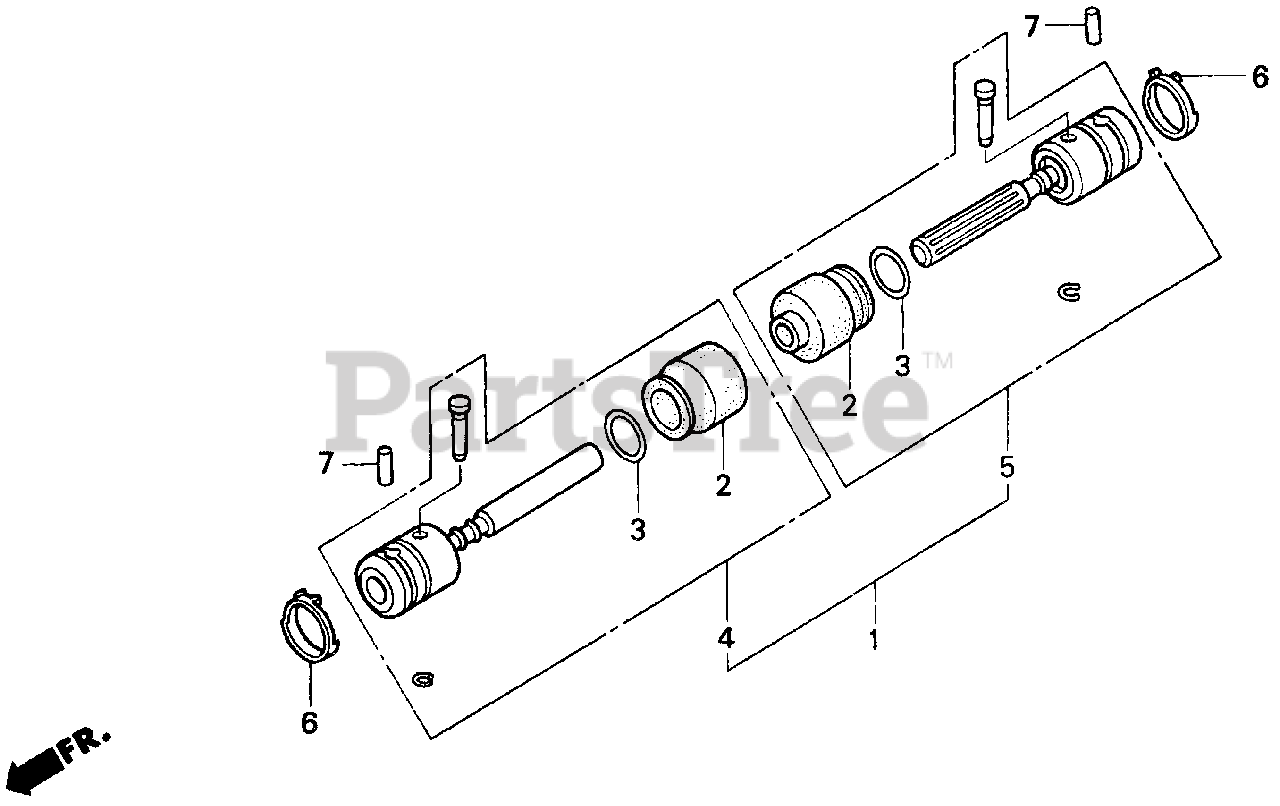

JOINT Parts Diagram

  • Title

1

Honda 22100-VB5-801

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB5-807)

Note: Use up to Frame SN 3012246.

$

$

Not available

1

Honda 22100-VB5-803

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB5-807)

$

$

Not available

1

Honda 22100-VB5-807

SEE PART DETAILS - PRI; JOINT ASSY.

$

$

Not available

2

Honda 22123-VA4-801

BOOT, JOINT
(Superseded to 22123-VA4-804)

Note: Use up to Frame SN 3012246.

$5.49

$

Usually ships in 3-6 days

0

2

Honda 22123-VB5-801

BOOT, JOINT
(Superseded to 22123-VK6-004)

Note: Use from Frame SN 3012247.

$4.49

$

Usually ships in 3-6 days

0

3

Honda 22127-VA4-801

RING, SEAL
(Superseded to 22127-VA4-804)

Note: Use up to Frame SN 3012246.

$2.99

$

Usually ships in 3-6 days

0

3

Honda 22127-VB5-801

RING, SEAL
(Superseded to 22127-VK6-004)

Note: Use from Frame SN 3012247.

$1.99

$

In Stock, only 3 left!

0

4

Honda 22150-VB5-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB5-804)

Note: Use up to Frame SN 3012246.

$

$

Not available

4

Honda 22150-VB5-803

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB5-804)

$

$

Not available

5

Honda 22160-VB5-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB5-804)

Note: Use up to Frame SN 3012246.

$

$

Not available

5

Honda 22160-VB5-803

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB5-804)

$

$

Not available

6

Honda 23435-VA2-701

CLIP, CLUTCH SHAFT

$4.99

$

Usually ships in 3-6 days

0

7

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, only 3 left!

0
