HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-3000001 - MACR-5000000) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in Japan

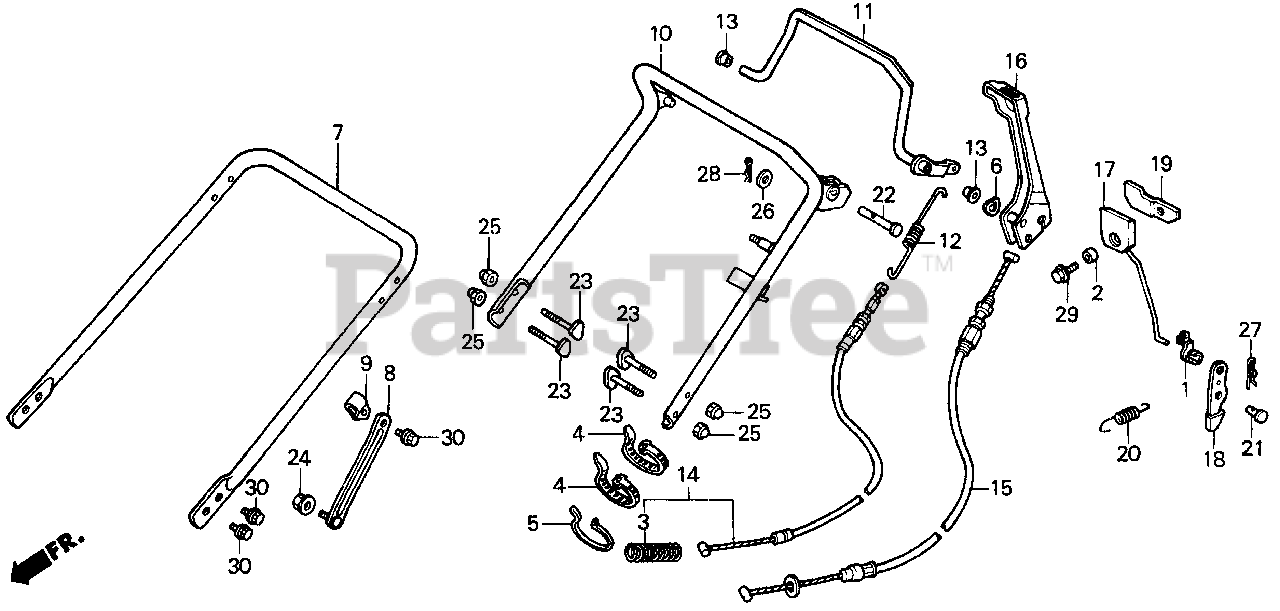

HANDLEBAR Parts Diagram

  • Title

1

Honda 16956-892-000

JOINT, ROD

$7.99

$

In Stock, only 1 left!

0

2

Honda 19512-883-000

COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 23437-VB5-A00

SPRING, CLUTCH RETURN

$1.99

$

Usually ships in 3-6 days

0

4

Honda 32901-VB5-800

TIE, CABLE

$3.49

$

In Stock, only 2 left!

0

5

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL)

$2.99

$

Usually ships in 3-6 days

0

6

Honda 47363-663-000

WASHER, EQUALIZER

$

$

Not available

7

Honda 53110-VB5-K20

SEE PART DETAILS - SUP; PIPE, HANDLE (LOWER)
(Superseded to 53110-VB5-K21ZC)

$73.99

$

Usually ships in 3-6 days

0

7

Honda 53110-VB5-K21ZB

SEE PART DETAILS - SUP; PIPE, HANDLE (LOWER) *NH190M* (VINTAGE GRAY METALLIC)
(Superseded to 53110-VB5-K20)

$73.99

$

Usually ships in 3-6 days

0

7

Honda 53110-VB5-800

SEE PART DETAILS - SUP; PIPE, HANDLE (LOWER)
(Superseded to 53110-VB5-K20)

$73.99

$

Usually ships in 3-6 days

0

8

Honda 53118-VB5-800

PLATE, HANDLE SUPPORT

$19.99

$

Usually ships in 3-6 days

0

9

Honda 53119-VB5-800

HANGER, HANDLE SUPPORT

$17.99

$

Usually ships in 3-6 days

0

10

Honda 53150-VB5-K20

SEE PART DETAILS - SUP; PIPE, HANDLE (UPPER)

$

$

Not available

11

Honda 54410-VA4-800

LEVER, CLUTCH (NOT AVAILABLE)

$

$

Not available

12

Honda 54411-VB3-800

SPRING, CLUTCH

$5.49

$

In Stock, only 3 left!

0

13

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

Usually ships in 3-6 days

0

14

Honda 54510-VB5-800

CABLE, SELF

$24.99

$

In Stock, only 1 left!

0

15

Honda 54530-VB3-802

CABLE, ROTO-STOP

$32.99

$

In Stock, only 1 left!

0

16

Honda 75161-VB3-800

LEVER, ROTO-STOP (NOT AVAILABLE)

$64.99

$

Usually ships in 3-6 days

0

17

Honda 75165-VA4-000

ROD, RATCHET PUSH (NOT AVAILABLE)

$

$

Not available

18

Honda 75166-VA4-000

LEVER, LOCK (NOT AVAILABLE)

$

$

Not available

19

Honda 75167-VA4-800

PLATE, PUSH ROD

$6.99

$

Usually ships in 3-6 days

0

20

Honda 75168-VA4-000

SPRING, RATCHET RETURN

$4.49

$

In Stock, only 1 left!

0

21

Honda 77203-425-000

PIN, SEAT HINGE

$5.49

$

Usually ships in 3-6 days

0

22

Honda 90106-VA4-800

PIN, CLUTCH LEVER

$11.99

$

Usually ships in 3-6 days

0

23

Honda 90109-VB5-800

BOLT, HANDLE HOLDER (8X36)

$0.99

$

In Stock, only 4 left!

0

24

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.99

$

In Stock, Qty 14

0

25

Honda 90443-107-000

NUT, CAP (8MM)

$3.99

$

In Stock, Qty 7

0

26

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

27

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 12

0

28

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

29

Honda 95701-08014-00

BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

30

Honda 95701-06010-07

BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 4 left!

0
