HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-3000001 - MACR-5000000) GRASS BAG Parts Diagram

21" Walk-Behind Mower, Made in Japan

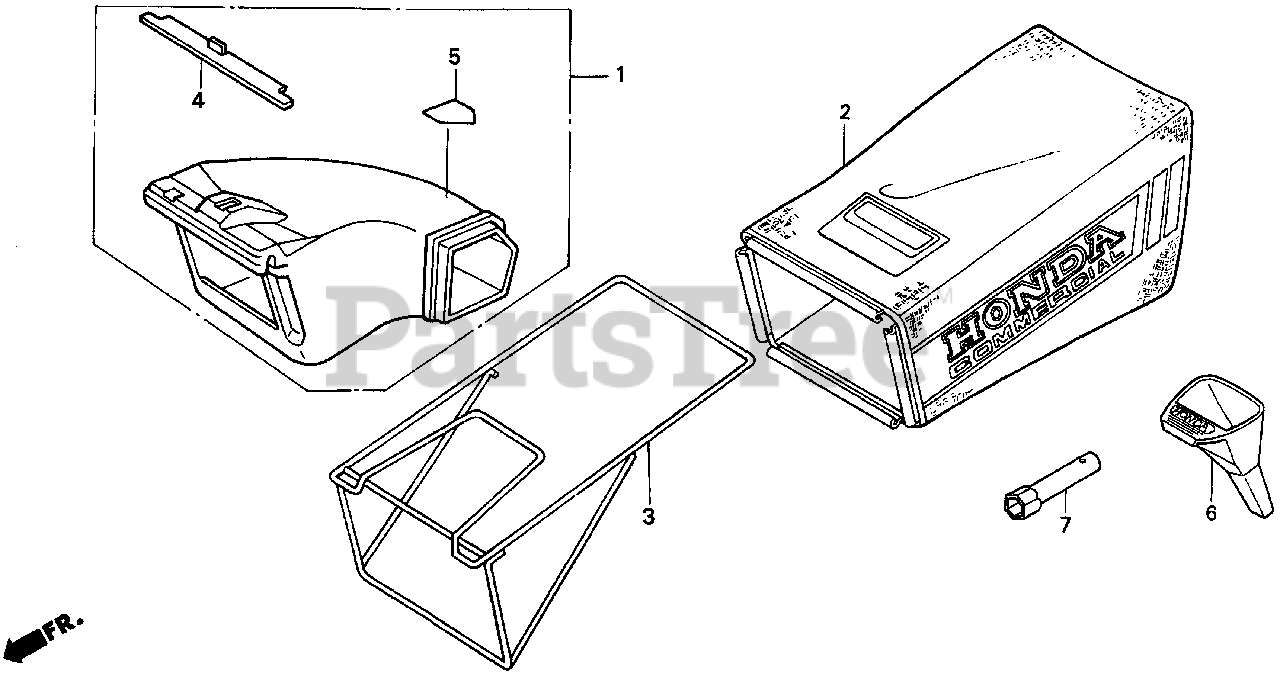

GRASS BAG Parts Diagram

  • Title
1

Honda 06814-VB5-000

CHUTE KIT, SIDE DISCHARGE
(Superseded to 06814-VE2-030)

Note: (Optional).

$74.99

$

In Stock, only 2 left!

0

1

Honda 06814-VE2-010

SEE PART DETAILS - SUP; CHUTE KIT, SIDE DISCHARGE
(Superseded to 06814-VE2-030)

Note: (Optional).

$74.99

$

In Stock, only 2 left!

0

1

Honda 06814-VE2-030

SEE PART DETAILS - PRI; CHUTE KIT, SIDE DISCHARGE

Note: (Optional).

$74.99

$

In Stock, only 2 left!

0

2

Honda 81157-VB5-K20

FABRIC, GRASS BAG

$66.99

$

Usually ships in 3-6 days

0

3

Honda 81158-VA4-K10

FRAME, BAG

$110.99

$

In Stock, only 1 left!

0

4

Honda 81212-VB5-003

BRACKET, MOUNTING (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

5

Honda 87104-VA2-000

SEE PART DETAILS - PRI; CAUTION C, HOUSING

Note: (Optional).

$1.99

$

In Stock, only 4 left!

0

6

Honda 89115-VA4-000

FUNNEL, OIL

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

7

Honda 99004-21002

WRENCH, BOX (P21)

$5.49

$

Usually ships in 3-6 days

0
