HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-3000001 - MACR-5000000) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

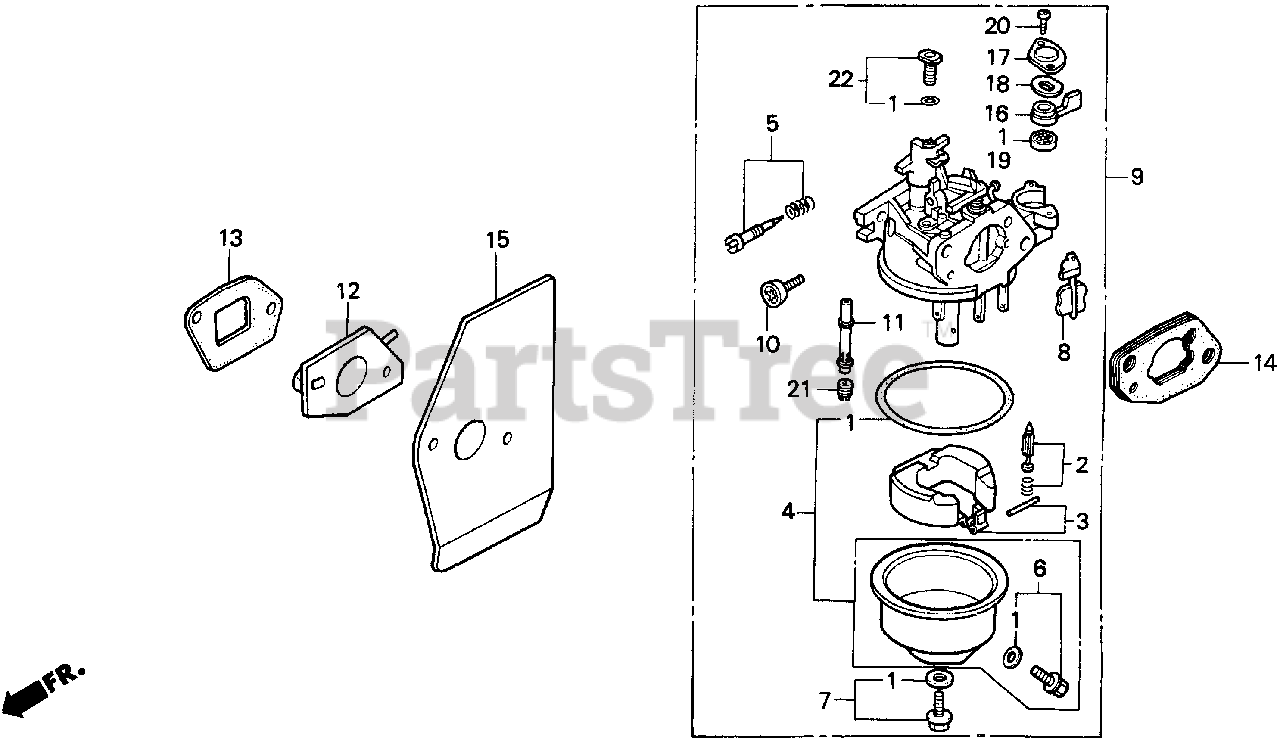

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-015

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-ZE0-025)

Note: Use up to Engine SN BE40A E.

$20.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

Note: Use up to Engine SN BE40A E.

$20.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BE40A F.

$20.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

$38.99

$

In Stock, only 1 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$15.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE7-005

CHOKE SET

Note: Use up to Engine SN BE40A D.

$37.99

$

In Stock, only 1 left!

0

8

Honda 16045-ZE7-005

CHOKE SET

Note: Use from Engine SN BE40A E.

$35.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE7-015

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE40A B)
(Superseded to 16100-ZE7-055)

Note: Use up to Engine SN 1180000.

$114.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE7-035

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE40A E)
(Superseded to 16100-ZE7-055)

Note: Use up to Engine SN 1214225.

$114.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE7-055

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE40A G/H)

$114.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE7-015

NOZZLE, MAIN

Note: Use from Engine SN BE40A D to BE40A D.

$25.99

$

Usually ships in 3-6 days

0

11

Honda 16166-ZE7-025

NOZZLE, MAIN

Note: Use up to Engine SN BE40A A.

$

$

Not available

11

Honda 16166-ZE7-025

NOZZLE, MAIN

Note: Use from Engine SN BE40A E.

$

$

Not available

12

Honda 16211-ZE7-000

INSULATOR, CARBURETOR

$16.99

$

In Stock, only 2 left!

0

13

Honda 16212-ZE7-M10

GASKET, INSULATOR

$3.49

$

In Stock, Qty 5

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.49

$

In Stock, Qty 5

0

15

Honda 16221-ZE7-M11

GASKET, CARBURETOR

$17.99

$

In Stock, only 2 left!

0

16

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

$14.99

$

Usually ships in 3-6 days

0

16

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, PETCOCK
(Superseded to 16953-ZE1-406)

$14.99

$

Usually ships in 3-6 days

0

17

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, PETCOCK
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE40A E.

$4.49

$

In Stock, Qty 20+

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: Use up to Engine SN BE40A E.

$4.49

$

In Stock, Qty 20+

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

Note: Use from Engine SN BE40A F.

$4.49

$

In Stock, Qty 20+

0

20

Honda 93500-03008-0H

SCREW, PAN (3X8)

Note: Use up to Engine SN BE40A E.

$0.99

$

In Stock, Qty 8

0

20

Honda 93500-03008-1G

SCREW, PAN (3X8)

Note: Use from Engine SN BE40A F.

$

$

Currently unavailable

21

Honda 99101-124-0620

JET, MAIN (#62)

Note: (Optional). Use from Engine SN BE40A E.

$11.99

$

In Stock, only 2 left!

0

21

Honda 99101-124-0650

JET, MAIN (#65)

Note: (Optional).

$13.99

$

In Stock, only 2 left!

0

21

Honda 99101-124-0680

JET, MAIN (#68)

Note: (Optional). Use up to Engine SN BE40A D.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0680

JET, MAIN (#68)

Note: Use from Engine SN BE40A E.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 99101-124-0700

JET, MAIN (#70)

Note: Use up to Engine SN BE40A D.

$11.99

$

In Stock, only 1 left!

0

22

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

Note: Use up to Engine SN BE40A D.

$23.99

$

In Stock, only 1 left!

0

22

Honda 99204-ZE0-0380

JET SET, PILOT (#38)

Note: Use from Engine SN BE40A E.

$23.99

$

In Stock, only 2 left!

0
