HRA216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-3000001 - MACR-5000000) CAMSHAFT Parts Diagram

21" Walk-Behind Mower, Made in Japan

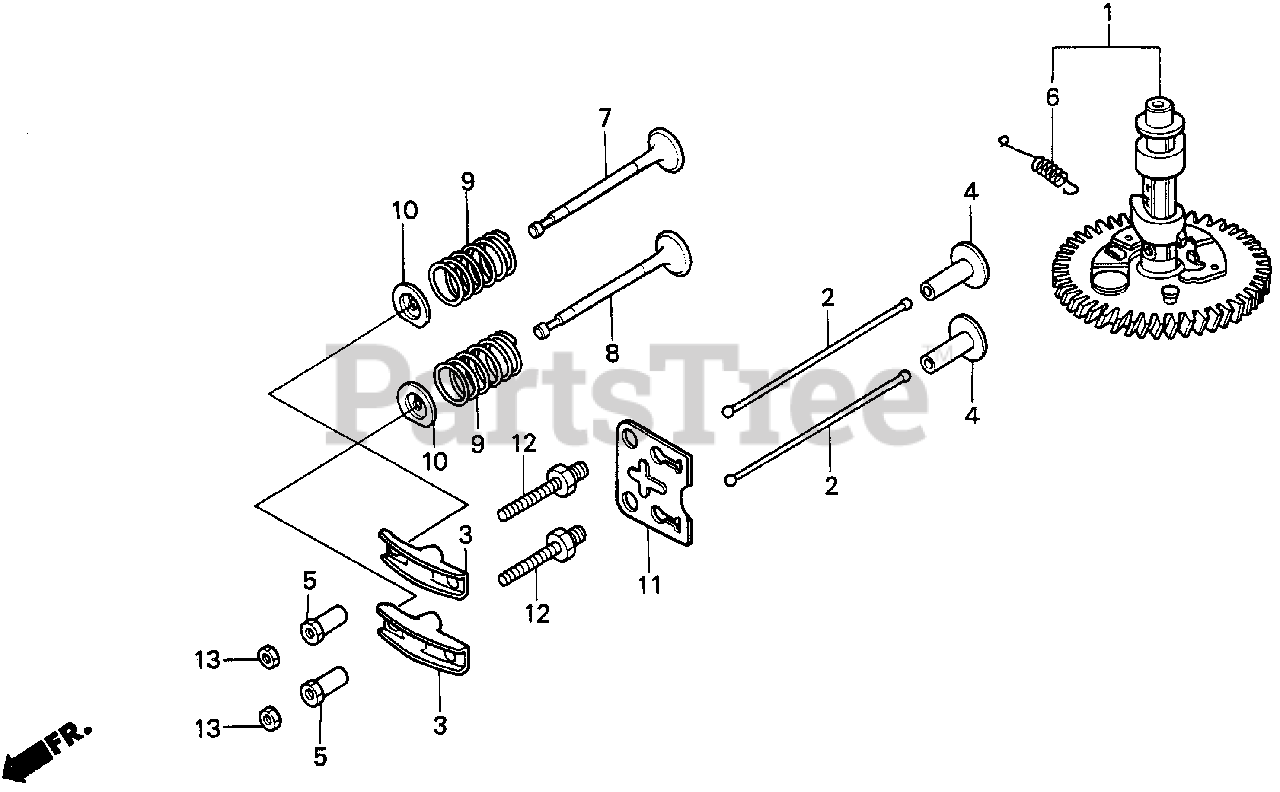

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE7-770

CAMSHAFT ASSY.

$197.99

$

Usually ships in 3-6 days

0

2

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH

$8.49

$

In Stock, only 2 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER

$7.99

$

In Stock, only 2 left!

0

4

Honda 14441-ZE1-000

SEE PART DETAILS - SUP; LIFTER, VALVE
(Superseded to 14441-ZE1-010)

$14.99

$

Usually ships in 3-6 days

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

5

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$5.99

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZE7-000

VALVE, IN.
(Superseded to 14711-ZF1-000)

$20.99

$

In Stock, only 2 left!

0

7

Honda 14711-ZF1-000

VALVE, IN.

$20.99

$

In Stock, only 2 left!

0

8

Honda 14721-ZE7-000

VALVE, EX.

$35.99

$

In Stock, only 2 left!

0

9

Honda 14751-ZE1-000

SPRING, VALVE

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

11

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.49

$

In Stock, only 4 left!

0

13

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 6

0
