HRA215 SXA (MZAL) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAL-6000001 - MZAL-6099999) TRANSMISSION (HRA215 SXA - TO 6042384) Parts Diagram

21" Walk-Behind Mower, Made in USA

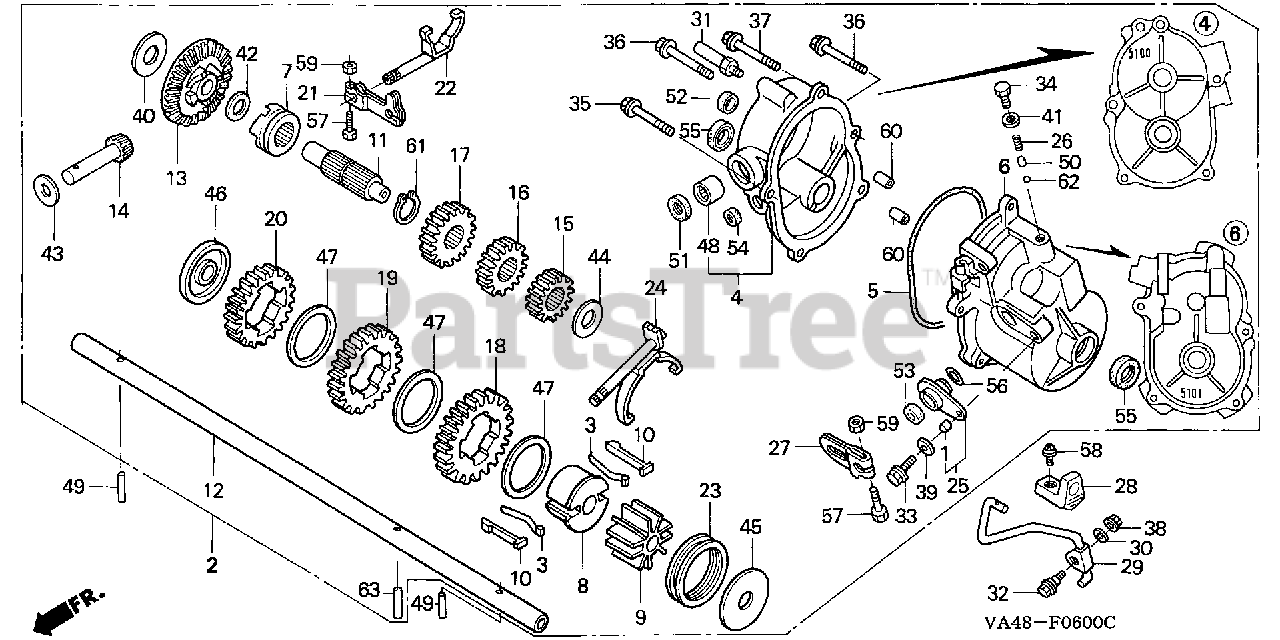

TRANSMISSION (HRA215 SXA - TO 6042384) Parts Diagram

  • Title

1

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

Note: Use up to Frame SN 6042384.

$2.49

$

In Stock, Qty 5

0

2

Honda 20001-VA4-J02

TRANSMISSION ASSY. (DANA CORP.)

Note: Use up to Frame SN 6042384.

$341.99

$

Usually ships in 3-6 days

0

3

Honda 21218-VA3-J00

SPRING, CHANGE KEY

Note: Use up to Frame SN 6042384.

$4.99

$

Usually ships in 3-6 days

0

4

Honda 21510-VA4-J00

CASE, R. TRANSMISSION (NOT AVAILABLE)

Note: Use up to Frame SN 6042384.

$

$

Currently unavailable

5

Honda 21592-VA4-801

SEE PART DETAILS - SUP; O-RING, TRANSMISSION CASE
(Superseded to 21592-VA4-J02)

Note: Use up to Frame SN 6042384.

$

$

Not available

6

Honda 21611-VA4-J00

CASE, L. TRANSMISSION

Note: Use up to Frame SN 6042384.

$

$

Not available

7

Honda 22549-VA3-J00

CLUTCH, DRIVEN

Note: Use up to Frame SN 6042384.

$26.99

$

Usually ships in 3-6 days

0

8

Honda 23214-VA3-J01

BOSS, CHANGE SHAFT

Note: Use up to Frame SN 6042384.

$67.99

$

Usually ships in 3-6 days

0

9

Honda 23216-VA3-J00

HOLDER, KEY

Note: Use up to Frame SN 6042384.

$10.99

$

Usually ships in 3-6 days

0

10

Honda 23217-VA3-J00

KEY, CHANGE SHAFT

Note: Use up to Frame SN 6042384.

$18.99

$

Usually ships in 3-6 days

0

11

Honda 23221-VA3-J00

COUNTERSHAFT

Note: Use up to Frame SN 6042384.

$28.99

$

Usually ships in 3-6 days

0

12

Honda 23251-VA4-J00

SHAFT, FINAL

Note: Use up to Frame SN 6042384.

$

$

Not available

13

Honda 23323-VA3-J00

SEE PART DETAILS - PRI; GEAR, BEVEL (44T)

Note: Use up to Frame SN 6042384.

$91.99

$

Usually ships in 3-6 days

0

14

Honda 23411-VB3-801

PINION, BEVEL

Note: Use up to Frame SN 6042384.

$41.99

$

Usually ships in 3-6 days

0

15

Honda 23421-VA3-J01

GEAR, FIRST DRIVE (14T)

Note: Use up to Frame SN 6042384.

$

$

Not available

16

Honda 23422-VA3-J01

GEAR, SECOND DRIVE (18T)

Note: Use up to Frame SN 6042384.

$26.99

$

Usually ships in 3-6 days

0

17

Honda 23423-VA3-J01

GEAR, THIRD DRIVE (20T)

Note: Use up to Frame SN 6042384.

$25.99

$

Usually ships in 3-6 days

0

18

Honda 23431-VA3-J01

GEAR, FIRST DRIVEN (33T)

Note: Use up to Frame SN 6042384.

$

$

Not available

19

Honda 23432-VA3-J01

GEAR, SECOND DRIVEN (29T)

Note: Use up to Frame SN 6042384.

$52.99

$

Usually ships in 3-6 days

0

20

Honda 23433-VA3-J01

GEAR, THIRD DRIVEN (27T)

Note: Use up to Frame SN 6042384.

$45.99

$

Usually ships in 3-6 days

0

21

Honda 23436-VA4-J02

SEE PART DETAILS - PRI; ARM, CLUTCH

Note: Use up to Frame SN 6042384.

$29.99

$

In Stock, only 1 left!

0

21

Honda 23436-VA4-801

SEE PART DETAILS - SUP; ARM, CLUTCH
(Superseded to 23436-VA4-J02)

Note: Use up to Frame SN 6042384.

$29.99

$

In Stock, only 1 left!

0

22

Honda 23440-VB3-800

SHAFT, SHIFT

Note: Use up to Frame SN 6042384.

$24.99

$

Usually ships in 3-6 days

0

23

Honda 24102-VA3-J00

SHIFTER

Note: Use up to Frame SN 6042384.

$37.99

$

Usually ships in 3-6 days

0

24

Honda 24115-VA3-J00

FORK, SHIFT

Note: Use up to Frame SN 6042384.

$75.99

$

Usually ships in 3-6 days

0

25

Honda 24139-VA3-J00

GUIDE, CHANGE LEVER

Note: Use up to Frame SN 6042384.

$

$

Currently unavailable

26

Honda 24271-765-000

SPRING, BALL SETTING

Note: Use up to Frame SN 6042384.

$2.49

$

Usually ships in 3-6 days

0

27

Honda 24361-VA4-J02

SEE PART DETAILS - PRI; ARM, CHANGE

Note: Use up to Frame SN 6042384.

$5.99

$

Usually ships in 3-6 days

0

28

Honda 54225-VA4-J00

KNOB, CHANGE LEVER

Note: Use up to Frame SN 6042384.

$

$

Not available

29

Honda 54311-VA4-J00

LEVER, CHANGE

Note: Use up to Frame SN 6042384.

$16.99

$

Usually ships in 3-6 days

0

30

Honda 56468-PC1-010

PLATE, ADJUSTING

Note: Use up to Frame SN 6042384.

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90012-VA4-J02

BOLT, GUIDE (8MM)

Note: Use up to Frame SN 6042384.

$4.99

$

Usually ships in 3-6 days

0

32

Honda 90015-730-000

BOLT, TANK SETTING

Note: Use up to Frame SN 6042384.

$5.99

$

Usually ships in 3-6 days

0

33

Honda 90103-VA5-J00

BOLT, FLANGE (6X16)

Note: Use up to Frame SN 6042384.

$1.99

$

Usually ships in 3-6 days

0

34

Honda 90111-VA3-J00

BOLT, HEX. (8X10)

Note: Use up to Frame SN 6042384.

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90114-VA4-J00

BOLT, FLANGE (6X35)

Note: Use up to Frame SN 6042384.

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90123-VA4-800

BOLT, FLANGE (6X25) (Honda Code 1454891).

Note: Use up to Frame SN 6042384.

$2.99

$

Usually ships in 3-6 days

0

37

Honda 90125-VA4-800

BOLT, FLANGE (6X25)

Note: Use up to Frame SN 6042384.

$3.49

$

In Stock, only 1 left!

0

38

Honda 90220-MA5-700

NUT, NYLON RING (6MM)

Note: Use up to Frame SN 6042384.

$11.99

$

Usually ships in 3-6 days

0

39

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15) (Honda Code 1279173).

Note: Use up to Frame SN 6042384.

$1.49

$

Usually ships in 3-6 days

0

40

Honda 90411-KM1-000

WASHER, THRUST (14X32X1)

Note: Use up to Frame SN 6042384.

$2.99

$

Usually ships in 3-6 days

0

41

Honda 90421-KM1-003

SEE PART DETAILS - PRI; WASHER, SEALING (8X16X1.6)

Note: Use up to Frame SN 6042384.

$2.99

$

Usually ships in 3-6 days

0

42

Honda 90451-155-000

SEE PART DETAILS - PRI; WASHER (14MM)

Note: Use up to Frame SN 6042384.

$5.49

$

Usually ships in 3-6 days

0

43

Honda 90452-187-000

SEE PART DETAILS - PRI; WASHER (10X21)

Note: Use up to Frame SN 6042384.

$2.99

$

In Stock, only 1 left!

0

44

Honda 90455-729-300

WASHER B, THRUST (12MM) (1.0)

Note: Use up to Frame SN 6042384.

$4.99

$

Usually ships in 3-6 days

0

45

Honda 90504-VA3-J00

WASHER, THRUST (15X45X1.5)

Note: Use up to Frame SN 6042384.

$2.49

$

Usually ships in 3-6 days

0

45

Honda 90514-VA3-J02

WASHER, THRUST (15X45)

Note: Use up to Frame SN 6042384.

$2.49

$

Usually ships in 3-6 days

0

46

Honda 90505-VA3-J00

WASHER, SPECIAL (15MM)

Note: Use up to Frame SN 6042384.

$18.99

$

Usually ships in 3-6 days

0

47

Honda 90506-VA3-J00

WASHER (35X45X1)

Note: Use up to Frame SN 6042384.

$7.99

$

Usually ships in 3-6 days

0

48

Honda 91012-VB5-801

BEARING, NEEDLE (10X17X20)

Note: Use up to Frame SN 6042384.

$16.99

$

Usually ships in 3-6 days

0

49

Honda 91101-VA4-801

ROLLER (5X23.8)

Note: Use up to Frame SN 6042384.

$4.99

$

In Stock, only 2 left!

0

50

Honda 91152-VA3-J02

SEE PART DETAILS - PRI; RETAINER, BALL (6MM)

Note: Use up to Frame SN 6042384.

$9.99

$

Usually ships in 3-6 days

0

51

Honda 91206-VA3-J02

SEE PART DETAILS - PRI; OIL SEAL (10X17X4)

Note: Use up to Frame SN 6042384.

$2.99

$

In Stock, only 2 left!

0

52

Honda 91202-VA3-J01

PLUG, SEALING (14X4)
(Superseded to 91202-VA3-J02)

Note: Use up to Frame SN 6042384.

$4.49

$

Usually ships in 3-6 days

0

52

Honda 91202-VA3-J02

PLUG, SEALING (14X4)

Note: Use up to Frame SN 6042384.

$4.49

$

Usually ships in 3-6 days

0

53

Honda 91203-VA3-J02

SEE PART DETAILS - PRI; OIL SEAL (8X16X6)

Note: Use up to Frame SN 6042384.

$1.99

$

In Stock, Qty 5

0

54

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

Note: Use up to Frame SN 6042384.

$5.49

$

In Stock, Qty 11

0

54

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

Note: Use up to Frame SN 6042384.

$5.49

$

In Stock, Qty 11

0

55

Honda 91201-246-005

SEE PART DETAILS - PRI; OIL SEAL (15X24X5)

Note: Use up to Frame SN 6042384.

$9.49

$

In Stock, only 2 left!

0

56

Honda 91351-VA3-J02

O-RING (12.3X1.9)

Note: Use up to Frame SN 6042384.

$2.49

$

In Stock, Qty 5

0

57

Honda 92101-05020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X20)

Note: Use up to Frame SN 6042384.

$1.99

$

Usually ships in 3-6 days

0

58

Honda 93891-04012-07

SCREW-WASHER (4X12)

Note: Use up to Frame SN 6042384.

$1.49

$

Usually ships in 3-6 days

0

59

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

Note: Use up to Frame SN 6042384.

$2.49

$

Usually ships in 3-6 days

0

60

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

Note: Use up to Frame SN 6042384.

$2.99

$

In Stock, Qty 8

0

61

Honda 94510-18000

CIRCLIP (OUTER) (18MM)

Note: Use up to Frame SN 6042384.

$1.99

$

Usually ships in 3-6 days

0

62

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

Note: Use up to Frame SN 6042384.

$0.99

$

In Stock, Qty 6

0

63

Honda 96220-60224

ROLLER (6X22.4)

Note: Use up to Frame SN 6042384.

$2.99

$

Usually ships in 3-6 days

0
