HRA215 SXA (MZAL) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAL-6000001 - MZAL-6099999) RECOIL STARTER (1) Parts Diagram

21" Walk-Behind Mower, Made in USA

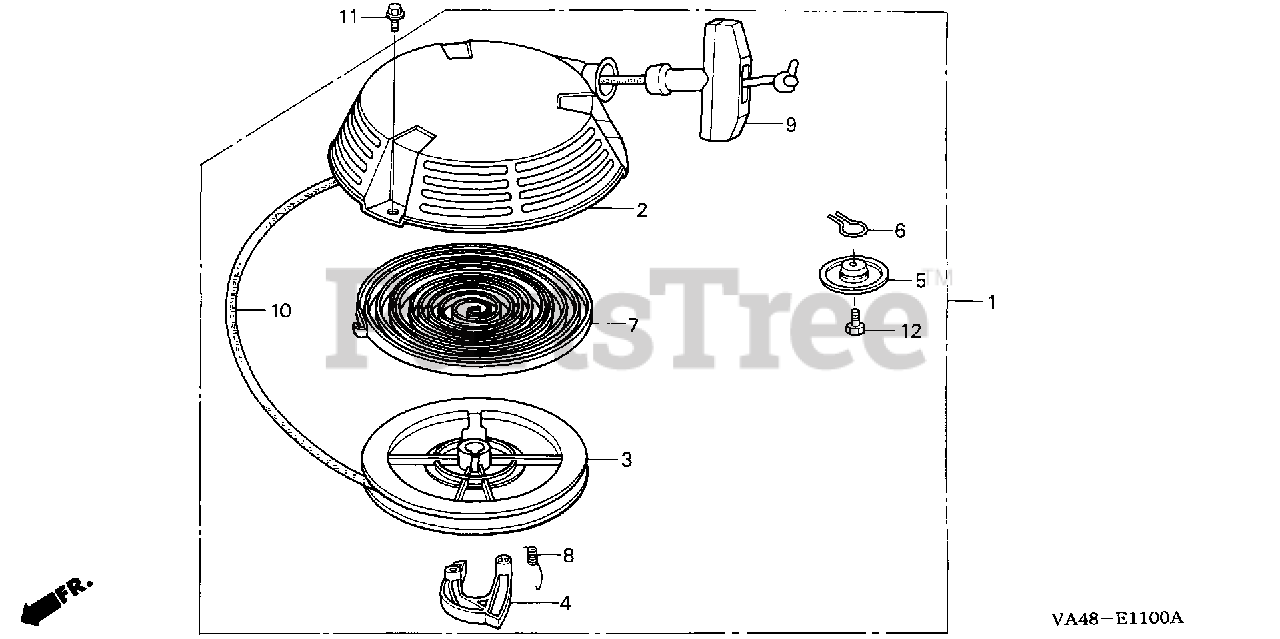

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZE6-003ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZE6-003ZD)

Note: Use up to Engine SN 6061016.

$132.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZE6-003ZD

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 6061016.

$132.99

$

In Stock, only 2 left!

0

2

Honda 28410-ZE6-003ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (Honda Code 3352754). (BRIGHT RED)

Note: Use up to Engine SN 6061016.

$

$

Not available

3

Honda 28420-ZE6-003

PULLEY, RECOIL STARTER (Honda Code 1453554).

Note: Use up to Engine SN 6061016.

$

$

Not available

4

Honda 28422-896-010

SEE PART DETAILS - PRI; RATCHET, STARTER (Honda Code 1033224).

Note: Use up to Engine SN 6061016.

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION (Honda Code 0927913).

Note: Use up to Engine SN 6061016.

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION (Honda Code 0927921).

Note: Use up to Engine SN 6061016.

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER (Honda Code 2332922).

Note: Use up to Engine SN 6061016.

$23.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN (Honda Code 0927939).

Note: Use up to Engine SN 6061016.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE1-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZE1-013)

Note: Use up to Engine SN 6061016.

$8.49

$

In Stock, only 2 left!

0

9

Honda 28461-ZE1-013

SEE PART DETAILS - PRI; KNOB, RECOIL STARTER

Note: Use up to Engine SN 6061016.

$8.49

$

In Stock, only 2 left!

0

10

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#4X55") (Honda Code 1410844).
(Superseded to 28462-ZE6-T02)

Note: Use up to Engine SN 6061016.

$5.99

$

In Stock, Qty 10

0

10

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE, LONG (55")

Note: Use up to Engine SN 6061016.

$5.99

$

In Stock, Qty 10

0

11

Honda 90012-ZE6-000

BOLT, FLANGE (6X8) (Honda Code 1454743).

Note: Use up to Engine SN 6061016.

$2.49

$

In Stock, only 3 left!

0

12

Honda 92101-06012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 3438264).

Note: Use up to Engine SN 6061016.

$1.99

$

Usually ships in 3-6 days

0
