HRA215 PDA (MZAL) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAL-6000001 - MZAL-9999999) CARBURETOR (HRA/HRC215, HRC216/K1) Parts Diagram

21" Walk-Behind Mower, Made in USA

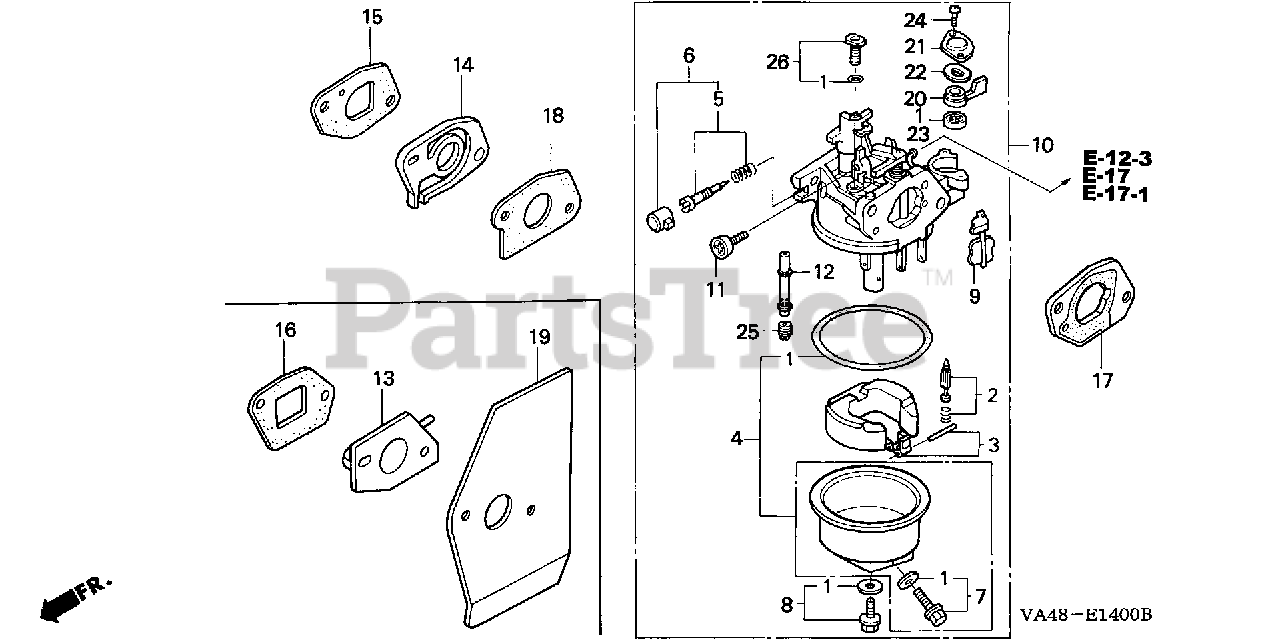

CARBURETOR (HRA/HRC215, HRC216/K1) Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$14.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

8

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

9

Honda 16045-ZE7-005

CHOKE SET (CARBURETOR NO.)

$33.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZG9-T40

CARBURETOR ASSY. (BE46B A)

Note: Use up to Engine SN 7165997.

$

$

Currently unavailable

10

Honda 16100-ZG9-T41

CARBURETOR ASSY. (BE46B A)

Note: Use from Engine SN 7165998.

$

$

Not available

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZG9-T40

NOZZLE, MAIN

$

$

Not available

14

Honda 16211-ZG9-000

INSULATOR, CARBURETOR

$10.99

$

In Stock, only 1 left!

0

15

Honda 16212-ZG9-T00

GASKET, CARBURETOR (HPE)

$5.49

$

In Stock, only 2 left!

0

17

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2455640).

$7.99

$

In Stock, only 1 left!

0

18

Honda 16221-ZG9-J60

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

18

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

20

Honda 16953-ZE6-015

SEE PART DETAILS - PRI; LEVER, PETCOCK (CARBURETOR NO.)

Note: Use up to Engine SN BE46B A.

$8.49

$

In Stock, only 1 left!

0

20

Honda 16953-ZE6-015

SEE PART DETAILS - PRI; LEVER, PETCOCK (CARBURETOR NO.)

Note: Use from Engine SN BE46B B.

$8.49

$

In Stock, only 1 left!

0

21

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

22

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

23

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 7

0

24

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

Note: Use from Engine SN BE46B B.

$1.49

$

In Stock, Qty 5

0

24

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN BE46B A.

$

$

Currently unavailable

25

Honda 99101-ZF5-0620

JET, MAIN (#62)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 99101-ZK7-0580

SEE PART DETAILS - PRI; JET, MAIN (#58) Use from Engine SN BE30B E.

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

25

Honda 99101-ZK7-0600

SEE PART DETAILS - PRI; JET, MAIN (#60)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

26

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 1 left!

0
