HRA214 SXA# (HRA214) - Honda 21" Walk-Behind Mower, Made in USA (SN: HRA214-6000001 - HRA214-9999999) HRA214 TRANSMISSION CASE Parts Diagram

21" Walk-Behind Mower, Made in USA

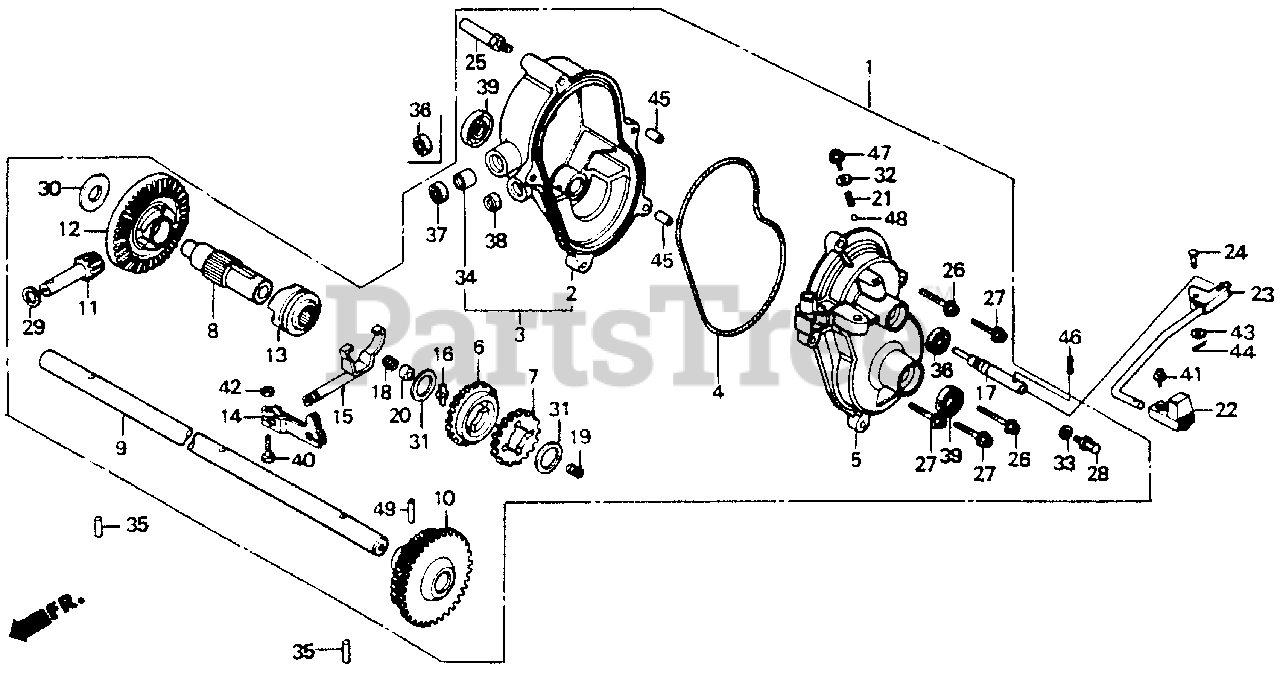

HRA214 TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 20001-VA4-801

TRANSMISSION ASSY.

$

$

Not available

3

Honda 215B1-VA4-800

CASE, R. TRANSMISSION

$

$

Not available

4

Honda 21592-VA4-J02

SEE PART DETAILS - PRI; O-RING, TRANSMISSION CASE
(Superseded to 21592-VA4-801)

$

$

Not available

4

Honda 21592-VA4-801

SEE PART DETAILS - SUP; O-RING, TRANSMISSION CASE
(Superseded to 21592-VA4-J02)

$

$

Not available

5

Honda 21611-VA4-801

CASE, L. TRANSMISSION

$

$

Not available

6

Honda 23111-VA4-800

GEAR, HIGH DRIVE (26T)

$22.99

$

Usually ships in 3-6 days

0

7

Honda 23211-VA4-800

GEAR, LOW DRIVE (22T)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 23221-VA4-801

COUNTERSHAFT

$

$

Not available

9

Honda 23251-VA4-801

SEE PART DETAILS - PRI; SHAFT, FINAL

$

$

Not available

10

Honda 23350-VA4-800

SEE PART DETAILS - SUP; GEAR, FINAL (38T/42T)
(Superseded to 23350-VA4-801)

$

$

Not available

10

Honda 23350-VA4-801

SEE PART DETAILS - PRI; GEAR, FINAL

$

$

Not available

11

Honda 23411-VB3-810

PINION, BEVEL

$

$

Not available

12

Honda 23421-VA4-800

GEAR, BEVEL (52T)

$

$

Not available

13

Honda 23431-VA4-801

SEE PART DETAILS - PRI; CLUTCH, DRIVEN

$

$

Not available

14

Honda 23436-VA4-J02

SEE PART DETAILS - PRI; ARM, CLUTCH

$29.99

$

In Stock, only 1 left!

0

14

Honda 23436-VA4-801

SEE PART DETAILS - SUP; ARM, CLUTCH
(Superseded to 23436-VA4-J02)

$29.99

$

In Stock, only 1 left!

0

15

Honda 23440-VA4-800

SHAFT, SHIFT

$23.99

$

Usually ships in 3-6 days

0

16

Honda 24102-VA4-800

SHIFTER

$4.49

$

Usually ships in 3-6 days

0

17

Honda 24122-VA4-800

SLIDER, SHIFT

$

$

Not available

18

Honda 24123-VA4-800

SPRING, SHIFT

$3.49

$

Usually ships in 3-6 days

0

19

Honda 24124-VA4-800

SPRING, HIGH GEARSHIFT

$2.49

$

Usually ships in 3-6 days

0

20

Honda 24251-VA4-800

RETAINER, SHIFT SPRING

$3.99

$

Usually ships in 3-6 days

0

21

Honda 24271-VB3-800

SPRING, BALL SETTING

$2.49

$

Usually ships in 3-6 days

0

22

Honda 54225-VA4-800

KNOB, CHANGE LEVER (NOT AVAILABLE)

$

$

Not available

23

Honda 54311-VA4-800

LEVER, CHANGE

$14.99

$

Usually ships in 3-6 days

0

24

Honda 54347-VA4-800

PIN (8X18)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90012-VA3-J02

SEE PART DETAILS - PRI; BOLT, GUIDE (8MM)

$3.99

$

In Stock, only 1 left!

0

26

Honda 90123-VA4-800

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90125-VA4-800

BOLT, FLANGE (6X25)

$3.49

$

In Stock, only 1 left!

0

28

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

29

Honda 90452-187-000

SEE PART DETAILS - PRI; WASHER (10X21)

$2.99

$

In Stock, only 1 left!

0

30

Honda 90452-VB5-800

WASHER, THRUST (12MM)

$6.49

$

In Stock, only 1 left!

0

31

Honda 90453-235-000

WASHER, THRUST (16MM)

$2.49

$

In Stock, only 4 left!

0

32

Honda 90461-357-000

SEE PART DETAILS - SUP; WASHER, SEALING (6.5X12)
(Superseded to 90463-KRM-840)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

34

Honda 91012-VB5-801

BEARING, NEEDLE (10X17X20)

$16.99

$

Usually ships in 3-6 days

0

35

Honda 91101-VA4-801

ROLLER (5X23.8)

$4.99

$

In Stock, only 2 left!

0

36

Honda 91201-VA4-801

SEE PART DETAILS - PRI; OIL SEAL (10X20X5)

$5.49

$

In Stock, only 1 left!

0

37

Honda 91202-KA3-711

SEE PART DETAILS - SUP; OIL SEAL (10X17X4) (ARAI)
(Superseded to 91206-VA3-J02)

$2.99

$

In Stock, only 2 left!

0

38

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

38

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

39

Honda 91201-246-005

OIL SEAL (15X24X5)

$9.49

$

In Stock, only 2 left!

0

40

Honda 92101-05020-0A

BOLT, HEX. (5X20)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 93891-04012-07

SCREW-WASHER (4X12)

$1.49

$

Usually ships in 3-6 days

0

42

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

43

Honda 90406-VM6-000

WASHER, THRUST (8.1MM)

$3.99

$

Usually ships in 3-6 days

0

44

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

45

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0

46

Honda 94305-40202

PIN, SPRING (4X20)

$2.99

$

Usually ships in 3-6 days

0

47

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 14

0

48

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

$0.99

$

In Stock, Qty 6

0

49

Honda 96220-60224

ROLLER (6X22.4)

$2.99

$

Usually ships in 3-6 days

0
