HRA214 SXA (HRA214) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA214-1000001 - HRA214-9999999) HRA214-SREAR WHEEL Parts Diagram

21" Walk-Behind Mower, Made in Japan

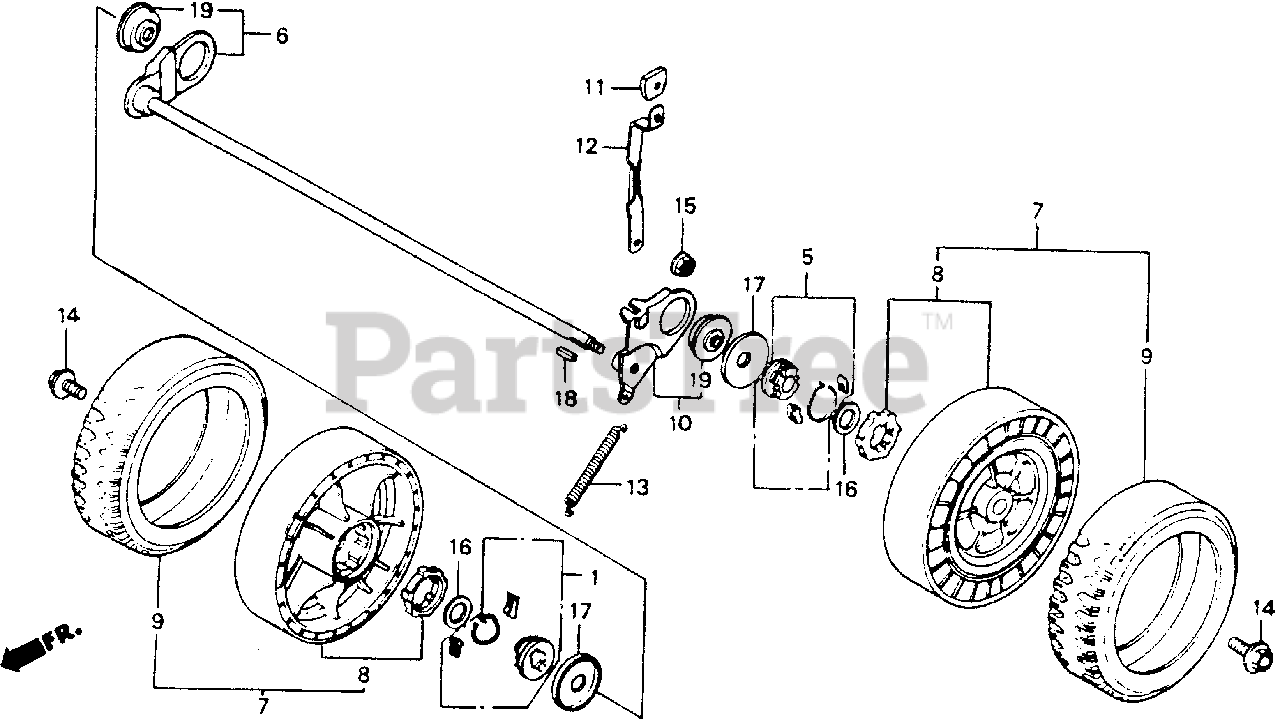

HRA214-SREAR WHEEL Parts Diagram

  • Title

1

Honda 23510-VB5-803

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

$30.99

$

In Stock, Qty 8

0

5

Honda 23520-VB5-803

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

$30.99

$

In Stock, Qty 10

0

6

Honda 42650-VA4-801

SEE PART DETAILS - PRI; SHAFT, RR. AXLE

$

$

Not available

7

Honda 42810-VA4-801

WHEEL

$65.99

$

In Stock, only 4 left!

0

8

Honda 42812-VA4-801

HUB, WHEEL (NA USE ALT:42810-VA3-J00)

$31.99

$

Usually ships in 3-6 days

0

9

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

In Stock, only 4 left!

0

10

Honda 42940-VA4-800

ARM, L. RR. ADJUSTER

$41.99

$

Usually ships in 3-6 days

0

11

Honda 42952-VA4-000

GRIP, ADJUSTER

$5.49

$

In Stock, only 1 left!

0

12

Honda 42961-VA4-800

PLATE, RR. ADJUSTER

$22.99

$

Usually ships in 3-6 days

0

13

Honda 42992-VA4-000

SPRING, RR. BALANCER

$15.99

$

Usually ships in 3-6 days

0

14

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

15

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 6

0

16

Honda 90551-VA4-800

WASHER (16MM)

$3.99

$

In Stock, only 3 left!

0

17

Honda 90555-VA4-800

WASHER, WHEEL

$6.99

$

In Stock, only 3 left!

0

18

Honda 90746-VA4-000

KEY (4X4X11)

$

$

Not available

19

Honda 91054-VA4-800

BEARING, RADIAL BALL

$30.99

$

Usually ships in 3-6 days

0
