HRA214 SXA (HRA214) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA214-1000001 - HRA214-9999999) CAMSHAFT Parts Diagram

21" Walk-Behind Mower, Made in Japan

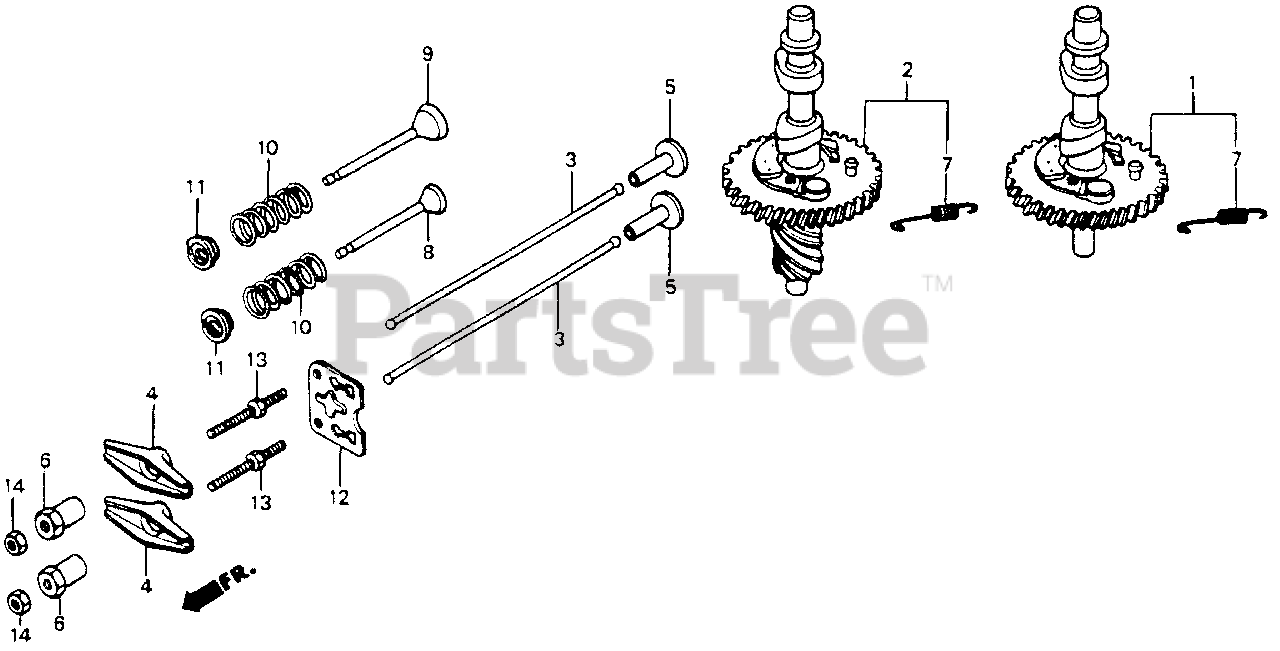

CAMSHAFT Parts Diagram

  • Title
2

Honda 14100-ZE6-770

SEE PART DETAILS - SUP; CAMSHAFT ASSY.
(Superseded to 14100-ZE6-772)

Note: Use up to Engine SN 1199574.

$170.99

$

Usually ships in 3-6 days

0

2

Honda 14100-ZE6-772

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

$170.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE0-010

SEE PART DETAILS - PRI; ROD, PUSH

$8.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER

$7.99

$

In Stock, only 2 left!

0

5

Honda 14441-ZE1-000

SEE PART DETAILS - SUP; LIFTER, VALVE
(Superseded to 14441-ZE1-010)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

7

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 2 left!

0

8

Honda 14711-ZE0-000

SEE PART DETAILS - SUP; VALVE, IN.
(Superseded to 14711-ZE0-010)

Note: Use up to Engine SN 1969443.

$

$

Not available

8

Honda 14711-ZE0-010

SEE PART DETAILS - PRI; VALVE, IN.

$

$

Not available

9

Honda 14721-ZE6-000

SEE PART DETAILS - SUP; VALVE, EX.

Note: Use up to Engine SN 1969443.

$28.99

$

Usually ships in 3-6 days

0

9

Honda 14721-ZE6-010

SEE PART DETAILS - PRI; VALVE, EX.

$

$

Not available

10

Honda 14751-ZE1-000

SPRING, VALVE

$3.99

$

In Stock, only 3 left!

0

11

Honda 14771-ZE1-000

SEE PART DETAILS - PRI; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

12

Honda 14791-ZE0-010

PLATE, PUSH ROD GUIDE

$4.49

$

In Stock, only 2 left!

0

13

Honda 90012-ZE0-000

BOLT, PIVOT

Note: Use up to Engine SN 1163730.

$9.49

$

Usually ships in 3-6 days

0

13

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

Note: Use from Engine SN 1163731.

$8.49

$

In Stock, only 2 left!

0

14

Honda 90206-ZE1-000

NUT, PIVOT ADJ.

$4.49

$

In Stock, Qty 6

0
