HRA214 PXA# (HRA214) - Honda 21" Walk-Behind Mower, Made in USA (SN: HRA214-6000001 - HRA214-9999999) HRA214-PREAR WHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

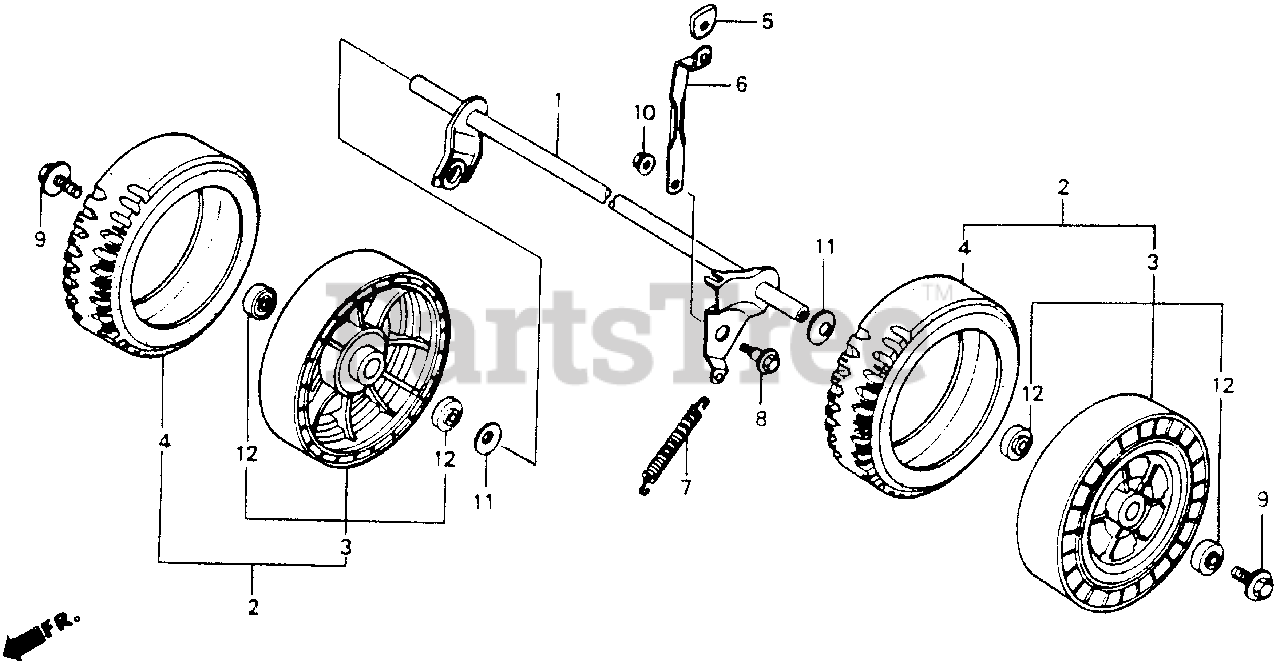

HRA214-PREAR WHEEL Parts Diagram

  • Title

1

Honda 42650-VA4-010

SEE PART DETAILS - PRI; SHAFT, RR. AXLE

$

$

Not available

2

Honda 42710-VA3-J00

SEE PART DETAILS - PRI; WHEEL (8") *NH31* (MCKINLEY WHITE)

$37.99

$

Usually ships in 3-6 days

0

3

Honda 42812-VA4-003

HUB, WHEEL (NA USE ALT:42710-VA3-J00)

$

$

Not available

4

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

Usually ships in 3-6 days

0

5

Honda 42952-VA4-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 1 left!

0

6

Honda 42961-VA4-000

PLATE, RR. ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

7

Honda 42992-VA4-000

SPRING, RR. BALANCER

$14.99

$

Usually ships in 3-6 days

0

8

Honda 90105-VA4-000

BOLT, ADJUSTER ARM

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

10

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, only 2 left!

0

11

Honda 90455-963-000

WASHER, SPRING

$

$

Not available

12

Honda 91055-VA4-K10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL

$6.99

$

In Stock, only 4 left!

0

12

Honda 91055-VA4-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL
(Superseded to 91055-VA4-K10)

$6.99

$

In Stock, only 4 left!

0
