HRA214 PXA# (HRA214) - Honda 21" Walk-Behind Mower, Made in USA (SN: HRA214-6000001 - HRA214-9999999) HRA214 HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in USA

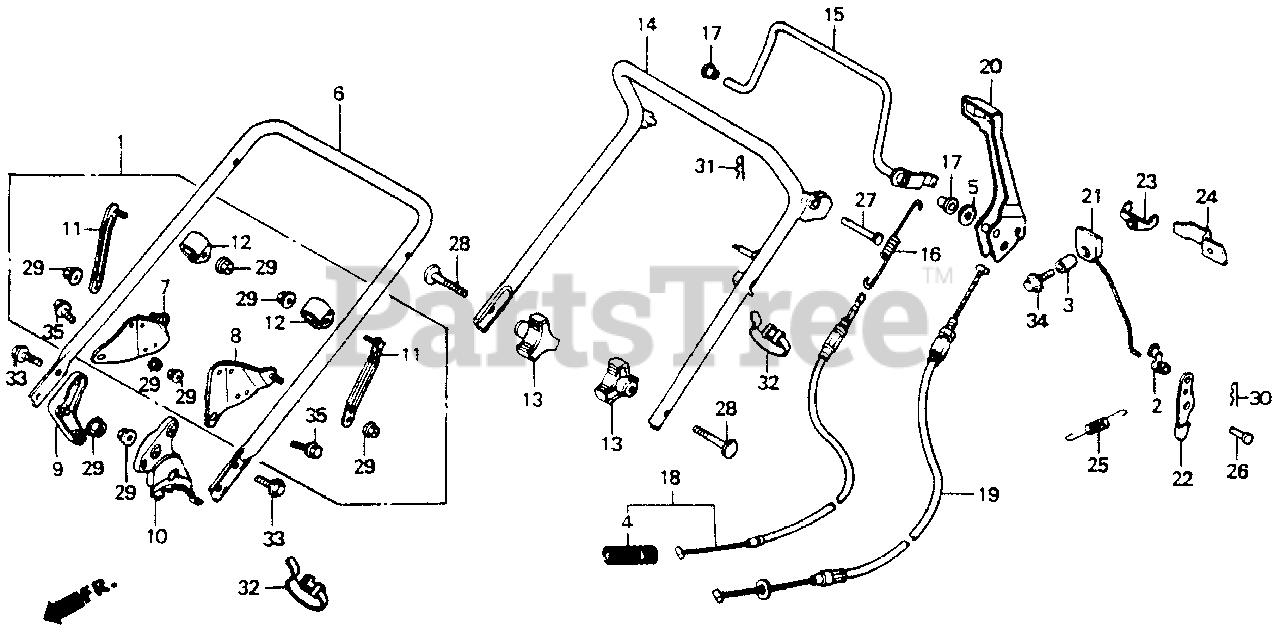

HRA214 HANDLEBAR Parts Diagram

  • Title

1

Honda 06531-VA4-020

SEE PART DETAILS - PRI; SUPPORT KIT, HANDLE

$86.99

$

Usually ships in 3-6 days

0

2

Honda 16956-892-000

JOINT, ROD

$7.99

$

In Stock, only 1 left!

0

3

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

5

Honda 47363-663-000

WASHER, EQUALIZER (NOT AVAILABLE)

$

$

Not available

6

Honda 53110-VB5-G01ZA

SEE PART DETAILS - PRI; PIPE, HANDLE (LOWER) *NH105* (MAT BLACK)

$171.99

$

Usually ships in 3-6 days

0

7

Honda 53113-VA4-020

SEE PART DETAILS - PRI; STAY, R. HANDLE SUPPORT

$32.99

$

Usually ships in 3-6 days

0

8

Honda 53114-VA4-020

SEE PART DETAILS - PRI; STAY, L. HANDLE SUPPORT

$32.99

$

Usually ships in 3-6 days

0

9

Honda 53115-VA4-000ZA

STAY, R. HANDLE *NH35M* (CLOUD SILVER METALLIC)

$39.99

$

Usually ships in 3-6 days

0

10

Honda 53116-VA4-000ZA

SEE PART DETAILS - PRI; STAY, L. HANDLE *NH35M* (CLOUD SILVER METALLIC)

$55.99

$

Usually ships in 3-6 days

0

11

Honda 53118-VA4-000

PLATE, HANDLE SUPPORT

$17.99

$

Usually ships in 3-6 days

0

12

Honda 53119-VA4-000

HANGER, HANDLE SUPPORT

$

$

Not available

13

Honda 53125-VA4-K10

SEE PART DETAILS - PRI; GRIP, HANDLE JOINT (UPPER)

$7.99

$

Usually ships in 3-6 days

0

14

Honda 53150-VA4-J00ZC

SEE PART DETAILS - PRI; PIPE, HANDLE (UPPER) *NH105* (MAT BLACK)

$60.99

$

Usually ships in 3-6 days

0

19

Honda 54530-VB3-802

SEE PART DETAILS - PRI; CABLE, ROTO-STOP

$32.99

$

In Stock, only 1 left!

0

20

Honda 75161-VA4-000

LEVER, ROTO-STOP

$

$

Not available

21

Honda 75165-VA4-000

ROD, RATCHET PUSH

$

$

Not available

22

Honda 75166-VA4-000

LEVER, LOCK

$

$

Not available

23

Honda 75167-VA4-000

PLATE, PUSH ROD

$

$

Not available

25

Honda 75168-VA4-000

SPRING, RATCHET RETURN

$4.49

$

In Stock, Qty 8

0

26

Honda 77203-425-000

PIN, SEAT HINGE

$5.49

$

Usually ships in 3-6 days

0

27

Honda 90106-VA4-000

PIN, CLUTCH LEVER

$10.99

$

Usually ships in 3-6 days

0

28

Honda 90109-VA4-000

BOLT, HANDLE HOLDER
(Superseded to 90113-V10-000)

$8.99

$

In Stock, Qty 19

0

29

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 20+

0

30

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 11

0

31

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

32

Honda 32901-VB5-800

TIE, CABLE

$3.49

$

In Stock, only 2 left!

0

33

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0

35

Honda 95701-08018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18)

$2.49

$

Usually ships in 3-6 days

0
