HRA214 PXA# (HRA214) - Honda 21" Walk-Behind Mower, Made in USA (SN: HRA214-6000001 - HRA214-9999999) HRA214 FRONT WHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

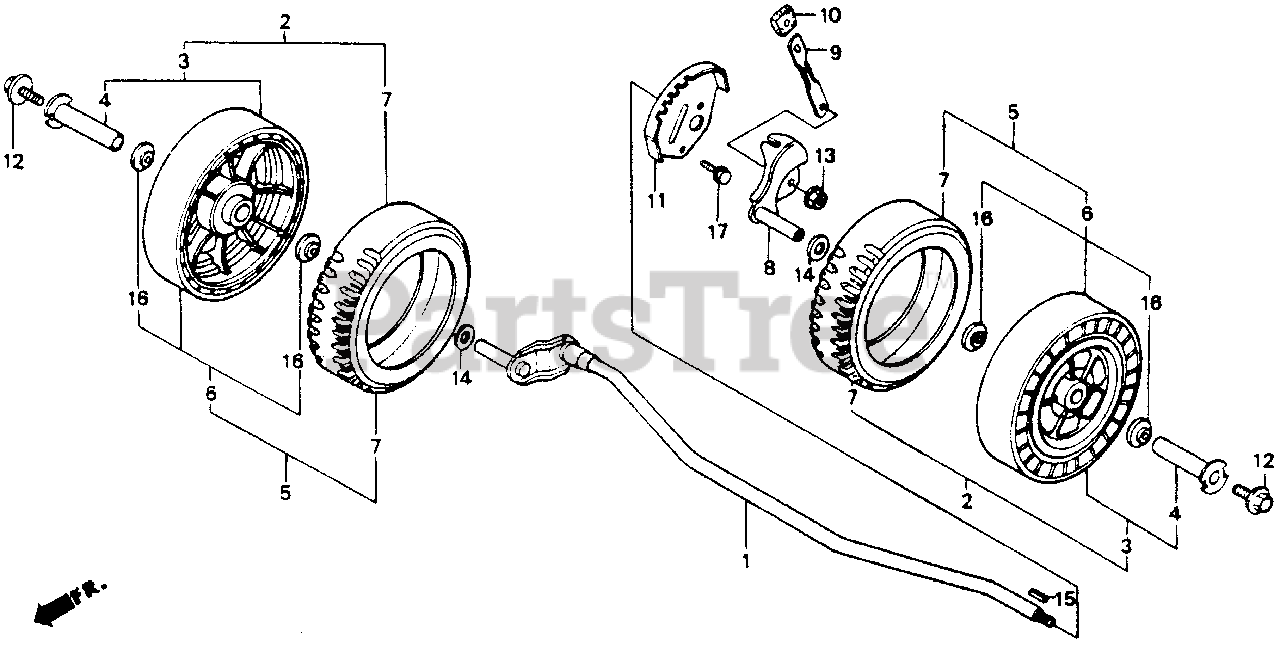

HRA214 FRONT WHEEL Parts Diagram

  • Title

1

Honda 42610-VA4-000

SHAFT, FR. AXLE

$

$

Not available

5

Honda 42710-VA3-J00

SEE PART DETAILS - PRI; WHEEL (8") *NH31* (MCKINLEY WHITE)

$38.99

$

Usually ships in 3-6 days

0

6

Honda 42812-VA4-003

HUB, WHEEL (NA USE ALT:42710-VA3-J00)

$

$

Not available

7

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

In Stock, only 4 left!

0

8

Honda 42920-VA4-000

ARM, L. FR. ADJUSTER

$

$

Not available

9

Honda 42951-VA4-000

PLATE, FR. ADJUSTER

$18.99

$

Usually ships in 3-6 days

0

10

Honda 42952-VA4-000

GRIP, ADJUSTER

$5.49

$

In Stock, only 1 left!

0

11

Honda 42981-VA4-000

PANEL, FR. ADJUSTER

$19.99

$

Usually ships in 3-6 days

0

12

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 17

0

13

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 6

0

14

Honda 90455-VA2-000

WASHER, WHEEL

$4.49

$

In Stock, Qty 20+

0

15

Honda 90746-VA4-000

KEY (4X4X11)

$

$

Not available

16

Honda 91055-VA4-K10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL

$7.49

$

In Stock, only 4 left!

0

16

Honda 91055-VA4-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL
(Superseded to 91055-VA4-K10)

$7.49

$

In Stock, only 4 left!

0

17

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
