HRA21 SDAW (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) REAR WHEEL + RATCHET HOLDER Parts Diagram

21" Walk-Behind Mower, Made in Japan

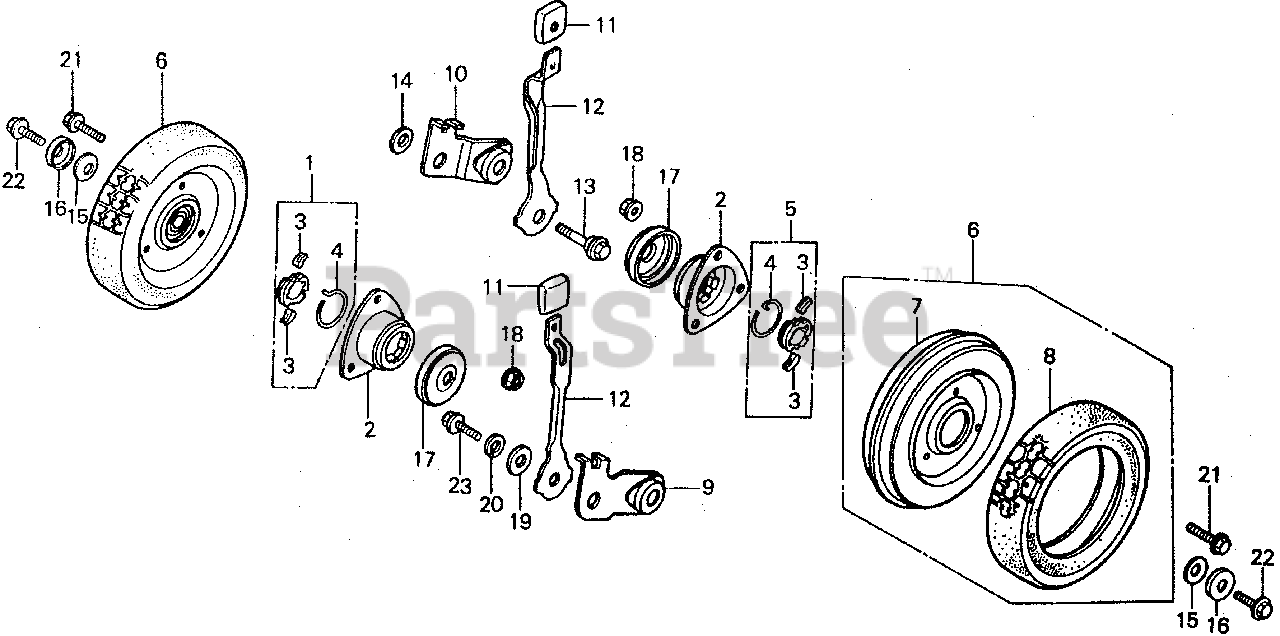

REAR WHEEL + RATCHET HOLDER Parts Diagram

  • Title
1

Honda 23510-963-010

HOLDER, R. RATCHET

$28.99

$

Usually ships in 3-6 days

0

2

Honda 23511-963-000

RECEIVER, RATCHET

$20.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

4

Honda 23514-963-000

SPRING, RATCHET RETURN

$4.49

$

Usually ships in 3-6 days

0

5

Honda 23520-963-010

HOLDER, L. RATCHET

$27.99

$

Usually ships in 3-6 days

0

6

Honda 42810-963-000

WHEEL (NA USE ALT:06427-960-305)

$

$

Not available

7

Honda 42820-963-000

WHEEL, RR. (NOT AVAILABLE)

$51.99

$

Usually ships in 3-6 days

0

8

Honda 42861-963-000

TIRE (8X1.57)

$33.99

$

Usually ships in 3-6 days

0

9

Honda 42931-963-000

ARM, R. RR. ADJUSTING (NOT AVAILABLE)

$

$

Not available

10

Honda 42941-963-000

ARM, L. RR. ADJUSTING (NOT AVAILABLE)

$

$

Not available

11

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

12

Honda 42962-963-000

PLATE, RR. ADJUSTING

$13.99

$

Usually ships in 3-6 days

0

13

Honda 90103-952-000

BOLT, RR. ADJUSTING ARM

$5.49

$

In Stock, only 1 left!

0

14

Honda 90411-706-000

WASHER (10MM) (NOT AVAILABLE)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90455-963-000

WASHER, WHEEL

Note: Use up to Frame SN 1008013.

$

$

Not available

16

Honda 90535-292-000

WASHER, HANDLE CUSHION

Note: Use from Frame SN 1008014.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 91201-963-003

DUST SEAL (NOT AVAILABLE)

$

$

Not available

18

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, Qty 5

0

23

Honda 95700-08016-00

BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
