HRA21 SDAW (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) FLYWHEEL + IGNITION COIL Parts Diagram

21" Walk-Behind Mower, Made in Japan

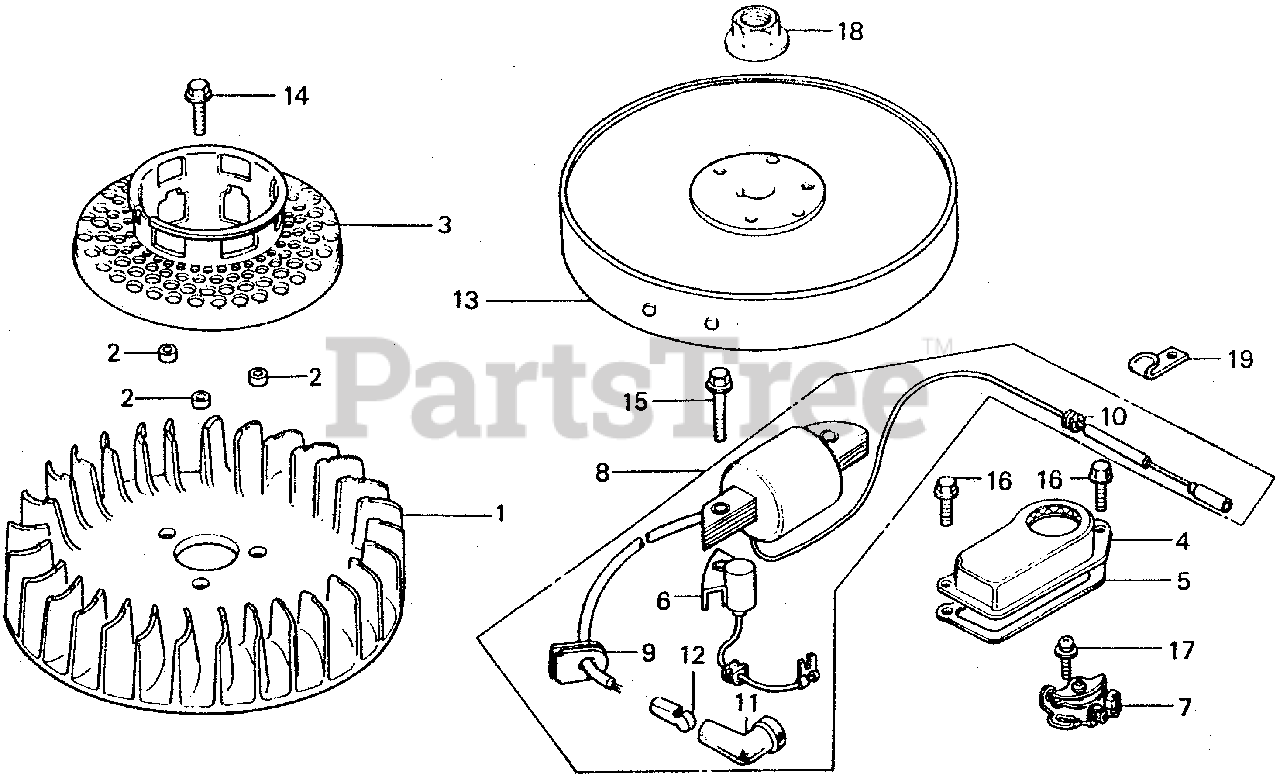

FLYWHEEL + IGNITION COIL Parts Diagram

  • Title
1

Honda 19511-887-030

FAN, COOLING

$

$

Not available

2

Honda 19512-883-000

COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-887-020

SEE PART DETAILS - SUP; PULLEY, STARTER
(Superseded to 28451-887-030)

$30.99

$

Usually ships in 3-6 days

0

3

Honda 28451-887-030

SEE PART DETAILS - PRI; PULLEY, STARTER

$30.99

$

Usually ships in 3-6 days

0

4

Honda 30211-883-000

COVER, BREAKER

$

$

Not available

5

Honda 30215-883-000

GASKET, BREAKER COVER (NOT AVAILABLE)

$

$

Currently unavailable

6

$21.99

$

Usually ships in 3-6 days

0

7

Honda 30280-883-005

POINTS ASSY.

$33.99

$

Usually ships in 3-6 days

0

8

Honda 30560-888-025

COIL ASSY., IGNITION

$

$

Currently unavailable

8

Honda 30560-888-035

COIL ASSY., IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30563-883-000

GROMMET, WIRE

$

$

Currently unavailable

10

Honda 30569-888-000

GROMMET, PRIMARY WIRE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 30701-888-003

CAP, IGNITION
(Superseded to 30701-888-014)

$

$

Not available

11

Honda 30701-888-004

CAP, IGNITION (TOYO)
(Superseded to 30701-888-014)

$

$

Not available

12

Honda 30702-888-003

TERMINAL, PLUG

$9.49

$

Usually ships in 3-6 days

0

13

Honda 31100-883-040

FLYWHEEL (POINT)

$104.99

$

Usually ships in 3-6 days

0

14

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

15

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 1 left!

0

16

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 91405-671-000

CLIP, WIRE

$12.99

$

Usually ships in 3-6 days

0
