HRA21 SDAW (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

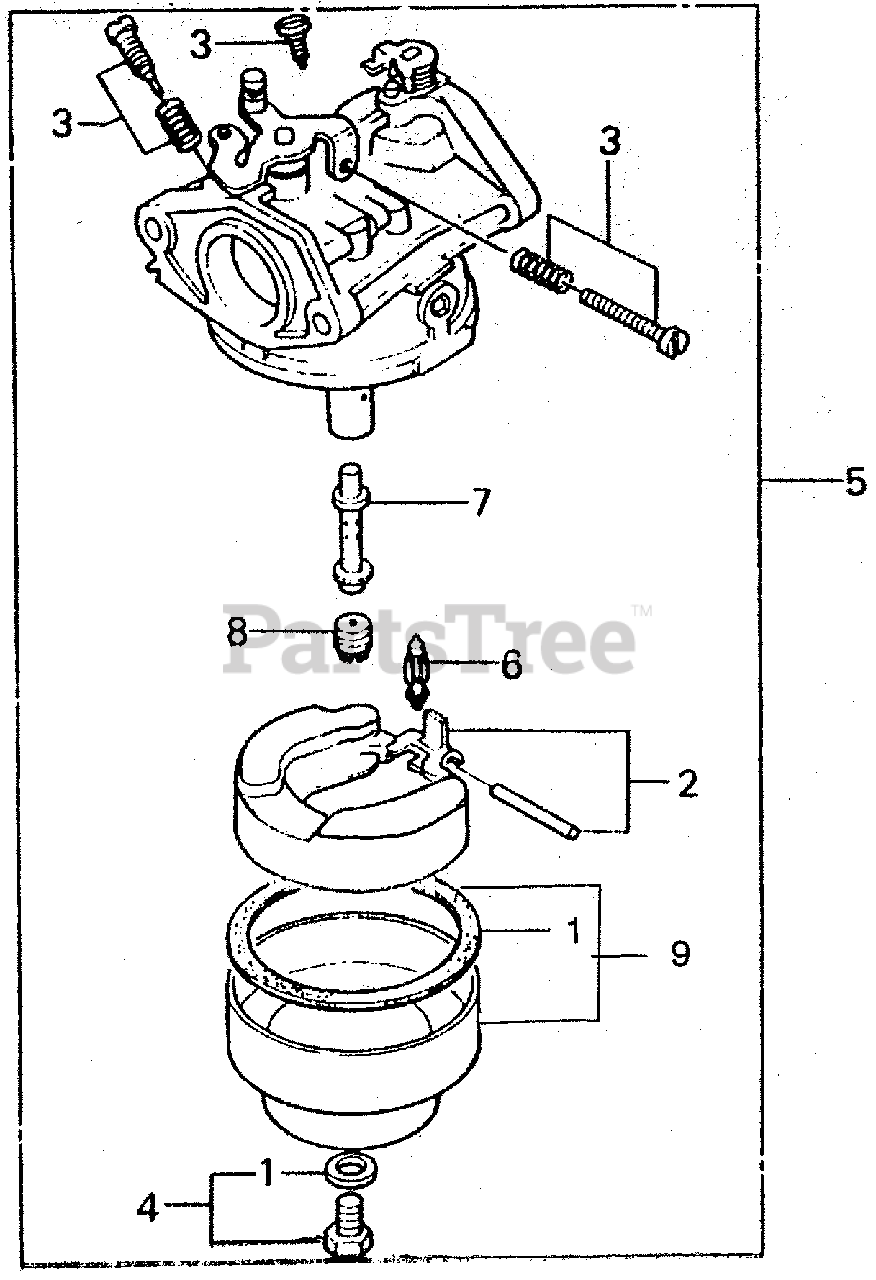

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Use up to Engine SN BB27A D.

$14.99

$

In Stock, Qty 20+

0

1

Honda 16010-883-015

GASKET SET

Note: Use from Engine SN BB27A E.

$14.99

$

In Stock, Qty 20+

0

2

Honda 16013-883-005

FLOAT SET

$41.99

$

In Stock, only 1 left!

0

3

Honda 16016-888-005

SCREW SET A

Note: Use up to Engine SN BB27A D.

$20.99

$

Usually ships in 3-6 days

0

3

Honda 16016-894-005

SCREW SET A (NOT AVAILABLE)

Note: Use from Engine SN BB27A E.

$

$

Currently unavailable

4

Honda 16028-883-005

SCREW SET B

$

$

Not available

5

Honda 16100-888-065

CARBURETOR ASSY. (BB27A E)
(Superseded to 16100-888-075)

$

$

Not available

6

Honda 16155-883-005

VALVE, FLOAT

$28.99

$

Usually ships in 3-6 days

0

7

Honda 16166-888-005

NOZZLE, MAIN

$

$

Not available

8

Honda 99101-124-0600

JET, MAIN (#60)

Note: (Optional).

$13.99

$

In Stock, Qty 5

0

8

Honda 99101-124-0620

JET, MAIN (#62)

Note: (Optional).

$12.99

$

In Stock, only 2 left!

0

8

Honda 99101-124-0650

JET, MAIN (#65)

$13.99

$

In Stock, only 2 left!

0

9

Honda 16015-891-003

CHAMBER SET, FLOAT

Note: Use from Engine SN BB27A E.

$

$

Currently unavailable

9

Honda 16015-896-701

CHAMBER SET, FLOAT (NOT AVAILABLE)

Note: Use up to Engine SN BB27A D.

$

$

Currently unavailable
