HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) THROTTLE LEVER@CONTROL COVER Parts Diagram

21" Walk-Behind Mower, Made in Japan

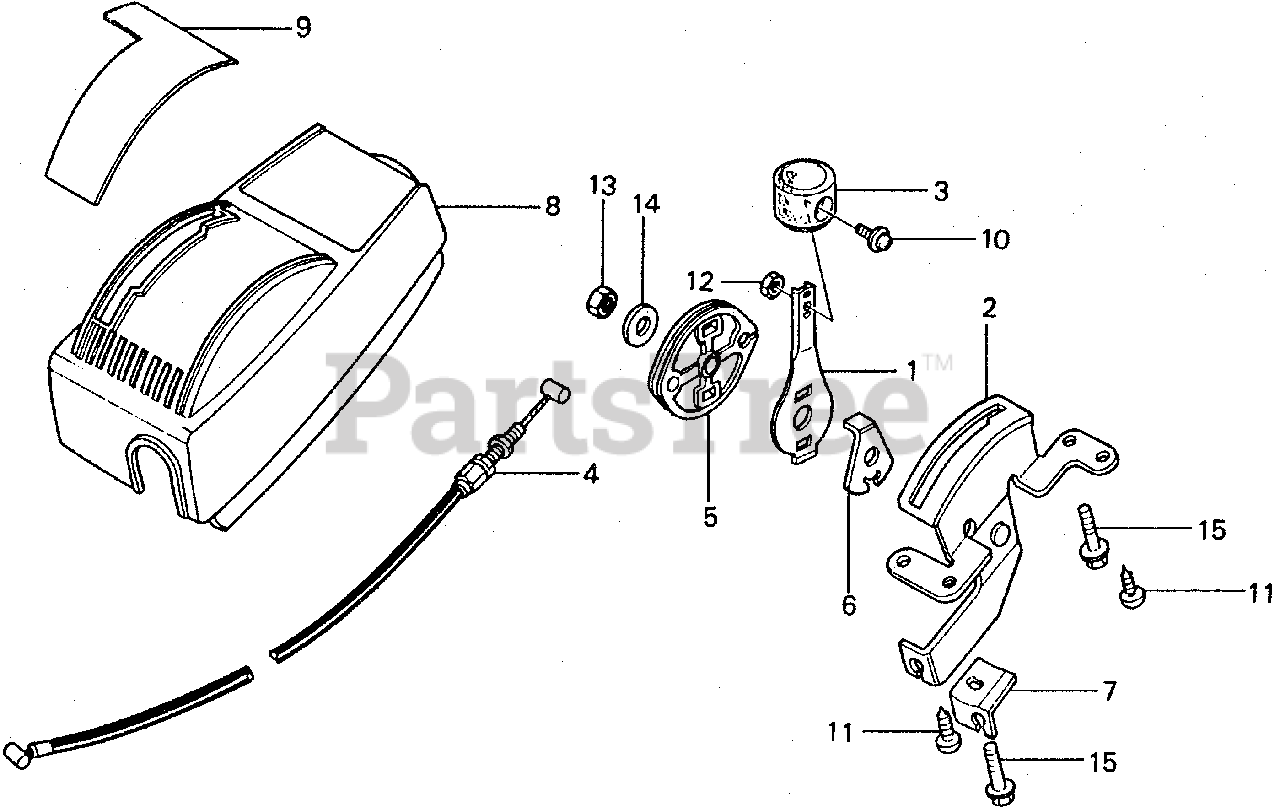

THROTTLE LEVER@CONTROL COVER Parts Diagram

  • Title

1

Honda 17851-952-010

SEE PART DETAILS - SUP; LEVER, THROTTLE
(Superseded to 17851-750-000)

$

$

Not available

2

Honda 17854-952-010

BASE, THROTTLE LEVER

$

$

Not available

3

Honda 17856-952-000

KNOB, THROTTLE LEVER

$5.99

$

Usually ships in 3-6 days

0

4

Honda 17910-963-000

CABLE, THROTTLE

$22.99

$

Usually ships in 3-6 days

0

5

Honda 54226-952-000

REEL, CONTROL CABLE

$10.99

$

Usually ships in 3-6 days

0

6

Honda 54227-952-010

STOPPER, REEL

$7.99

$

Usually ships in 3-6 days

0

7

Honda 54228-952-010

STAY, CABLE

$

$

Not available

8

Honda 54231-952-010

COVER, CONTROL

$

$

Not available

9

Honda 87502-963-640

MARK, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 93892-04008-07

SCREW-WASHER (4X8)

$1.49

$

In Stock, only 4 left!

0

11

Honda 93901-35210

SCREW, TAPPING (5X12)

$0.99

$

In Stock, Qty 6

0

12

Honda 94001-04000-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0209684).

$1.49

$

In Stock, only 1 left!

0

13

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

13

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

14

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

15

Honda 95801-06032-00

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0
